Bale clamp classic

Capacity: from 1200 kg to 1800 kg	Width: 1090 mm
Overall weight: 235 kg	Teeth: 2

The Bale Clamp Classic is built for demanding agricultural operations requiring safe, controlled and efficient bale handling. With a lifting capacity from 1200 to 1800 kg, it ensures strong and stable performance during loading, stacking and transport. The synchronized arm system distributes pressure evenly to protect bale shape and wrapping, reducing material loss. Its 2-tooth configuration allows secure handling of both round and rectangular bales. The robust 235 kg construction and compact 1090 mm width provide durability, balance and reliable daily productivity on any farm.

TECHNICAL CHARACTERISTICS

2×4 or 2×3 teeth.
Synchronized closure.
Excellent lifting capacity of 1000 kg / 2205 lb or 1200 kg / 2646 lb at 800 mm / 31 lb.
Handles 1 round bales Ø 1,8 m / 6 ft max. for the 2×4 and Ø 1,5 m / 5 ft to 2 m / 7 ft for the 2×3.
Handles 2 rectangular bales of maximum 0,8 m / 3 ft high per bale.

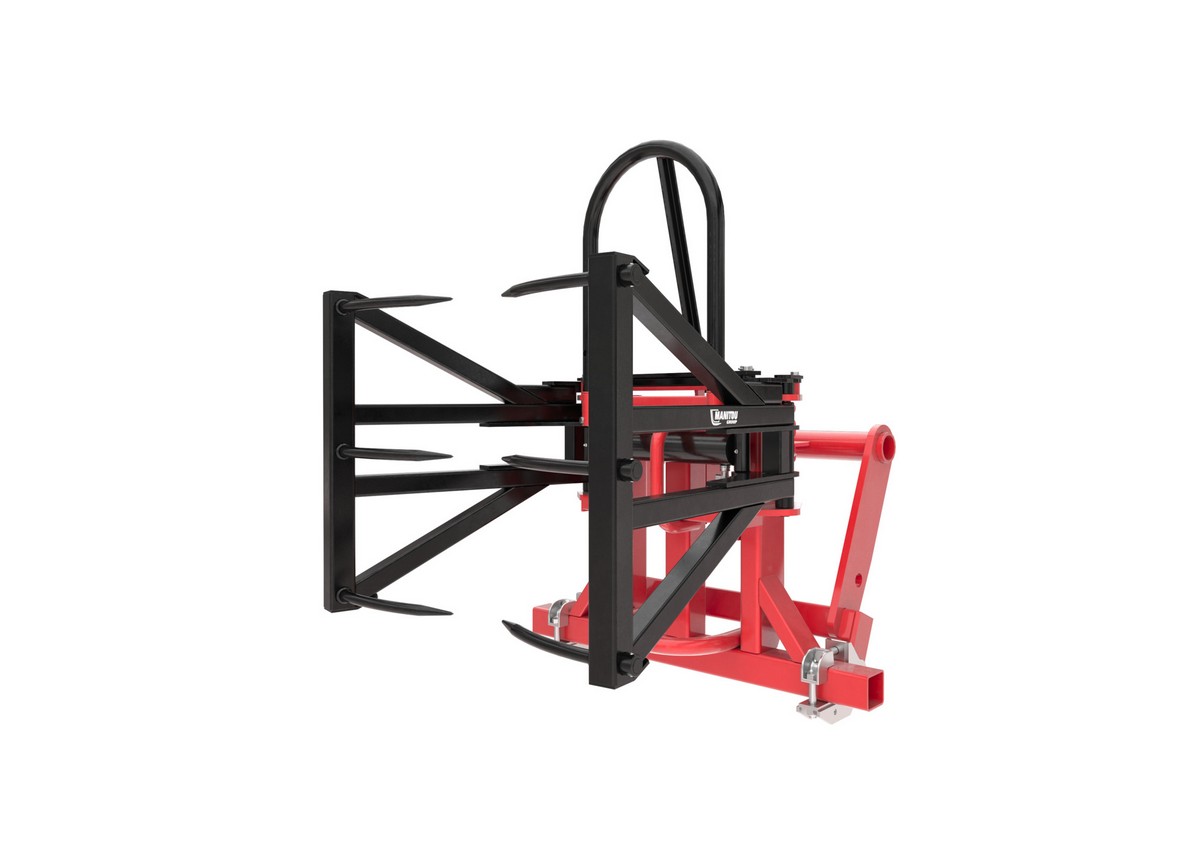

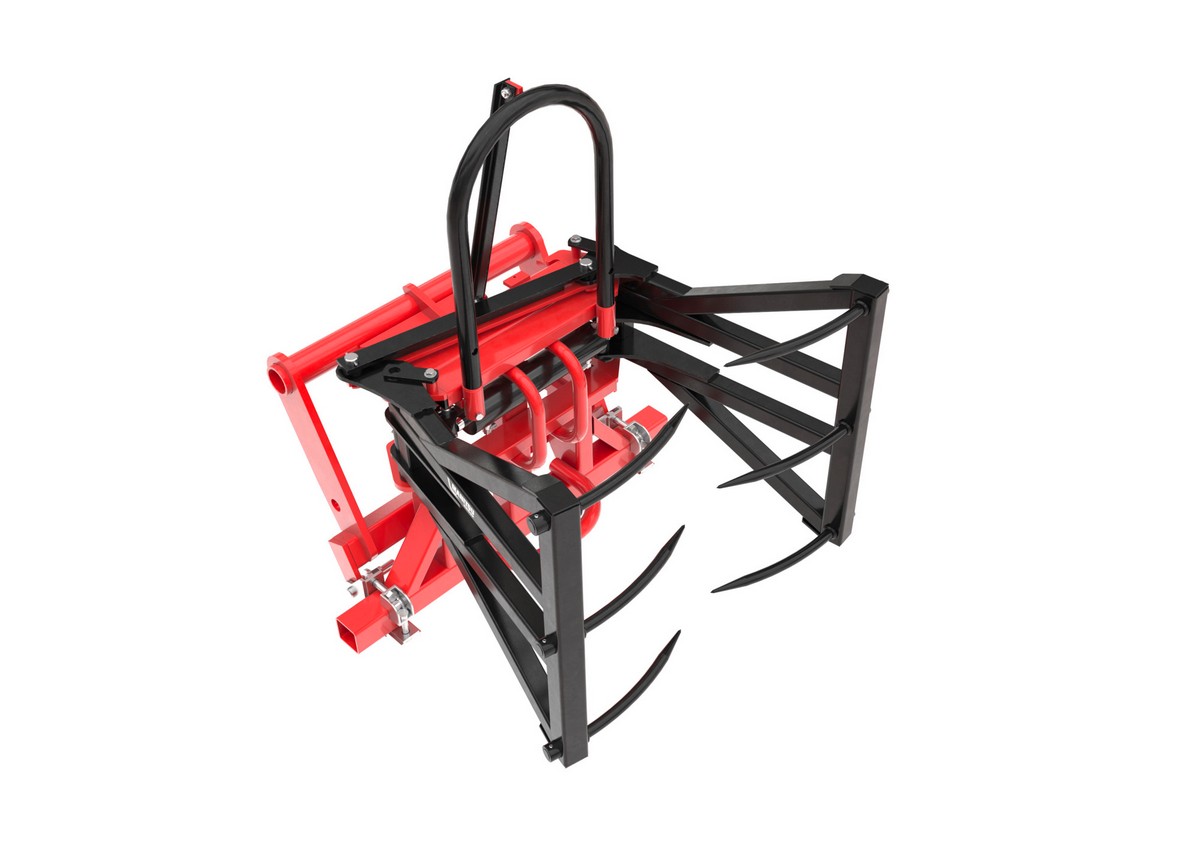

[The 3D picture at the top of this page is the reference CLBR 2×3 – 52001013].

CUSTOMER BENEFITS

Easy to use and efficient attachment.
Handles 1 round bale or 2 rectangular bales at the same time.
Rounded teeth in wrought iron that offer an accurate and clean penetration on materials.
Optional: 2 lower teeth (680 mm / 27 in, Ø 35 mm / 1 in) that ensure a perfect stability while handling rectangular bales.
