<a style="text-decoration: none;font-weight: bold;font-size: 16px;color: red" href="https://euroliftmaster.com/wp-content/uploads/2026/02/Cylinder-Handler.pdf" target="_blank" rel="noopener">
Download Technical Sheet <span style="font-size: 24px;font-weight: bold;color: inherit">↓</span>
</a>
<table style="width:100%;border:1px solid #e5e5e5;border-collapse:collapse">
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Capacity:</strong> from 4000 kg to 10500 kg
</td>
<td style="width:50%;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Minimum diameter:</strong> from 230 mm to 250 mm
</td>
</tr>
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Width:</strong> from 1470 mm to 1780 mm
</td>
<td style="width:50%;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Overall weight:</strong> from 1850 kg to 3400 kg
</td>
</tr>
</table>
<div style="font-family: Arial, sans-serif;line-height:1.6;font-size:15px;color:#333">
<p>
The Cylinder Handler is engineered for heavy-duty mining applications, handling cylinders from 230–250 mm up to 10,500 kg. Featuring hydraulic body rotation, side shift, and telescopic extension, it adapts to various cylinder sizes with cables or clamps. Advanced safety includes clamping pressure alarms, gauges, and adjustable reduction pads. With widths from 1,470–1,780 mm and overall weight up to 3,400 kg, this handler ensures precise, secure, and efficient movement of heavy cylinders, boosting productivity in demanding industrial environments.
</p>
</div>
Read more
<a style="text-decoration: none;font-weight: bold;font-size: 16px;color: red" href="https://euroliftmaster.com/wp-content/uploads/2026/02/Pipe-Handler.pdf" target="_blank" rel="noopener">
Download Technical Sheet <span style="font-size: 24px;font-weight: bold;color: inherit">↓</span>
</a>
<table style="width:100%;border:1px solid #e5e5e5;border-collapse:collapse">
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Capacity:</strong> from 8000 kg to 14000 kg
</td>
<td style="width:50%;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Minimum diameter:</strong> 80 mm
</td>
</tr>
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Width:</strong> from 2115 mm to 2444 mm
</td>
<td style="width:50%;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Overall weight:</strong> from 2200 kg to 3800 kg
</td>
</tr>
</table>
<div style="font-family: Arial, sans-serif;line-height:1.6;font-size:15px;color:#333">
<p>

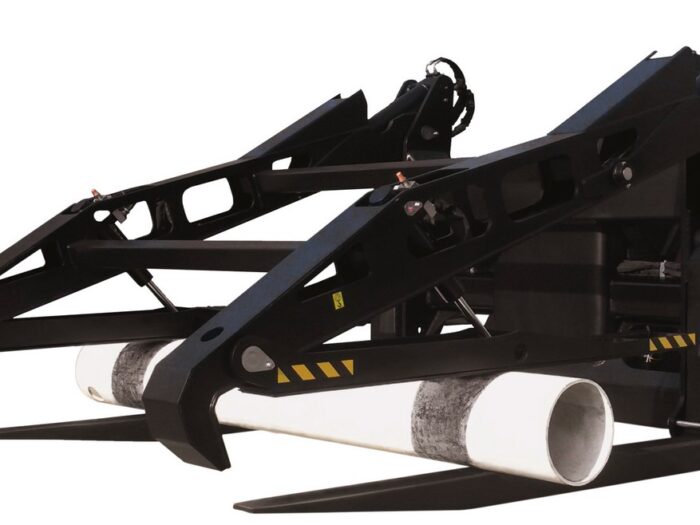

The Pipe Handler is built for heavy-duty mining tasks, handling pipes up to 14,000 kg and 1,016 mm diameter. Its complete grapple opening and rubber-covered tine pads ensure secure, efficient loading, while forks can operate in floating or fixed mode for versatility. Designed with enhanced component protection to minimize downtime, it spans widths from 2,115–2,444 mm and weighs up to 3,800 kg. This handler delivers precise, safe, and reliable performance for demanding pipe handling and material transport applications.
</p>
</div>
Read more
<a style="text-decoration: none;font-weight: bold;font-size: 16px;color: red" href="https://euroliftmaster.com/wp-content/uploads/2026/02/Slim-Tyre-Handler.pdf" target="_blank" rel="noopener">
Download Technical Sheet <span style="font-size: 24px;font-weight: bold;color: inherit">↓</span>
</a>
<table style="width:100%;border:1px solid #e5e5e5;border-collapse:collapse">
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Capacity:</strong> from 2000 kg to 2900 kg
</td>
<td style="width:50%;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Minimum diameter:</strong> from 480 mm to 650 mm
</td>
</tr>
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Width:</strong> from 1360 mm to 1650 mm
</td>
<td style="width:50%;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Overall weight:</strong> from 1160 kg to 1345 kg
</td>
</tr>
</table>
<div style="font-family: Arial, sans-serif;line-height:1.6;font-size:15px;color:#333">
<p>

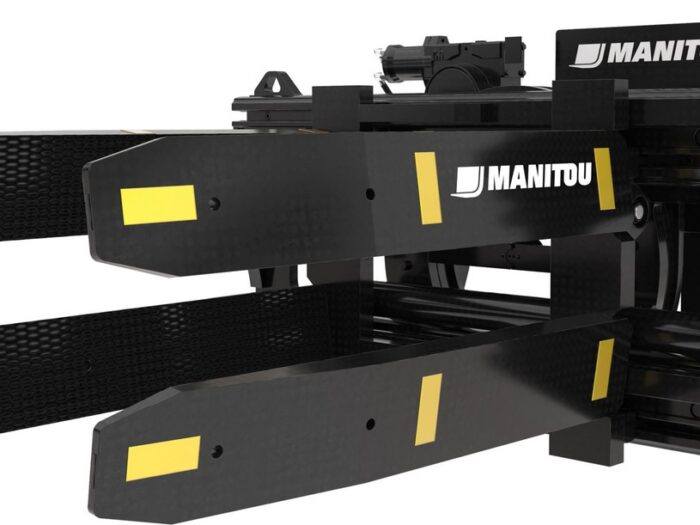

The Slim Tyre Handler is designed for precise and safe handling of tyres up to 2,900 kg and diameters from 480–650 mm. Its thin 93 mm forks, ±360° rotation, and ±100 mm side shift keep loads stable and close to the telehandler’s center of gravity. Compact and versatile, it can be operated from the cab or remotely, offering efficient handling for various tyre types. With widths from 1,360–1,650 mm and lightweight construction, this handler combines control, safety, and productivity for mining and industrial applications.
</p>
</div>
Read more
<a style="text-decoration: none;font-weight: bold;font-size: 16px;color: red" href="https://euroliftmaster.com/wp-content/uploads/2026/02/Tunneling-Platform.pdf" target="_blank" rel="noopener">
Download Technical Sheet <span style="font-size: 24px;font-weight: bold;color: inherit">↓</span>
</a>
<table style="width:100%;border:1px solid #e5e5e5;border-collapse:collapse">
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Capacity:</strong> 1000 kg
</td>
<td style="width:50%;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Width:</strong> 1990 mm
</td>
</tr>
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Overall weight:</strong> 730 kg
</td>
<td style="width:50%;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Overall length:</strong> 2175 mm
</td>
</tr>
</table>
<div style="font-family: Arial, sans-serif;line-height:1.6;font-size:15px;color:#333">
<p>
The Tunneling Platform offers safe and efficient elevated work with a 1,000 kg capacity. Its FOPS-type roof and +300 mm elevated position protect operators while the 90° rotation on both sides allows precise alignment. Designed with a sliding bar access and fork sleeves for easy handling, it spans 1,990 mm width and 2,175 mm length. Lightweight at 730 kg, this platform ensures stability, safety, and smooth operation for tunneling and confined-space tasks, enhancing productivity in mining and industrial environments.
</p>
</div>
Read more
<a style="text-decoration: none;font-weight: bold;font-size: 16px;color: red" href="https://euroliftmaster.com/wp-content/uploads/2026/02/Tyre-Handler.pdf" target="_blank" rel="noopener">
Download Technical Sheet <span style="font-size: 24px;font-weight: bold;color: inherit">↓</span>
</a>
<table style="width:100%;border:1px solid #e5e5e5;border-collapse:collapse">
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Capacity:</strong> from 2500 kg to 12000 kg
</td>
<td style="width:50%;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Minimum diameter:</strong> from 600 mm to 1300 mm
</td>
</tr>
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Width:</strong> from 1951 mm to 3224 mm
</td>
<td style="width:50%;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Overall weight:</strong> from 1500 kg to 5260 kg
</td>
</tr>
</table>
<div style="font-family: Arial, sans-serif;line-height:1.6;font-size:15px;color:#333">
<p>
The Tyre Handler provides safe, efficient tyre handling for mining operations, supporting 2,500–12,000 kg and diameters from 600–1,300 mm. Its advanced hydraulics enable body and pad rotation, side shift, machine tilt, and telescopic extension for precise positioning. Equipped with anti-fall arms and controlled via cab or remote, each movement requires dual operator action for maximum safety. With telescopic or parallelogram kinematics depending on the model, it delivers reliable, controlled, and productive handling of large mining tyres.
</p>
</div>
Read more
<a style="text-decoration: none;font-weight: bold;font-size: 16px;color: red" href="https://euroliftmaster.com/wp-content/uploads/2026/02/Underground-Mining-Platform.pdf" target="_blank" rel="noopener">
Download Technical Sheet <span style="font-size: 24px;font-weight: bold;color: inherit">↓</span>
</a>
<table style="width:100%;border:1px solid #e5e5e5;border-collapse:collapse">
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Width:</strong> 2000 mm
</td>
<td style="width:50%;border-bottom:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Overall weight:</strong> 1150 kg
</td>
</tr>
<tr>
<td style="width:50%;border-right:1px solid #e5e5e5;padding:16px 12px;text-align:center;vertical-align:middle">
<strong>Overall height:</strong> 1922 mm
</td>
<td style="width:50%;padding:16px 12px;text-align:center;vertical-align:middle">
<strong> </strong>
</td>
</tr>
</table>
<div style="font-family: Arial, sans-serif;line-height:1.6;font-size:15px;color:#333">
<p>

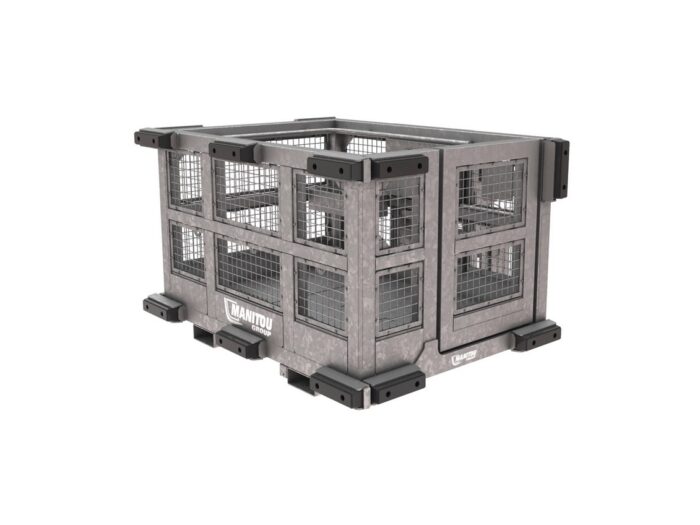

The Underground Mining Platform offers a robust, shielded structure with multiple protective bumpers, ensuring safety for up to 3 operators. With a width of 2,000 mm, height of 1,922 mm, and lightweight 1,150 kg design, it fits confined underground spaces. Available with plain or meshed flooring, this platform provides secure footing and stable operation, delivering reliable performance for mining tasks while protecting personnel in challenging subterranean environments.
</p>
</div>
Read more
