Cylinder Handler

Cylinder Handler
Cylinder Handler - Image 2
Cylinder Handler - Image 3
Cylinder Handler - Image 4

Cylinder Handler

Call for price


Download Technical Sheet ↓

Capacity: from 4000 kg to 10500 kg Minimum diameter: from 230 mm to 250 mm
Width: from 1470 mm to 1780 mm Overall weight: from 1850 kg to 3400 kg

The Cylinder Handler is engineered for heavy-duty mining applications, handling cylinders from 230–250 mm up to 10,500 kg. Featuring hydraulic body rotation, side shift, and telescopic extension, it adapts to various cylinder sizes with cables or clamps. Advanced safety includes clamping pressure alarms, gauges, and adjustable reduction pads. With widths from 1,470–1,780 mm and overall weight up to 3,400 kg, this handler ensures precise, secure, and efficient movement of heavy cylinders, boosting productivity in demanding industrial environments.

Categories: ,

TECHNICAL CHARACTERISTICS

  • For cylinders with diameter from 0 mm to 630 mm / 25 in.
  • Maximum capacity up to 10500 kg / 23153 lb.
  • Cylinder holding with cables (CH 4) or clamps (CH 10).
  • Hydraulic movements: body rotation, side shift.

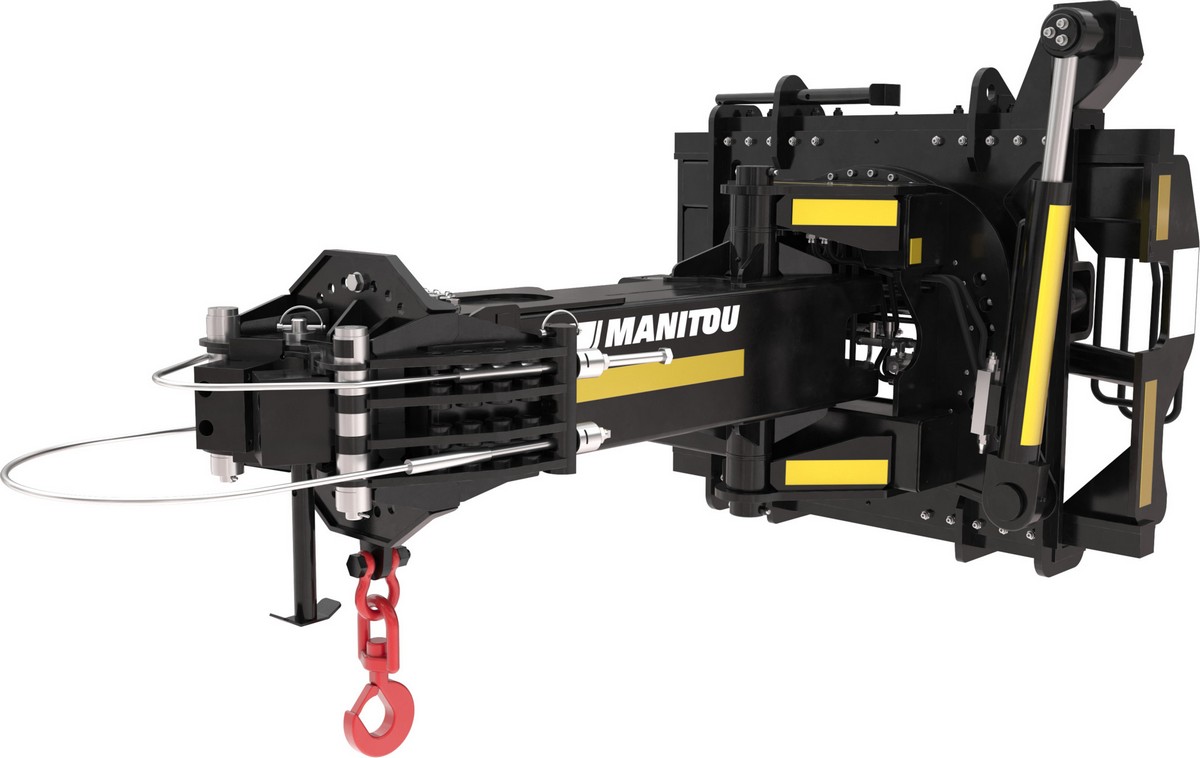

  • CH4: Body rotation 22.5°, side shift 150 mm / 6 in, hydraulic telescopic extension, hydraulic side body tilt 15°/15°, head rotation 35°.

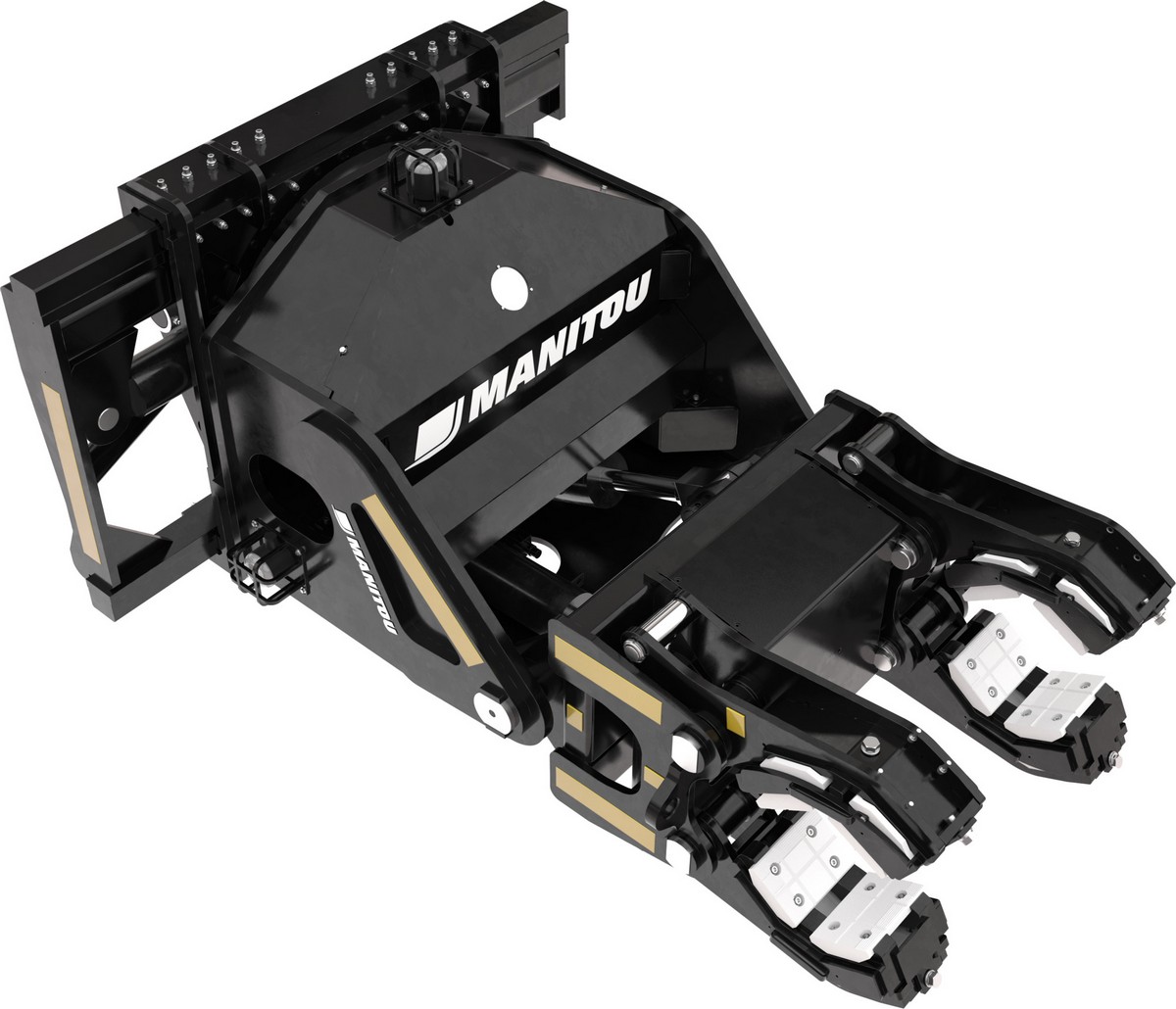

  • CH10: body rotation 340°, head vertical tilt 90°.
  • CH10: clamping pressure alarm & pressure gauge on each front & side.
  • Clamp reduction pads for smaller cylinders.
  • Capacity (kg): 4000 (CH4) / 10500 (CH10).
  • Overall weight (kg): 1850 (CH4) / 3400 (CH10).
  • Maximum outreach (mm): 2221 (CH4) / 2500 (CH10).
  • Overall height (mm): 1360 (CH4) / 1195 (CH10).
  • Overall length (mm): 2249 (CH4) / 2525 (CH10).
  • Width (mm): 1470 (CH4) / 1780 (CH10).
  • Minimum / Maximum diameter (mm): 250 / 530 (CH4) – 230 / 640 (CH10).
  • Rotation 1 (°): 22.5 (CH4) / 340 (CH10).
  • Rotation 2 (°): 35 (CH4) / 90 (CH10).

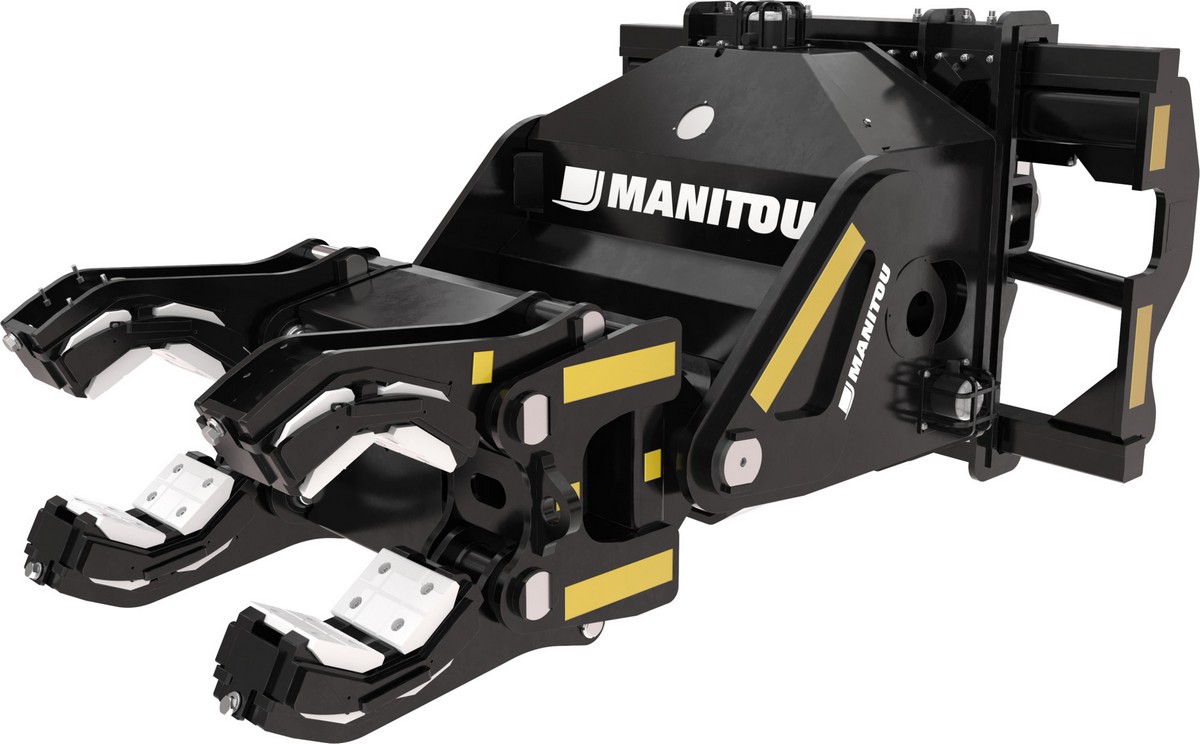

  • [The 3D picture at the top of this page is the reference CH10 – 939239].

CUSTOMER BENEFITS

  • Efficient & safe cylinder handling solutions.
  • Faster, safer maintenance leading to less production losses.
  • Robust conception designed for mining sites conditions.
  • Safety & Productivity: smooth and accurate cylinder catching and positioning.
  • Permanent cylinder grip: no suspended load, no risk of sudden slippage or fall.
  • As functional as a human wrist.

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
