Tyre Handler

Tyre Handler
Tyre Handler - Image 2
Tyre Handler - Image 3
Tyre Handler - Image 4
Tyre Handler - Image 5

Tyre Handler

Call for price


Download Technical Sheet ↓

Capacity: from 2500 kg to 12000 kg Minimum diameter: from 600 mm to 1300 mm
Width: from 1951 mm to 3224 mm Overall weight: from 1500 kg to 5260 kg

The Tyre Handler provides safe, efficient tyre handling for mining operations, supporting 2,500–12,000 kg and diameters from 600–1,300 mm. Its advanced hydraulics enable body and pad rotation, side shift, machine tilt, and telescopic extension for precise positioning. Equipped with anti-fall arms and controlled via cab or remote, each movement requires dual operator action for maximum safety. With telescopic or parallelogram kinematics depending on the model, it delivers reliable, controlled, and productive handling of large mining tyres.

Categories: ,

TECHNICAL CHARACTERISTICS

  • Safe solution for tyre removal in mining environments.
  • Complex hydraulic movements: body rotation, pad rotation, side shift + machine tilt & telescope extension.
  • Safety: anti-fall arms.
  • Telescopic (TH 49) or parallelogram kinematics (all other clamps).
  • Controlled from the cab or with a remote control.
  • Safety: each movement activated by 2 operator actions (button + joystick).
  • TH 49 / 2500: 1 left pad active, right pad passive.
  • Capacity (kg): 2500 / 3500 / 6000 / 12000 depending on version.
  • Overall weight (kg): 1500 / 3300 / 4300 / 5260 depending on version.
  • Maximum outreach (mm): 1903 / 2610 / 2991 / 3837 depending on version.
  • Minimum diameter / Maximum diameter (mm): 1200 / 3100 – 1200 / 3400 – 1300 / 3800 – 600 / 4200 depending on version.
  • Rotation 1 (°): 20 / 35 / 172 / 172 depending on version.
  • Rotation 2 (°): 120 / 120 / 360 / 360 depending on version.
  • Minimum opening (mm): 1146 / 1128 / 1218 / 549 depending on version.
  • Maximum opening (mm): 3146 / 3416 / 3831 / 4286 depending on version.

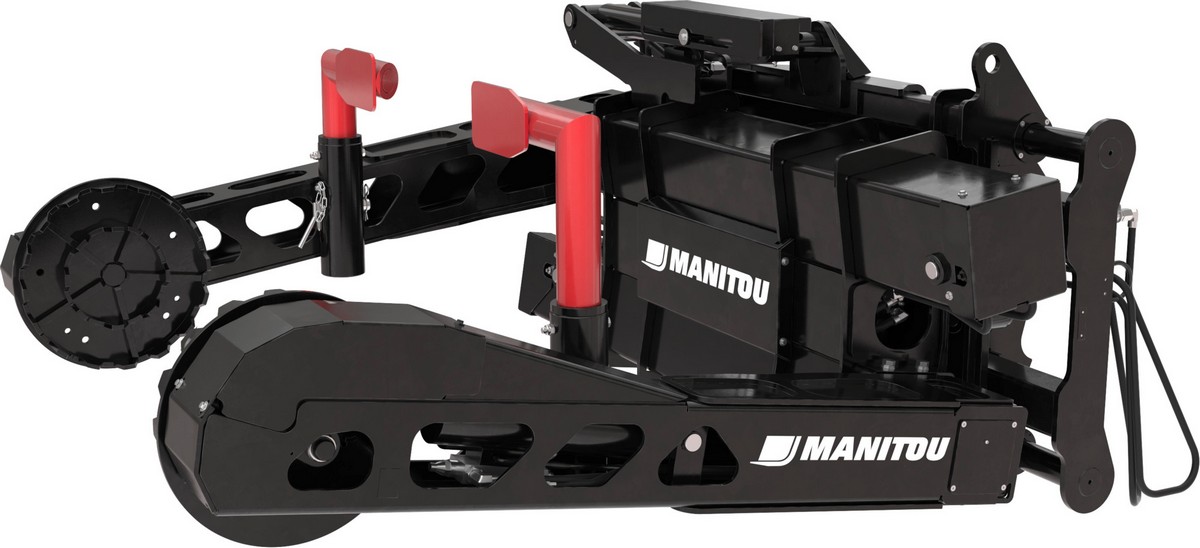

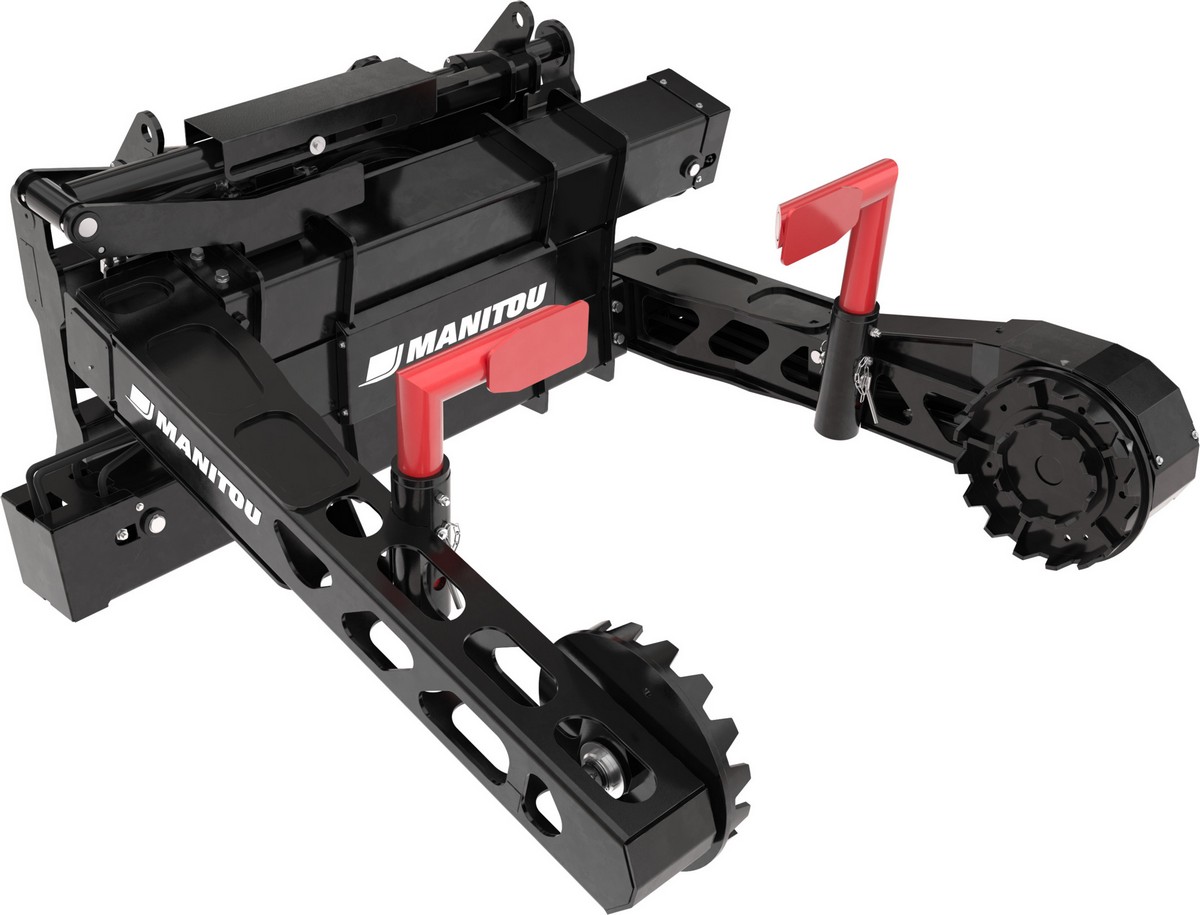

  • [The 3D picture at the top of this page is the reference TH 49 / 2500 – 914600].

CUSTOMER BENEFITS

  • Tyre changes made fast & safe.
  • Significant improvement in tyre changing operations.
  • No compromise with safety.
  • As mobile as a human wrist.
  • Wide range of diametres & capacities to suit all dump truck.
  • Available on a wide range of machines.

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
