Tunneling Platform

Tunneling Platform
Tunneling Platform - Image 2
Tunneling Platform - Image 3

Tunneling Platform

Call for price


Download Technical Sheet ↓

Capacity: 1000 kg Width: 1990 mm
Overall weight: 730 kg Overall length: 2175 mm

The Tunneling Platform offers safe and efficient elevated work with a 1,000 kg capacity. Its FOPS-type roof and +300 mm elevated position protect operators while the 90° rotation on both sides allows precise alignment. Designed with a sliding bar access and fork sleeves for easy handling, it spans 1,990 mm width and 2,175 mm length. Lightweight at 730 kg, this platform ensures stability, safety, and smooth operation for tunneling and confined-space tasks, enhancing productivity in mining and industrial environments.

Categories: ,

TECHNICAL CHARACTERISTICS

  • Platform fitted with a FOPS-TYPE roof (length: 580 mm / 23 in / full platform width / 1930 mm / 76 in under the roof).
  • Protected elevated position (+ 300 mm / 12 in).
  • Capacity 1000 kg / 2205 lb.
  • Rotation 90° on both sides.
  • Access: sliding bar on one side.
  • Fork sleeves for yard handling.
  • Number of people: 3.
  • Overall weight (kg): 730.
  • Overall height (mm): 2125.
  • Overall length (mm): 2175.
  • Width (mm): 1990.
  • Depth (mm): 1000.
  • Rotation 1 (°): 90.
  • Rotation 2 (°): 90.

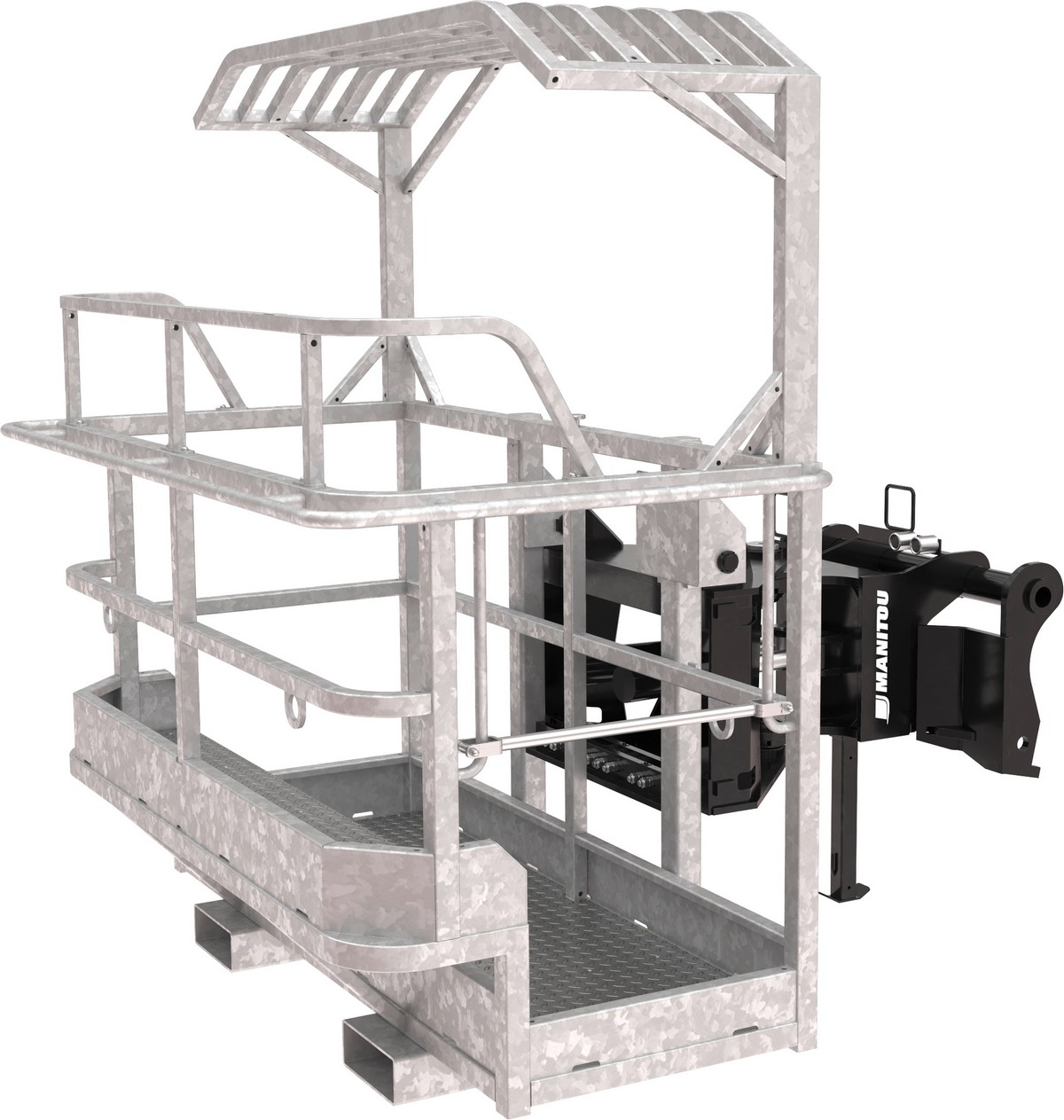

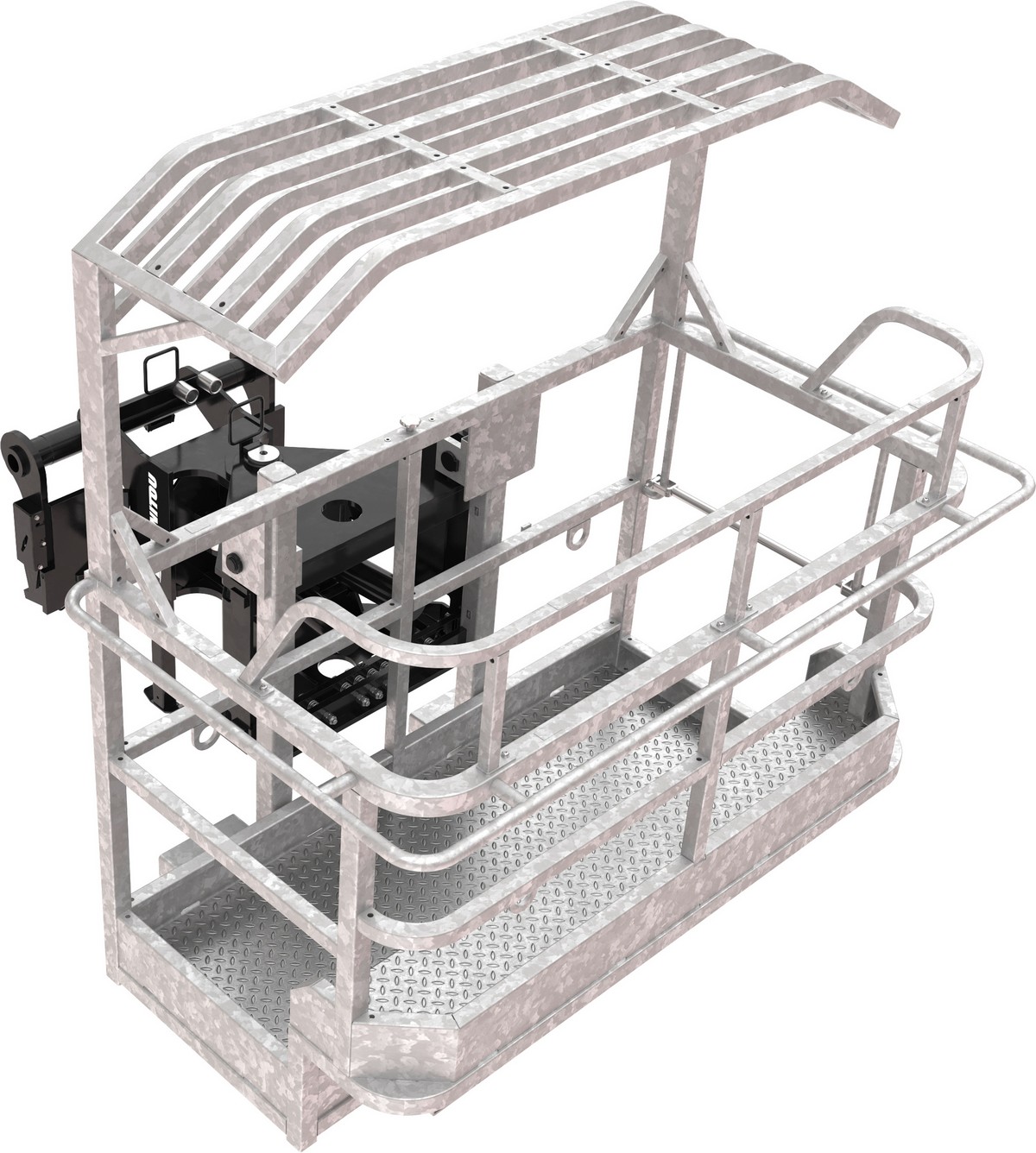

  • [The 3D picture at the top of this page is the reference 52574289 – GALLERY PLATFORM].

CUSTOMER BENEFITS

  • Maximum protection for tunneling applications.
  • No unsafe climbing on the platform required to work above the FOPS roof.
  • To use heavy tools in the platform.
  • No compromise on safety: EN 280 compliant.

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
