Fast Opening Platform

Fast Opening Platform

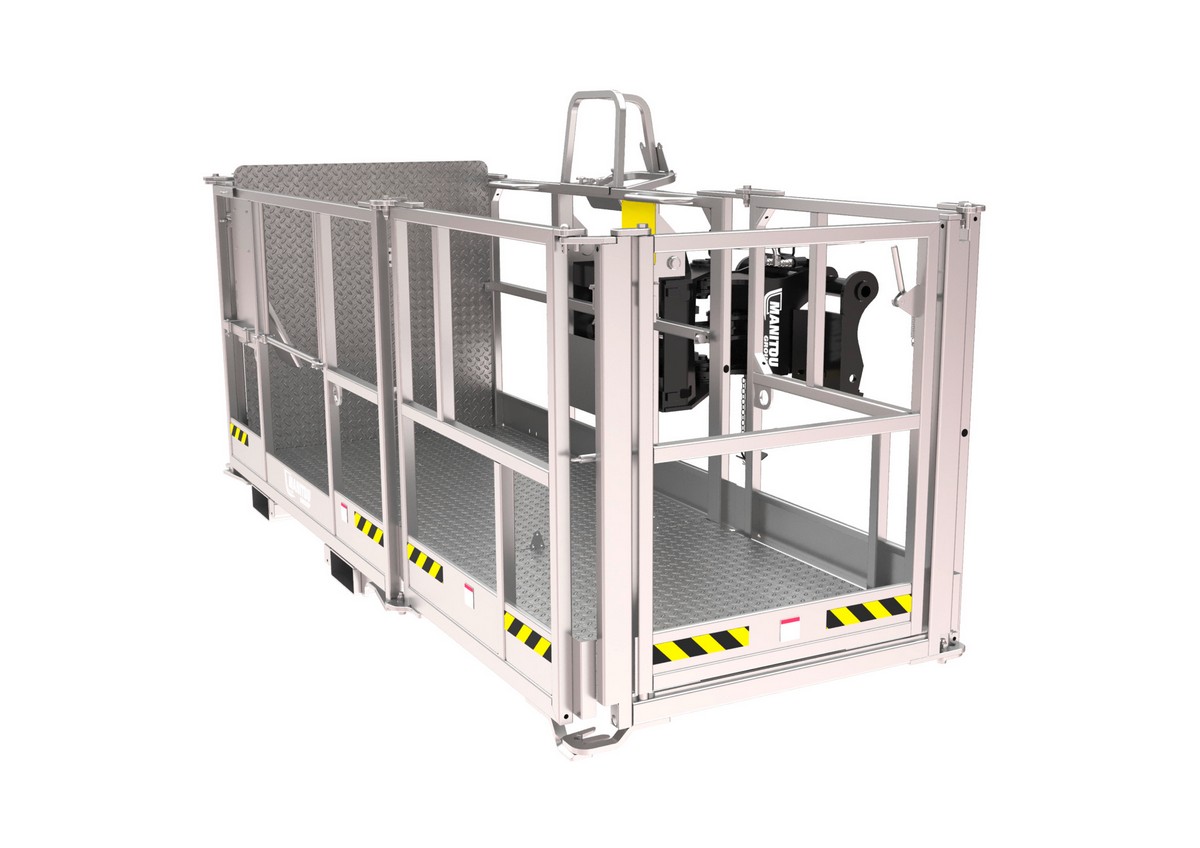

Fast Opening Platform - Image 2
Fast Opening Platform - Image 3

Fast Opening Platform

Call for price


Download Technical Sheet ↓

Capacity including people: from 365 kg to 1000 kg Number of people: 3
Overall weight: from 650 kg to 1030 kg Overall height: from 1030 mm to 1312 mm
Categories: ,

TECHNICAL CHARACTERISTICS

  • Capacity 365/1000/700 kg / 805/2205/1544 lb including 3 people.
  • Unfolded working width 4,4 m / 14 ft.
  • Slewing platform +/- 90° on both sides.
  • Legally approved for 3 persons.
  • Accessible from 3 sides (2x Side + 1 front).
  • Version “D”: right access with side door.
  • Version “DD”: front and right access with side door.
  • Overload sensor.
  • Fork sleeves: 238 mm x 100 mm / 9 in x 4 in.

CUSTOMER BENEFITS

  • Flexibility on aerial working situations.
  • User-friendly opening system, complete opening/closing within 50 seconds.
  • Heavy duty, galvanized structure for an improved longevity.
  • Non-slip metal floor.
  • Expandable sides are independent.
  • Fork sleeves for yard handling.

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
