Heavy Duty Frame Mounted Hook

Heavy Duty Frame Mounted Hook
Heavy Duty Frame Mounted Hook - Image 2
Heavy Duty Frame Mounted Hook - Image 3

Heavy Duty Frame Mounted Hook

Call for price


Download Technical Sheet ↓

Capacity: from 9000 kg to 36000 kg Maximum outreach: from 260 mm to 905 mm
Overall weight: from 129 kg to 970 kg Overall length: from 425 mm to 1817 mm

The Heavy Duty Frame Mounted Hook is built for demanding lifting tasks, with capacities ranging from 9000 kg to 36000 kg and maximum outreach between 260 mm and 905 mm. It features a homologated swivel self-locking hook for secure handling and supports suspended loads up to 25,000 kg. With overall lengths from 425 mm to 1817 mm and weights between 129 kg and 970 kg, this hook ensures safe, reliable, and durable performance for heavy material handling in industrial and construction environments.

Categories: ,

TECHNICAL CHARACTERISTICS

  • Suspended load capacity up to 25000 kg / 55125 lb.
  • Safety: Homologated swivel self locking hook.

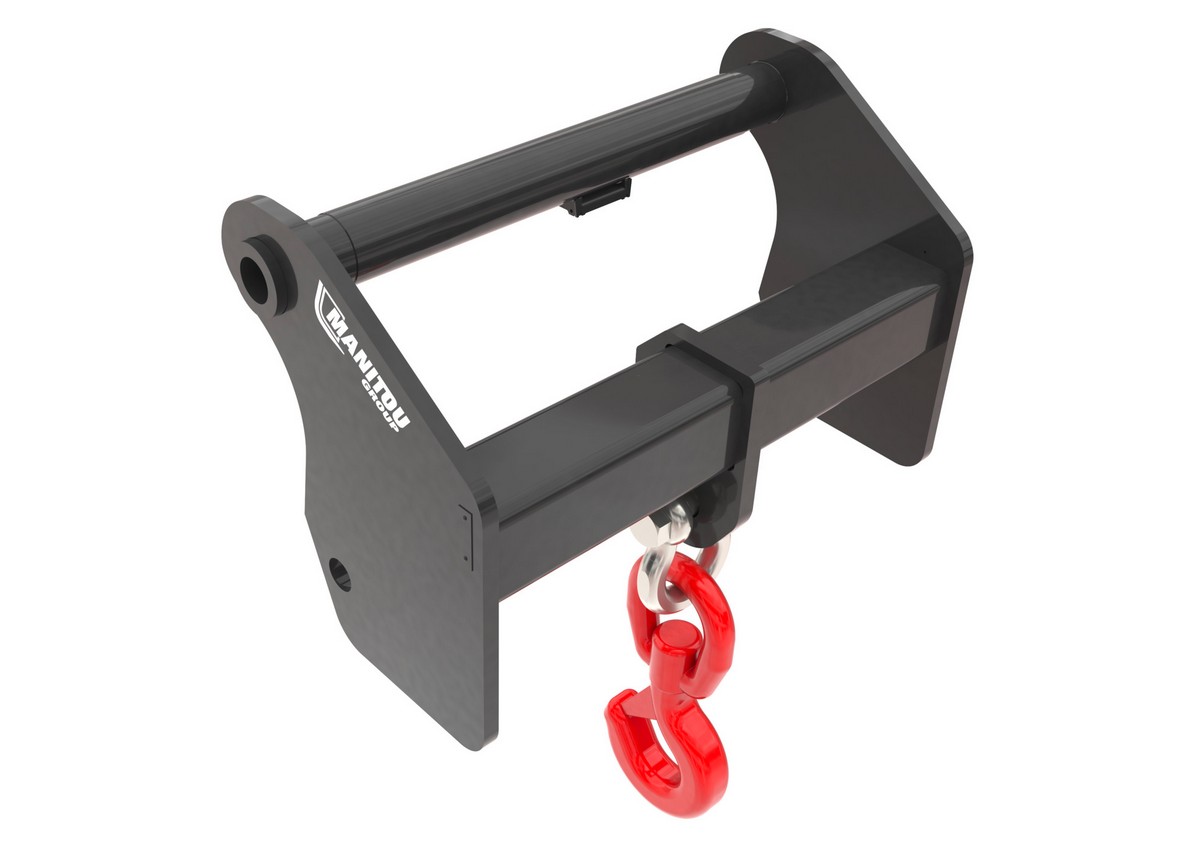

  • [The 3D picture at the top of this page is the reference PC 9 T – 939970].
  • Capacity (kg): 16000 / 20000 / 36000 / 9000 / 13000 / 18000 / 25000 depending on version.
  • Overall weight (kg): 340 / 355 / 970 / 129 / 305 / 340 / 460 depending on version.
  • Maximum outreach (mm): 700 / 905 / 260 depending on version.
  • Overall height (mm): 1068 / 1208 / 1468 / 960 / 1055 / 1258 depending on version.
  • Overall length (mm): 943 / 1817 / 425 / 945 / 985 depending on version.
  • Width (mm): 830 / 1170 / 815 / 800 / 850 depending on version.

CUSTOMER BENEFITS

  • Efficient and heavy duty suspended load solution.
  • Directly hitched on carriage for secured application.
  • Very compact attachment that preserves machine stability.

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
