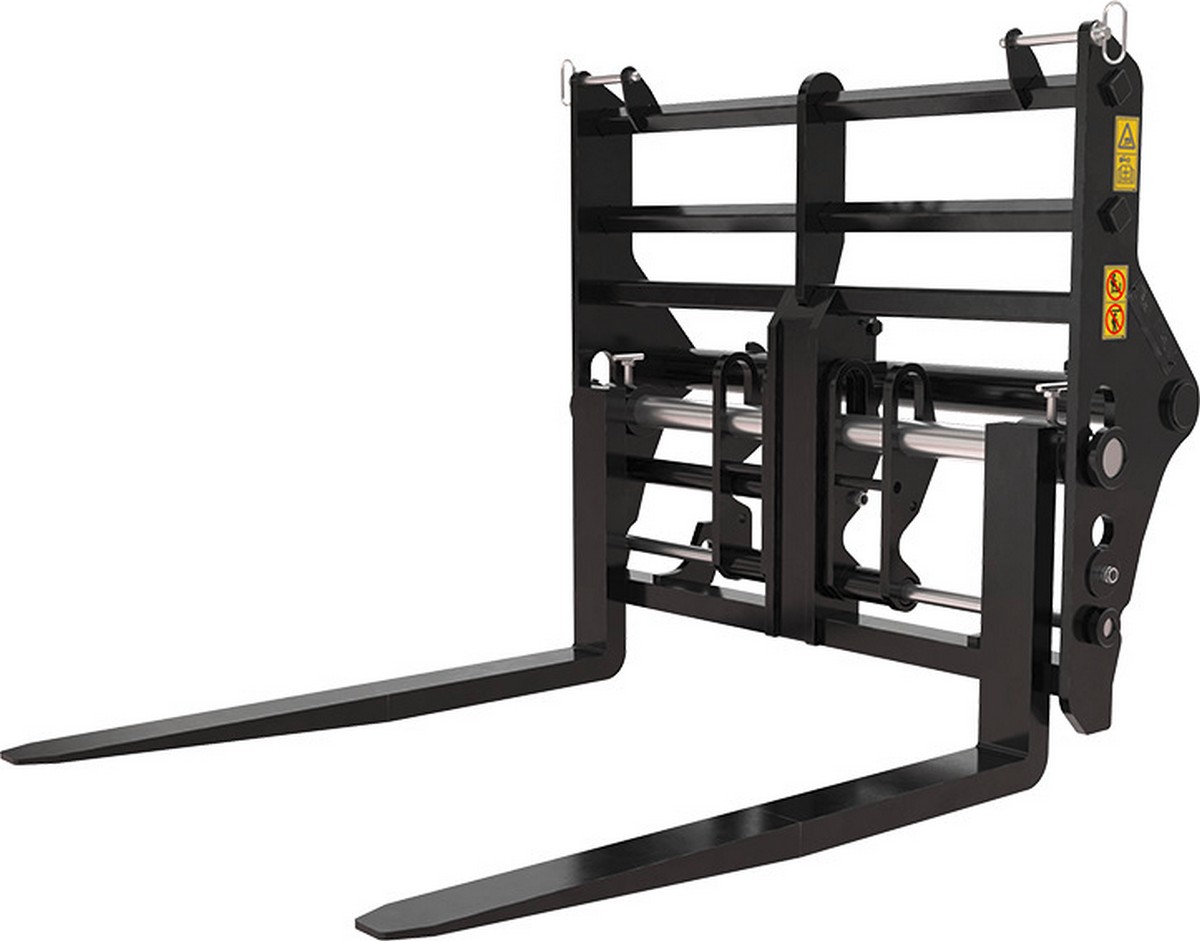

Hydraulic Floating Fork Positioner

Hydraulic Floating Fork Positioner
Hydraulic Floating Fork Positioner - Image 2
Hydraulic Floating Fork Positioner - Image 3

Hydraulic Floating Fork Positioner

Call for price


Download Technical Sheet ↓

Capacity: 4500 kg Width: 1303 mm
Overall weight: 350 kg Overall length: 1532 mm

The Hydraulic Floating Fork Positioner is designed for precise handling of 4500 kg loads, providing smooth and controlled fork movement. Equipped with a hydraulic circuit with pressure limiter and pin-type forks mounted on sliders, it ensures safe positioning and alignment. The standard load backrest adds stability, while fork spreads from 275 mm to 1010 mm allow secure handling of various load sizes. With a width of 1303 mm, overall length of 1532 mm, and weight of 350 kg, it delivers reliable, efficient, and durable performance for industrial and construction applications.

Categories: ,

TECHNICAL CHARACTERISTICS

  • Hydraulic circuit with pressure limiter
  • Fork spread: 275 mm/1010 mm / 11 in/40 in
  • Standard load backrest
  • Pin-type forks- moved through “sliders”
  • Note: fork spread measured on the outer fork edges

CUSTOMER BENEFITS

  • Must-have attachment for each & any construction site
  • 1 model for the complete MT range-advantage for rental fleets
  • Time saving: change fork spread from the cab
  • Precise hydraulic fork movements for more accuracy
  • Floating forks with leveling capacity for rough terrain applications
  • Safety: fork travel lock

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
