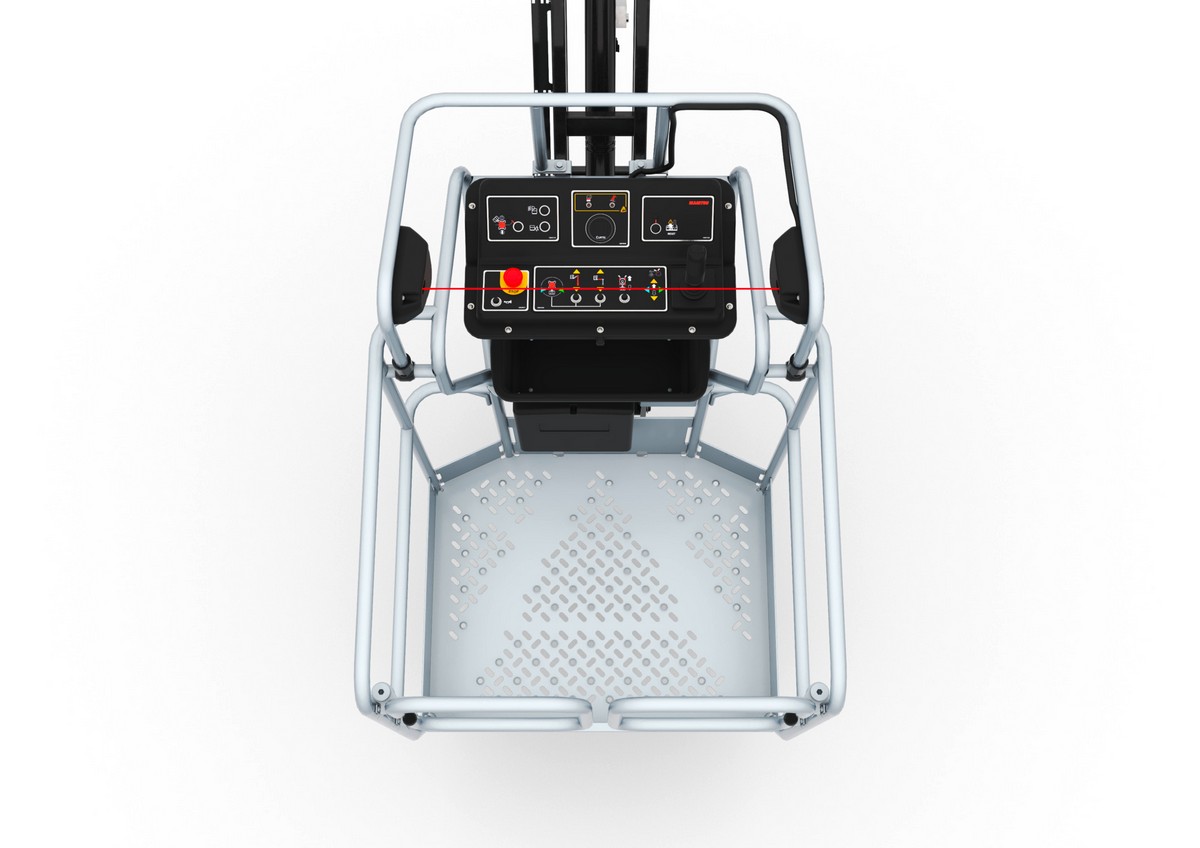

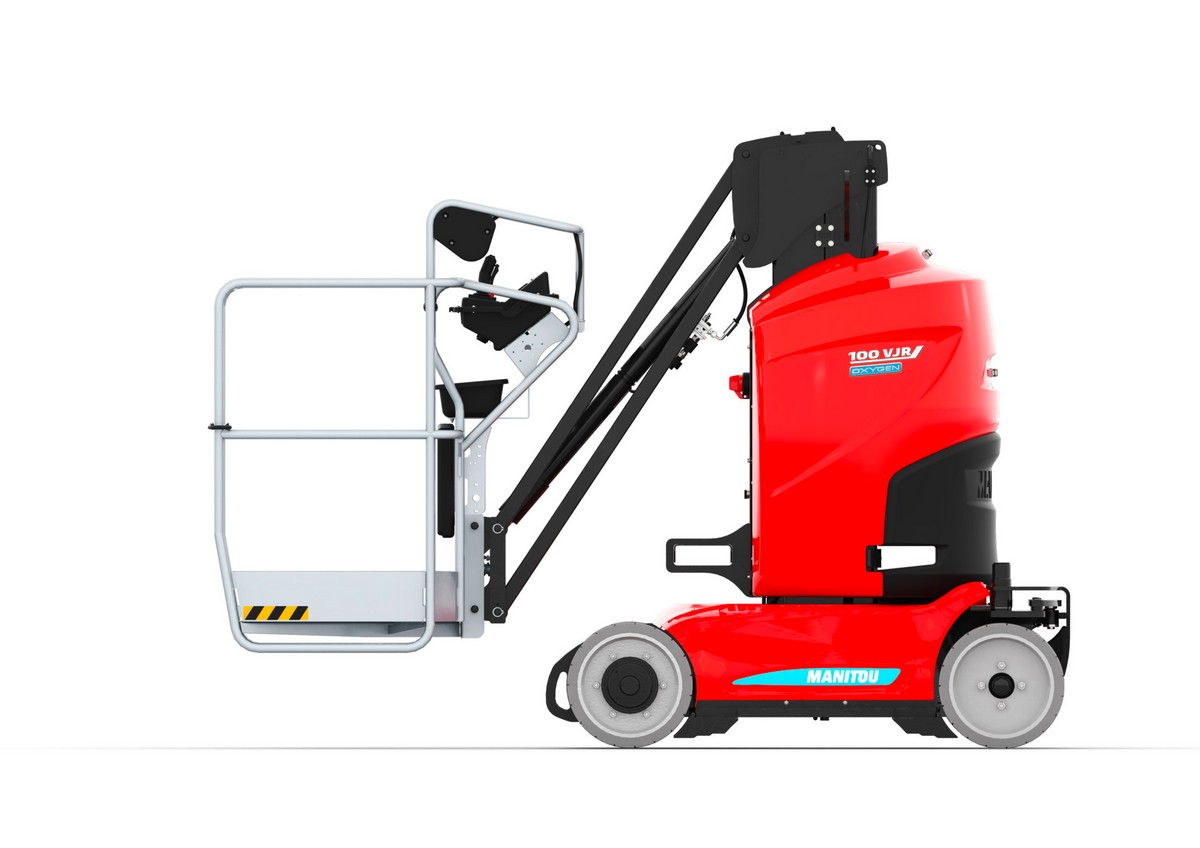

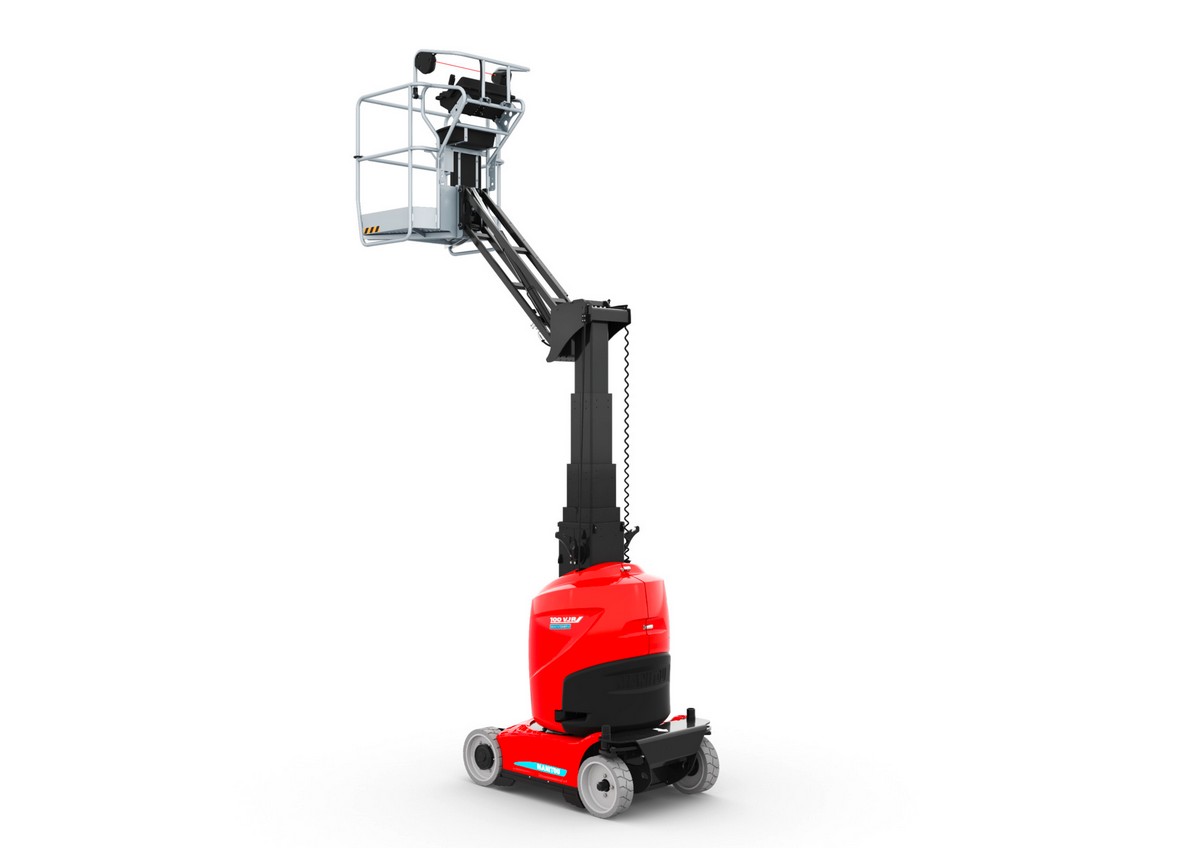

Manitou 100 VJR

Manitou 100 VJR
Manitou 100 VJR - Image 2
Manitou 100 VJR - Image 3
Manitou 100 VJR - Image 4
Manitou 100 VJR - Image 5

Manitou 100 VJR

Call for price


Download Technical Sheet ↓

Working height: 9.85 m Maximum outreach: 3.10 m
Overhang: 6.50 m Platform capacity: 200 kg

The Manitou 100 VJR is a compact mobile elevating work platform designed for efficient indoor access. With a 9.85 m working height, 3.10 m maximum outreach, and 200 kg platform capacity, it supports safe and precise operations at height. Its vertical telescopic mast, 350° continuous rotation, and electric drive ensure smooth maneuverability. The compact design allows easy passage through standard industrial doors while maintaining stability and operator comfort.

Categories: ,

Technical Sheet – 100 VJR

Powertrain: Electric

Max. Capacity 200 kg
Max. Lifting Height 7.85 m
Maximum Outreach 3.10 m
Turret Rotation 350 °
Max. Travel Speed 5 km/h
Operating Weight 2820 kg
Standard Tires 16.5-11 1/4 / 406 x 127 mm
Transmission Electric drive
Drive Motor Power (kW) 0.77 kW
Battery Nominal Voltage (V) 24 V
