Manitou 160 ATJ+ E RC

Manitou 160 ATJ+ E RC
Manitou 160 ATJ+ E RC - Image 2
Manitou 160 ATJ+ E RC - Image 3
Manitou 160 ATJ+ E RC - Image 4
Manitou 160 ATJ+ E RC - Image 5

Manitou 160 ATJ+ E RC

Call for price


Download Technical Sheet ↓

Working height: 16.22 m Maximum outreach: 8.34 m
Overhang: 7.44 m Platform capacity: 408 kg

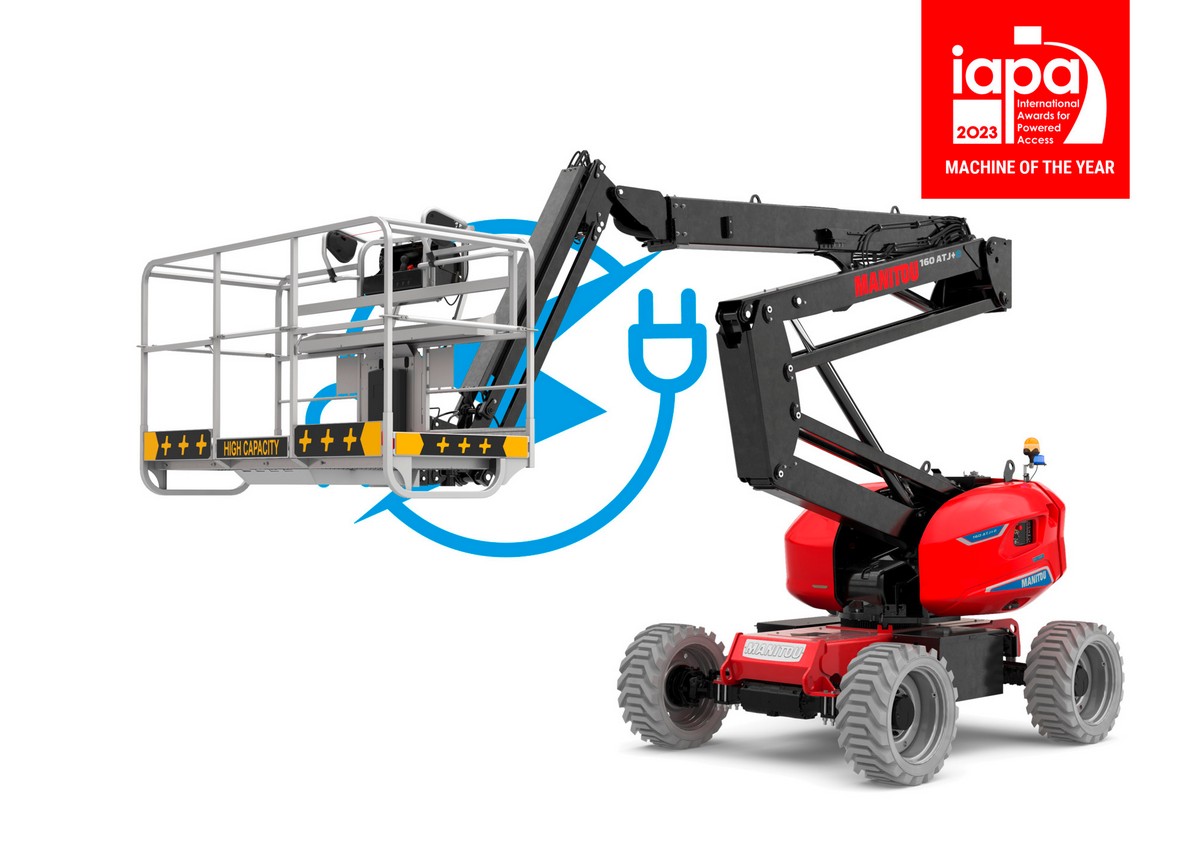

The Manitou 160 ATJ+ e RC is a 100% electric all-terrain boom lift delivering high capacity and zero-emission performance. With a 16.22 m working height, 8.34 m outreach, and 408 kg platform capacity, it safely supports demanding tasks at height. Equipped with 4-wheel drive and steering, high ground clearance, and an oscillating axle, it ensures stability on rough terrain while remaining ideal for indoor and outdoor use.

Categories: ,

Technical Sheet – 160 ATJ+ E RC

Powertrain: Electric

Max. Capacity 408 kg
Max. Lifting Height 14.22 m
Maximum Outreach 8.34 m
Turret Rotation 360 °
Max. Travel Speed 5 km/h
Operating Weight 7790 kg
Standard Tires 914 x 381 mm / 36X15D610
Battery Technology Lead acid batteries
Battery Energy (kWh) 23 kWh
Battery Nominal Voltage (V) 48 V
