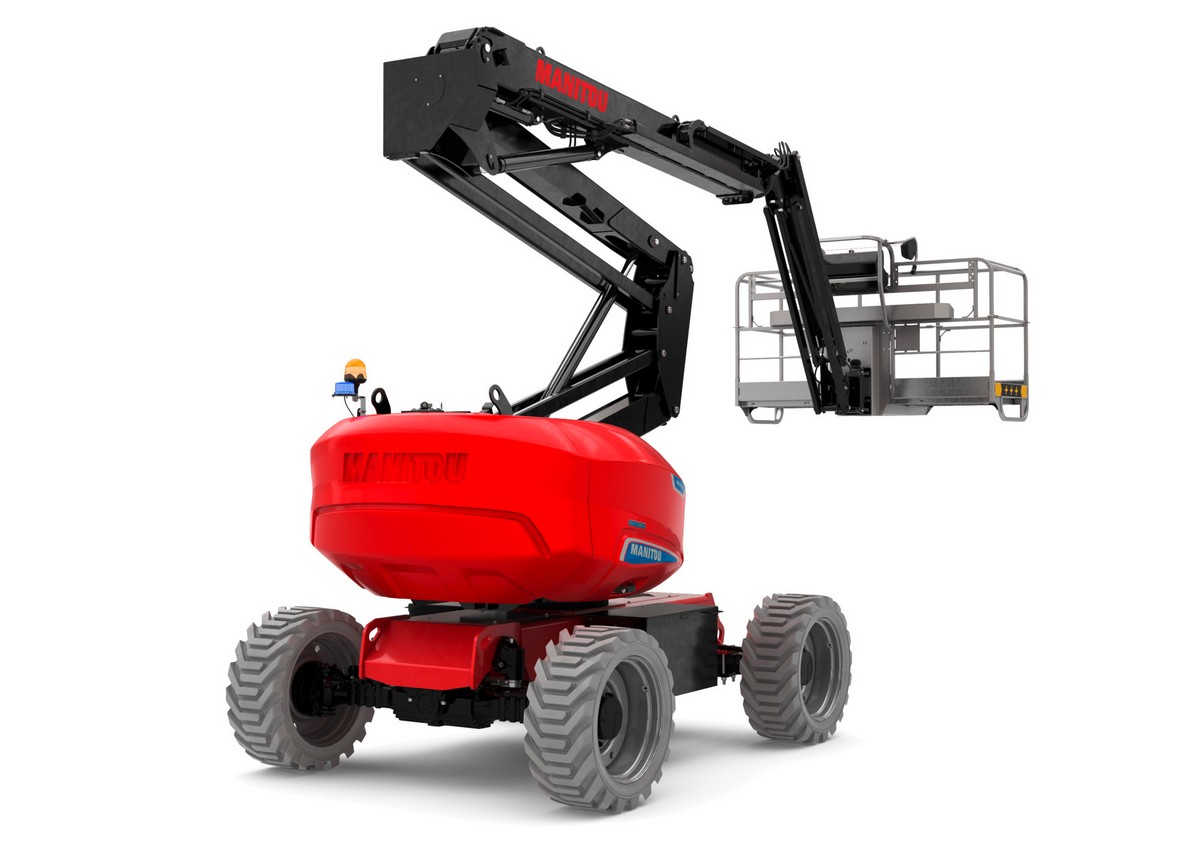

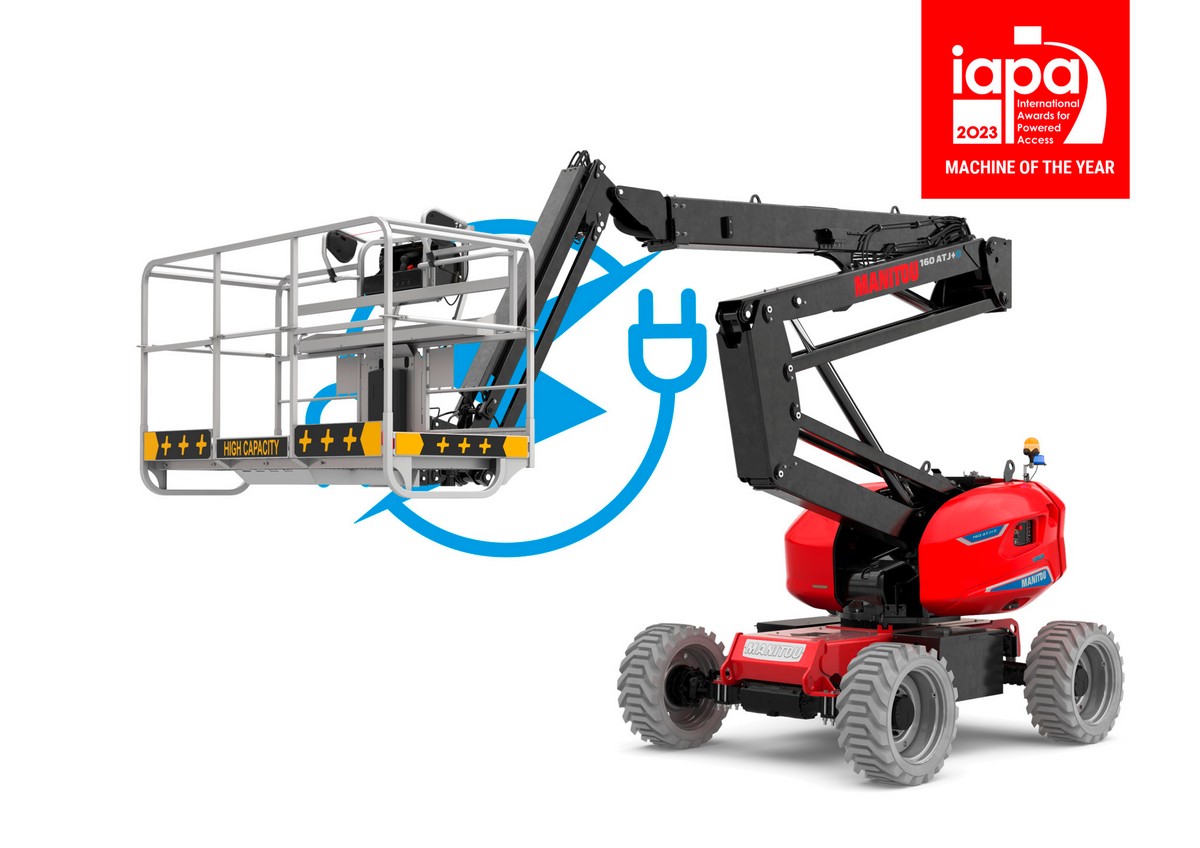

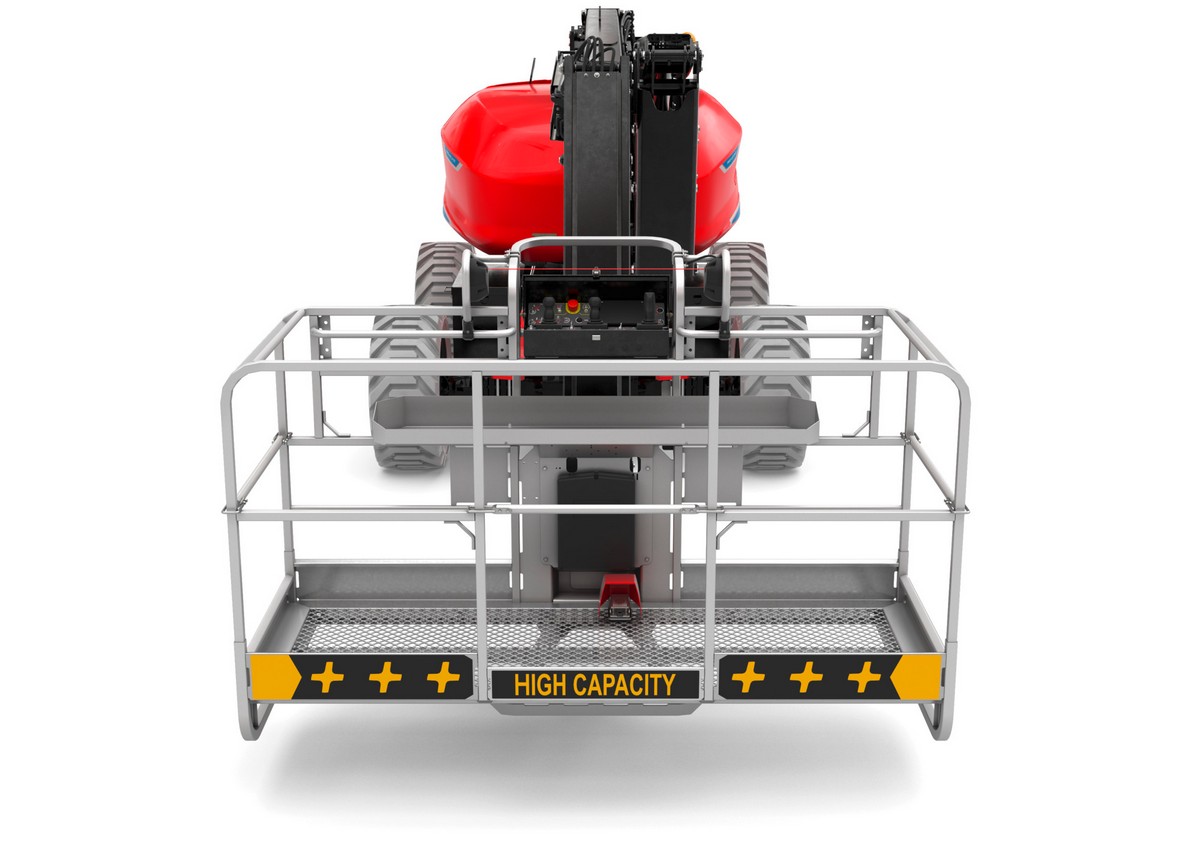

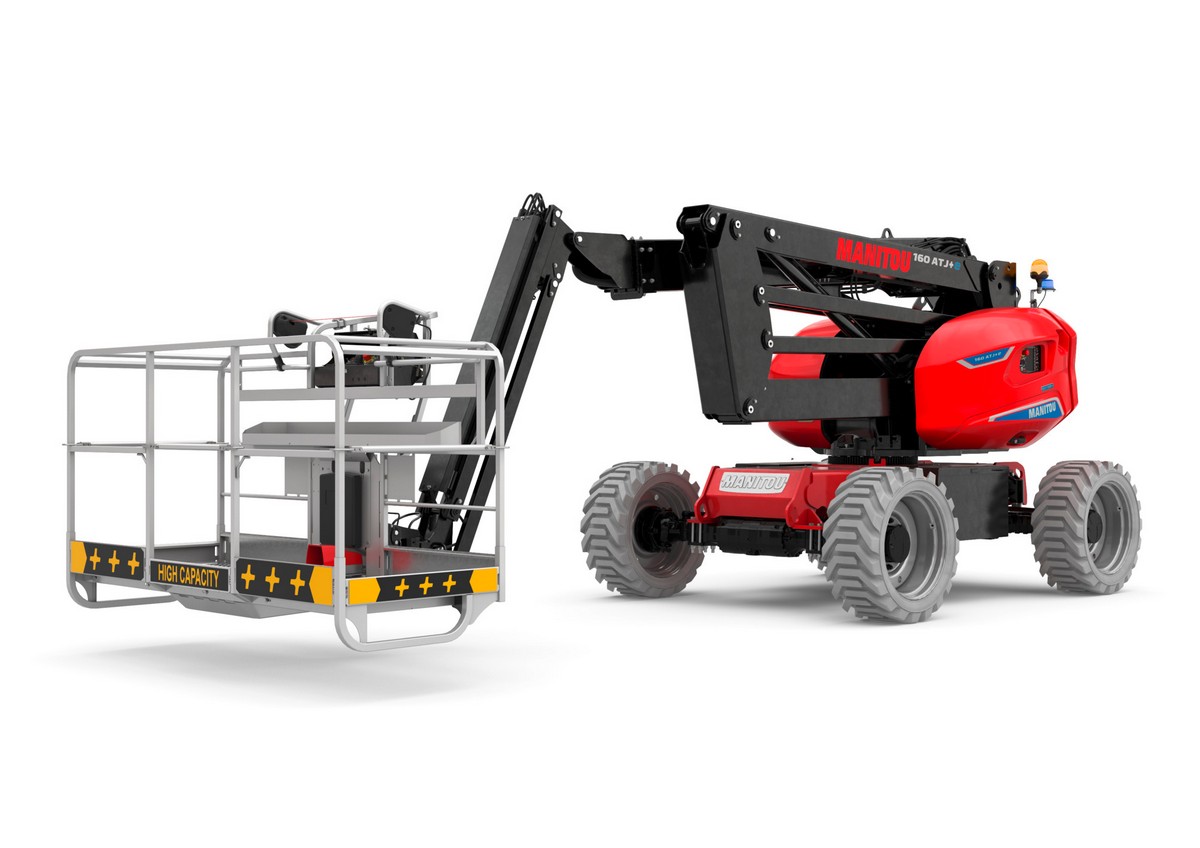

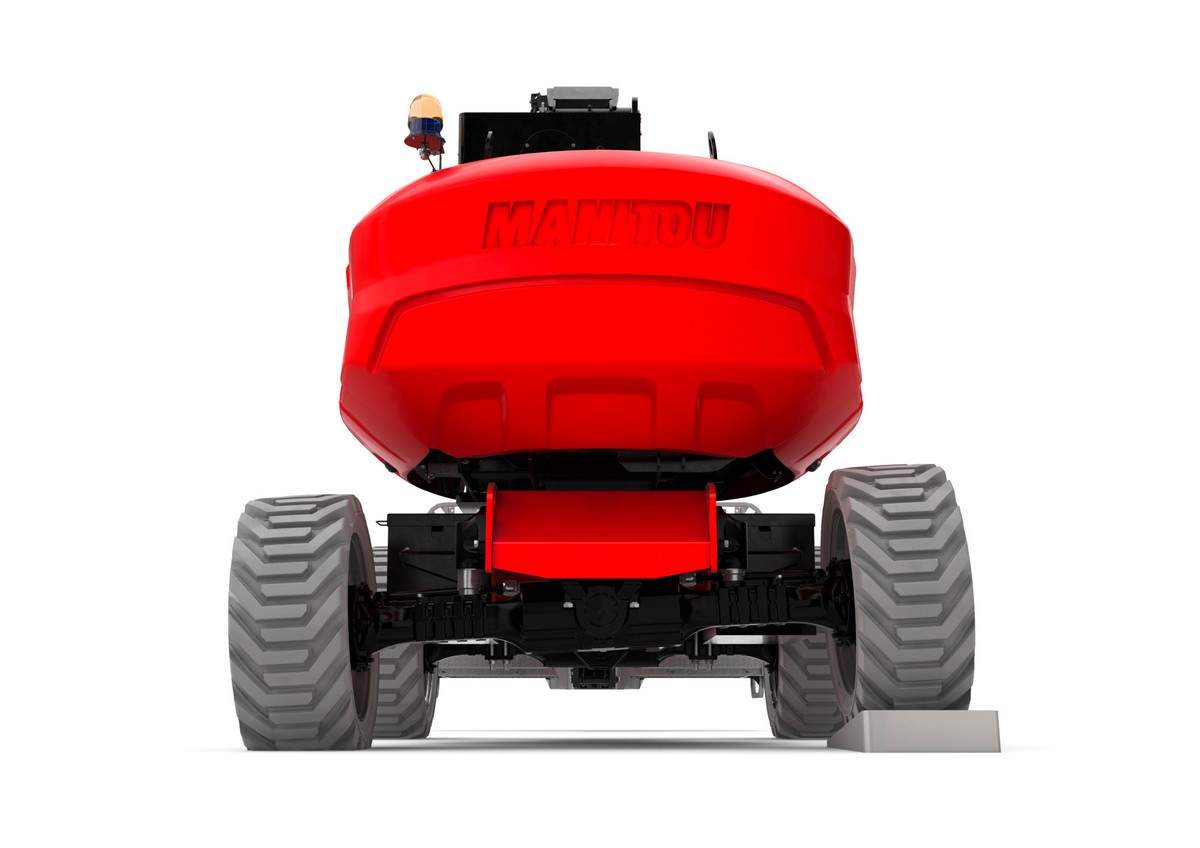

Manitou 160 ATJ+ E

Manitou 160 ATJ+ E
Manitou 160 ATJ+ E - Image 2
Manitou 160 ATJ+ E - Image 3
Manitou 160 ATJ+ E - Image 4
Manitou 160 ATJ+ E - Image 5

Manitou 160 ATJ+ E

Call for price


Download Technical Sheet ↓

Working height: 16.22 m Maximum outreach: 8.34 m
Overhang: 7.44 m Platform capacity: 408 kg

The Manitou 160 ATJ+ e is a 100% electric all-terrain boom lift designed for powerful, zero-emission performance. With a 16.22 m working height, 8.34 m outreach, and 408 kg platform capacity, it supports up to three operators safely. Its 4-wheel drive and steering, high ground clearance, and oscillating axle ensure stability on rough terrain, while silent electric operation makes it ideal for both outdoor and indoor applications.

Categories: ,

Technical Sheet – 160 ATJ+ E

Powertrain: Electric

Max. Capacity 408 kg
Max. Lifting Height 14.26 m
Maximum Outreach 8.34 m
Turret Rotation 350 °
Max. Travel Speed 5.30 km/h
Operating Weight 7790 kg
Standard Tires 914 x 381 mm / 36X15D610
Drive Motor Power (kW) N/A
Battery Technology Lead acid batteries
Battery Energy (kWh) 23 kWh
Battery Nominal Voltage (V) 48 V
