Technical Sheet – MLA 3-25 H
Powertrain: Diesel
| Max. Travel Speed | 20 km/h |
| Operating Weight | 2170 kg |
| Transmission | Hydrostatic |
| Tank Capacities | Fuel: 45 l |
| Engine Brand | Perkins |
| Engine Power (Hp / kW) | 24.70 Hp / 18.40 kW |
| Engine Norm / Emission | Stage V |

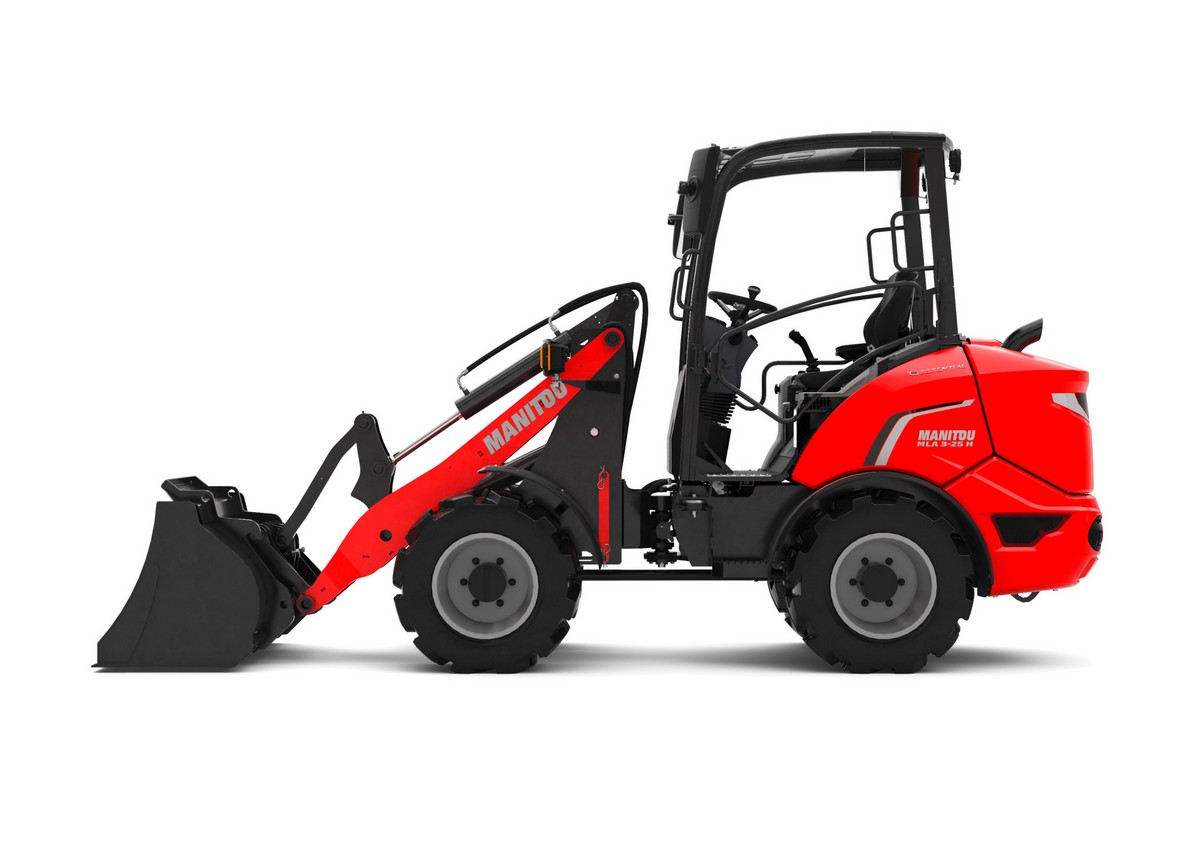

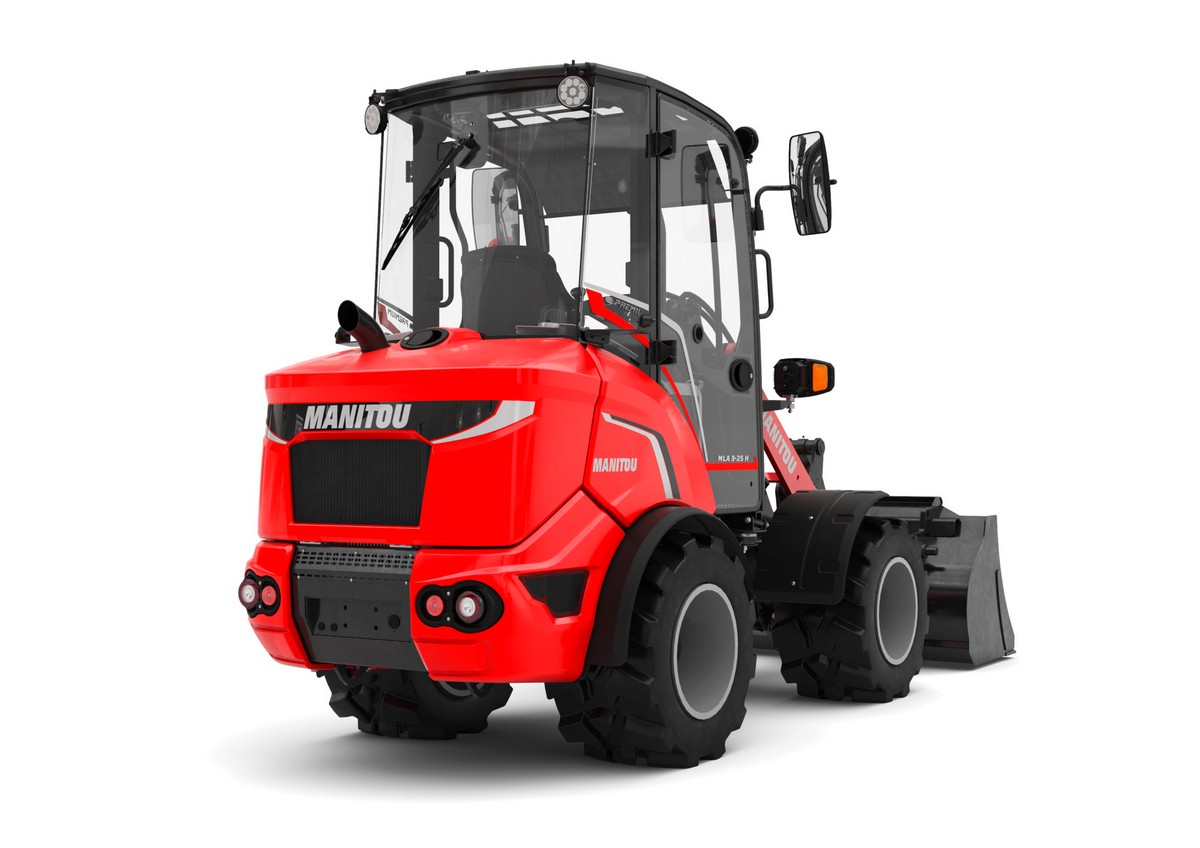

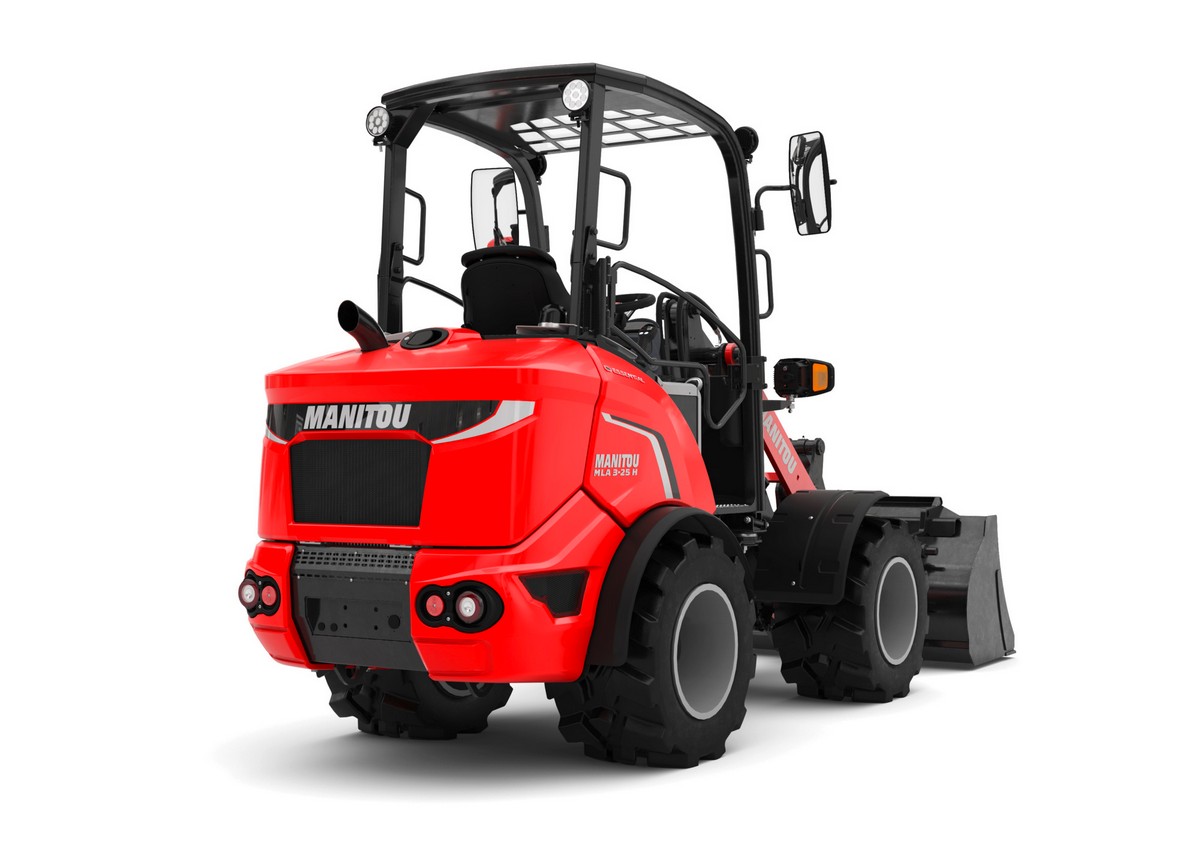

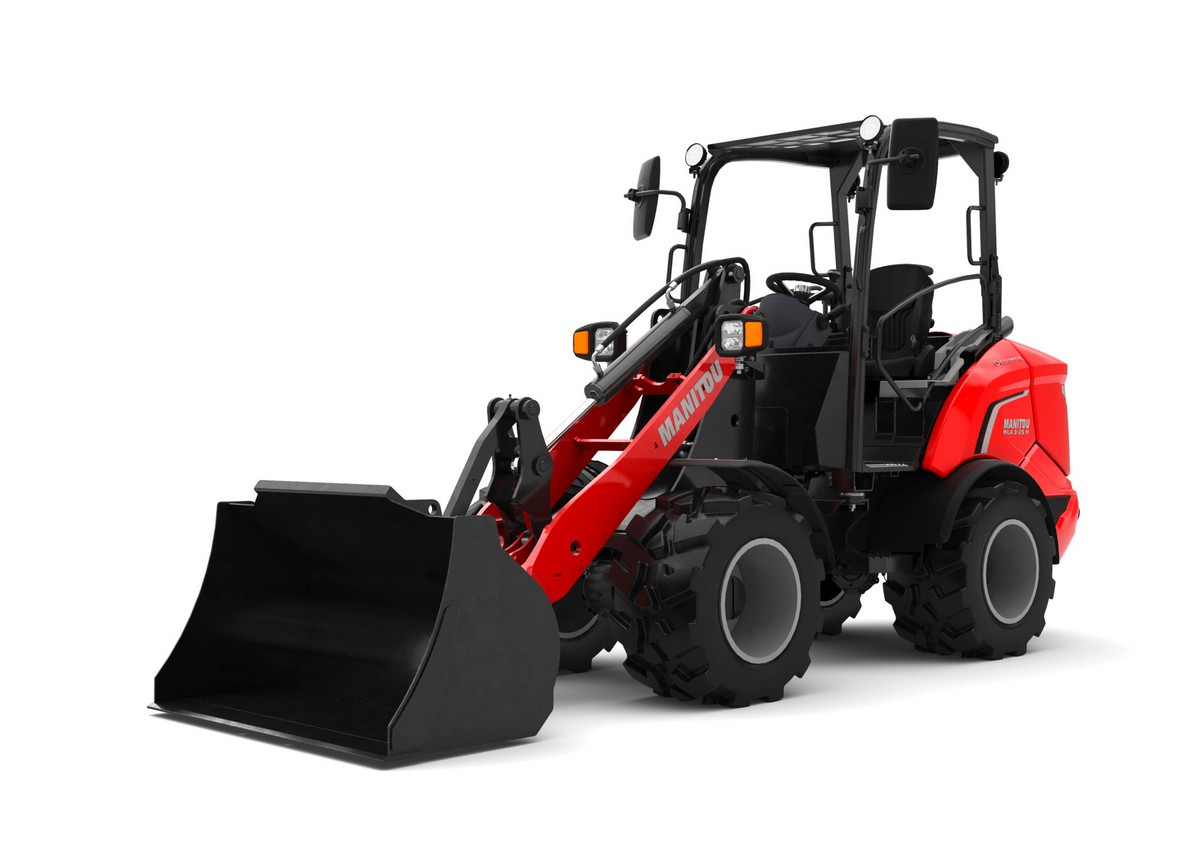

Manitou MLA 3-25 H
| Static tipping load with forks (straight): 965 kg | Static tipping load with bucket (straight): 1270 kg |
| Max. height of bucket pivot point: 2836 mm | Engine power (kW): 18.40 kW |
The Manitou MLA 3-25 H articulated loader combines compact dimensions with impressive power. With a 965 kg tipping load on forks and 1,270 kg with bucket, plus a 2,836 mm lift height, it is ideal for tight job sites and confined spaces. Powered by an 18.40 kW engine, it delivers strong traction and reliable performance. Its narrow width and low transport weight make it easy to move between sites while maintaining stability and productivity.
