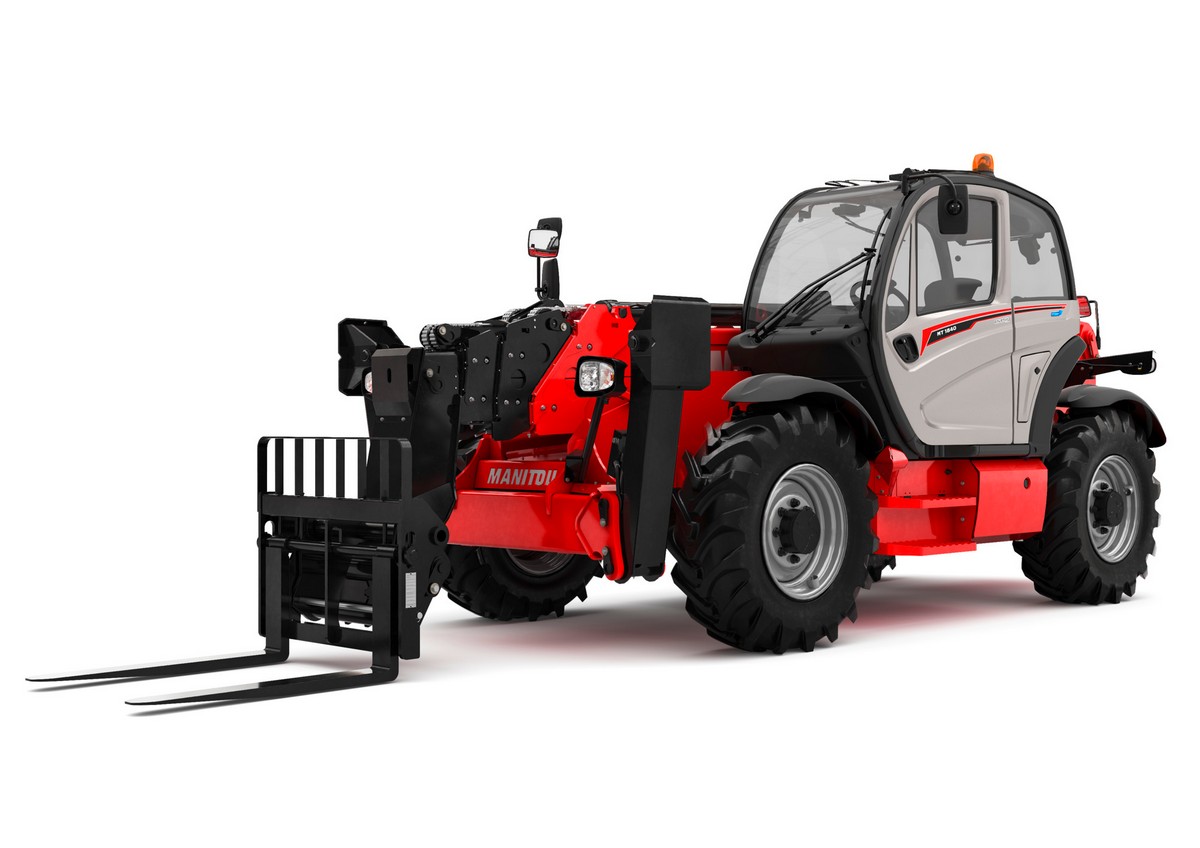

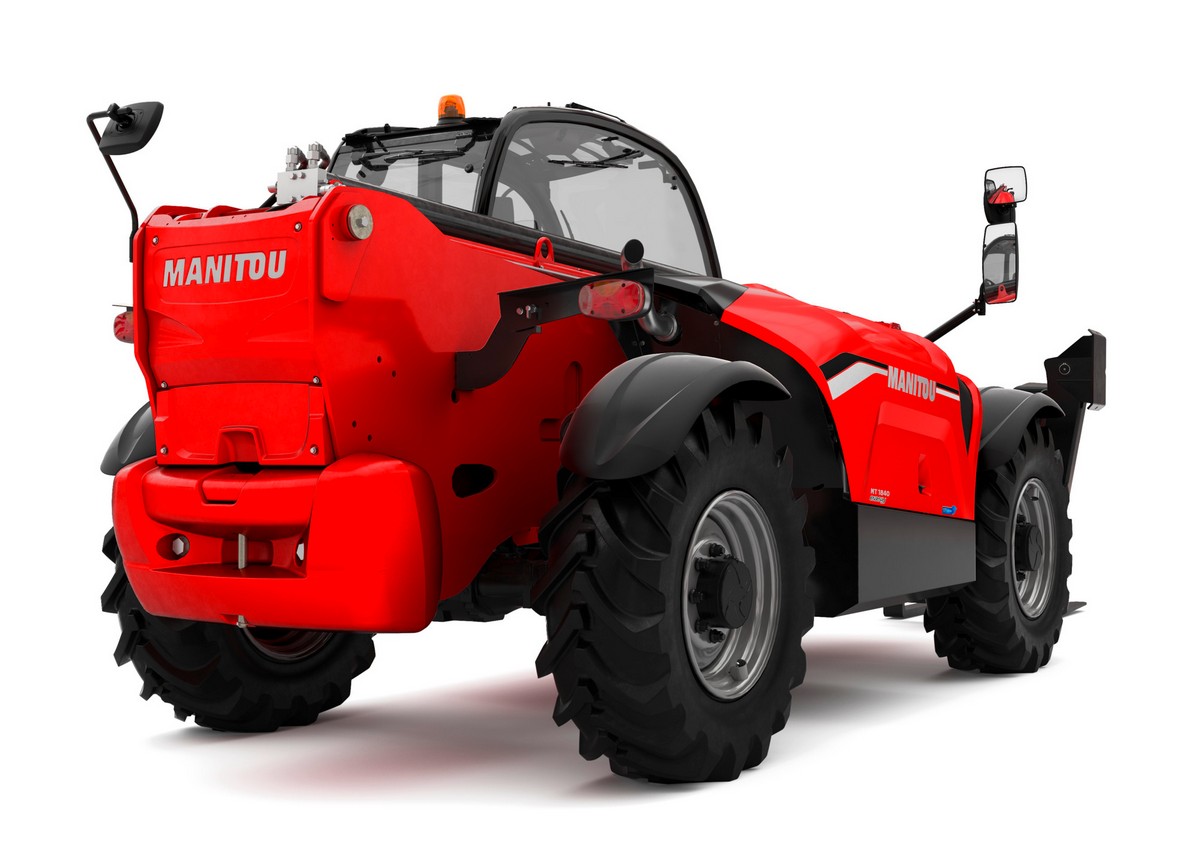

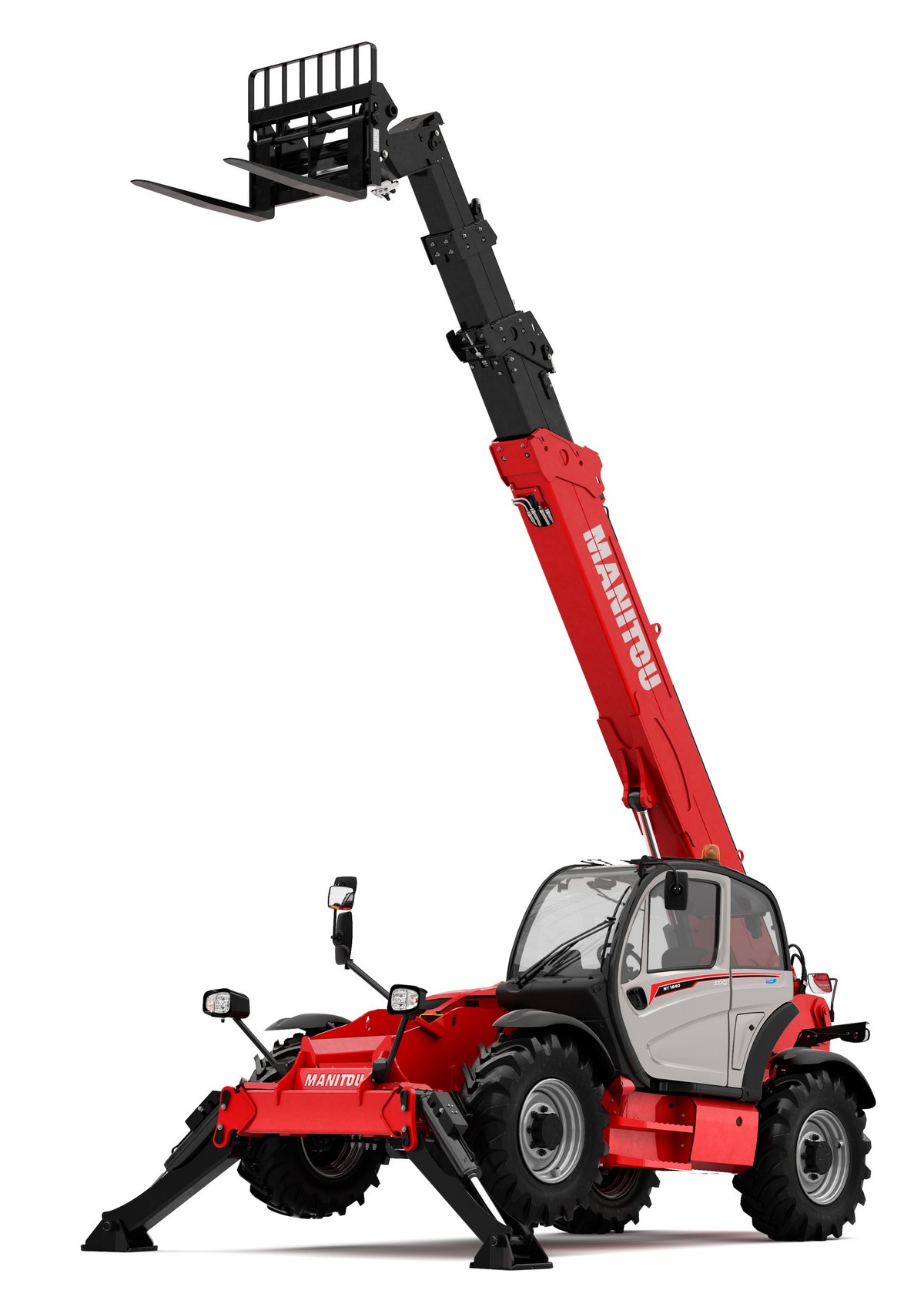

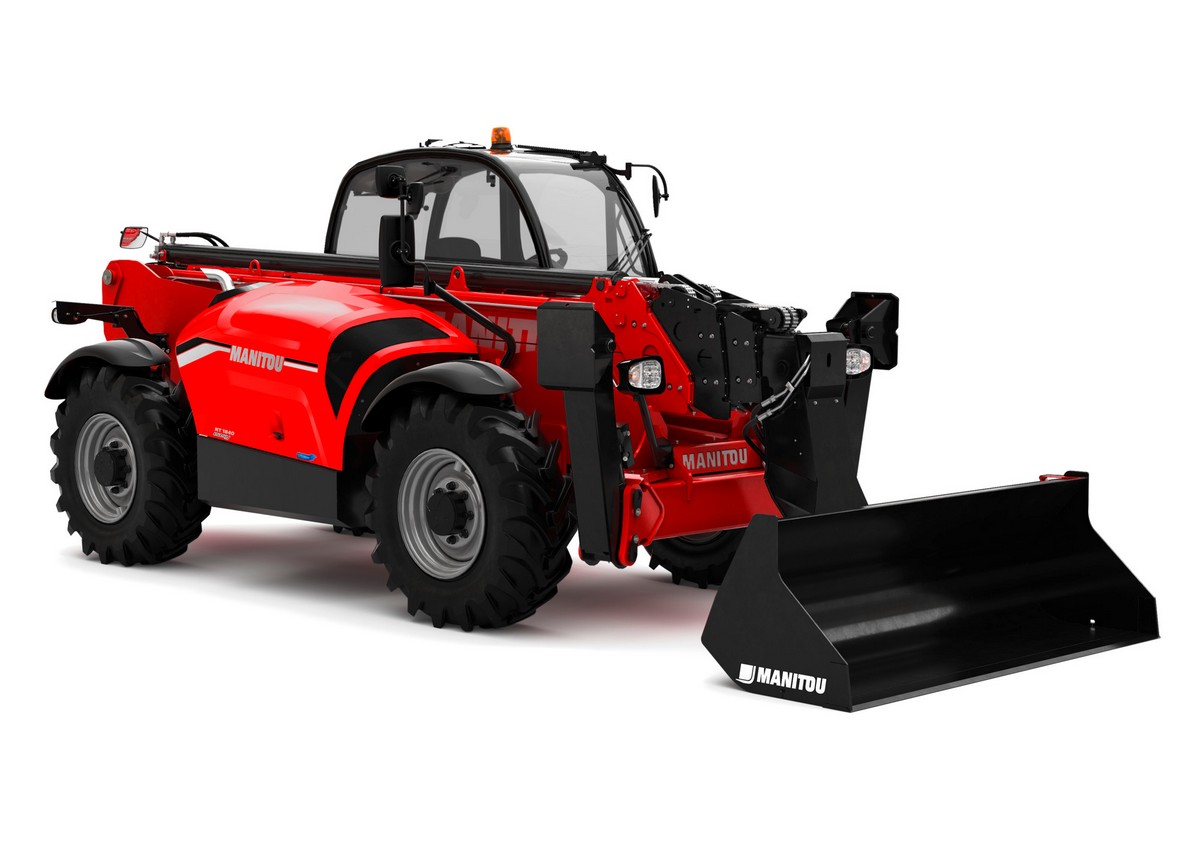

Manitou MT 1840 A 100D ST5 S1

Manitou MT 1840 A 100D ST5 S1
Manitou MT 1840 A 100D ST5 S1 - Image 2
Manitou MT 1840 A 100D ST5 S1 - Image 3
Manitou MT 1840 A 100D ST5 S1 - Image 4
Manitou MT 1840 A 100D ST5 S1 - Image 5

Manitou MT 1840 A 100D ST5 S1

Call for price


Download Technical Sheet ↓

Max. capacity: 4000 kg Max. lifting height: 17.55 m
Maximum outreach: 13.08 m Engine power (kW): 75 kW

The MT 1840 A 100D ST5 S1 is a high-reach telehandler designed for demanding lifting applications on construction sites.
It handles up to 4,000 kg, reaches 17.55 m in height and provides 13.08 m outreach, powered by a 75 kW engine.
Its robust design and advanced stabilization ensure safe load placement at extended heights.
Built for performance and reliability, it delivers precise control and stable operation across challenging terrains.

Category:

Technical Sheet – MT 1840 A 100D ST5 S1

Powertrain: Diesel

Max. Capacity 4000 kg
Max. Lifting Height 17.55 m
Maximum Outreach 13.08 m
Hydraulic Flow 167 l/min
Max. Travel Speed 24.90 km/h
Operating Weight 12400 kg
Standard Tires Alliance 400/80 – 24 – 162A8
Transmission Torque converter
Tank Capacities Fuel: 140 l
Engine Brand Deutz
Engine Power (Hp / kW) 100 Hp / 75 kW
Engine Norm / Emission Stage V

ROPS-FOPS Level 2 cab certification ensures operator protection in case of machine rollover (ROPS) and against falling heavy objects on construction sites (FOPS Level 2).
