Platform with dismountable fops roof

Platform with dismountable fops roof

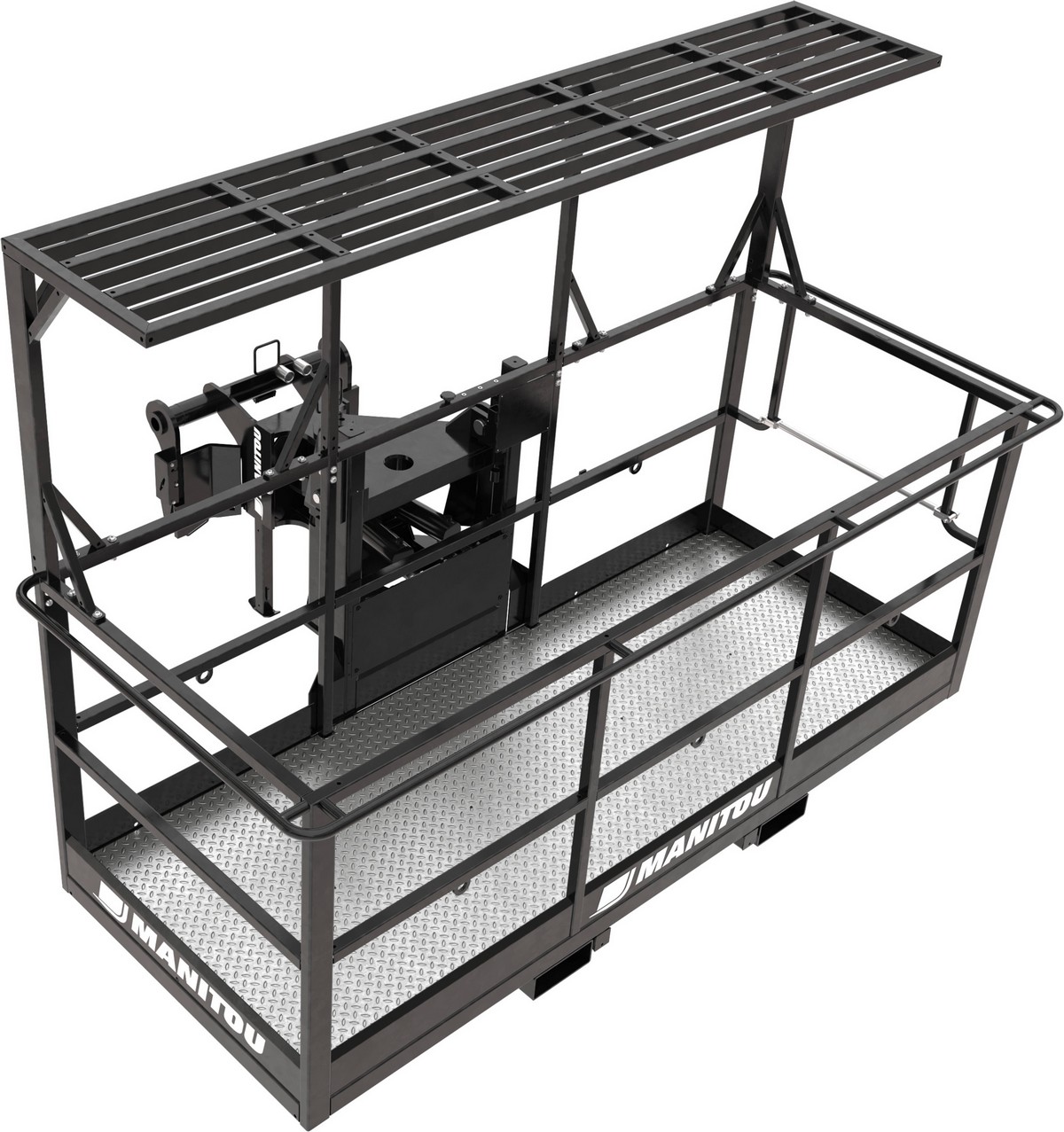

Platform with dismountable fops roof - Image 2

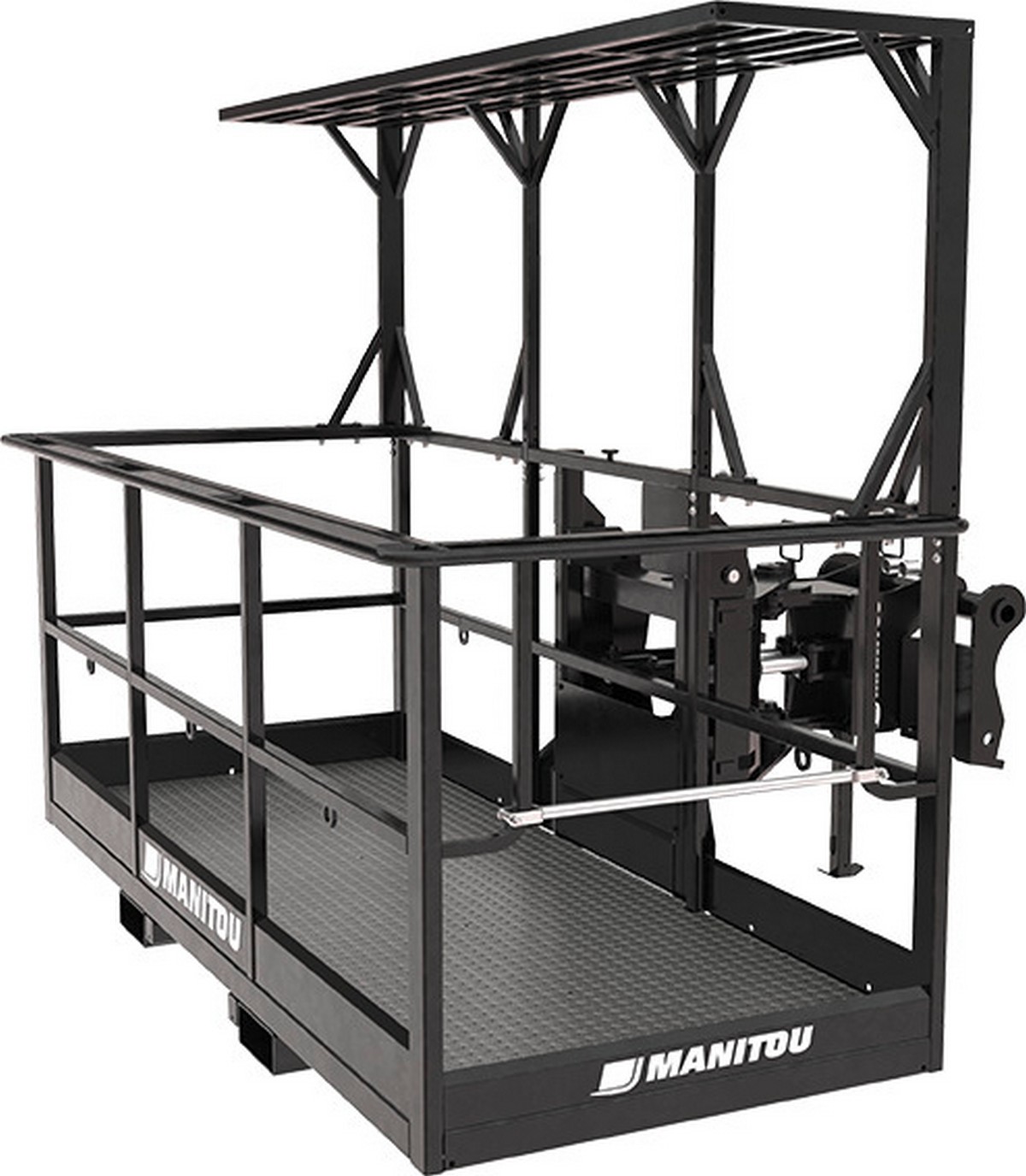

Platform with dismountable fops roof - Image 3

Platform with dismountable fops roof

Call for price


Download Technical Sheet ↓

Capacity including people: 1000 kg Number of people: 3
Overall weight: 1105 kg Overall height: 2140 mm

The Platform with a dismountable FOPS roof ensures maximum safety and adaptability for rooftop work. Supporting up to 3 operators and 1000 kg, it features a removable protection roof compliant with FOPS-1 standards and 90° slewing in both directions. Its 3 m wide basket and sturdy fork sleeves provide stability, while the sliding bar access allows easy entry. Lightweight yet robust at 1105 kg, this platform delivers secure, efficient, and precise handling for demanding construction and maintenance tasks.

Categories: ,

TECHNICAL CHARACTERISTICS

  • Platform fitted with a protection roof designed according to FOPS-1 standard.
  • Legally approved for 3 persons.
  • Dismountable roof.
  • 90°/90° rotation.
  • 3 m / 10 ft wide basket, non extendable.
  • Fork sleeves: 238 mm x 100 mm / 9 in x 4 in.
  • Access: sliding bar.
  • Capacity including people: 1000 kg.
  • Overall weight: 1105 kg.
  • Overall height: 2140 mm.
  • Overall length: 2375 mm.
  • Width: 3190 mm.

CUSTOMER BENEFITS

  • Full safety in people lifting.
  • Solution designed for tunneling/mining applications where operator protection is required.
  • Dismountable roof: the platform can be used for standard applications when protection is not required.
  • Fork sleeves for yard handing.

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
