R-Evolution tilting fork carriage

R-Evolution tilting fork carriage

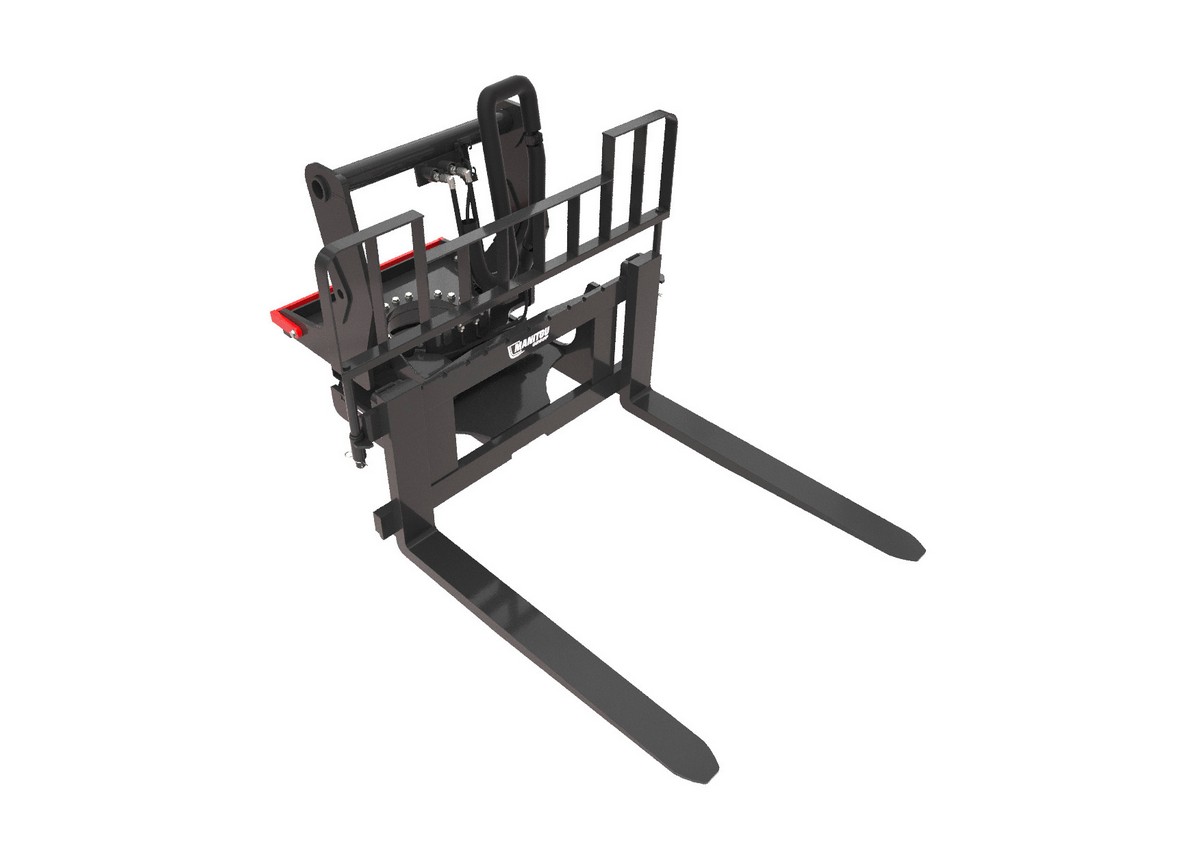

R-Evolution tilting fork carriage - Image 2

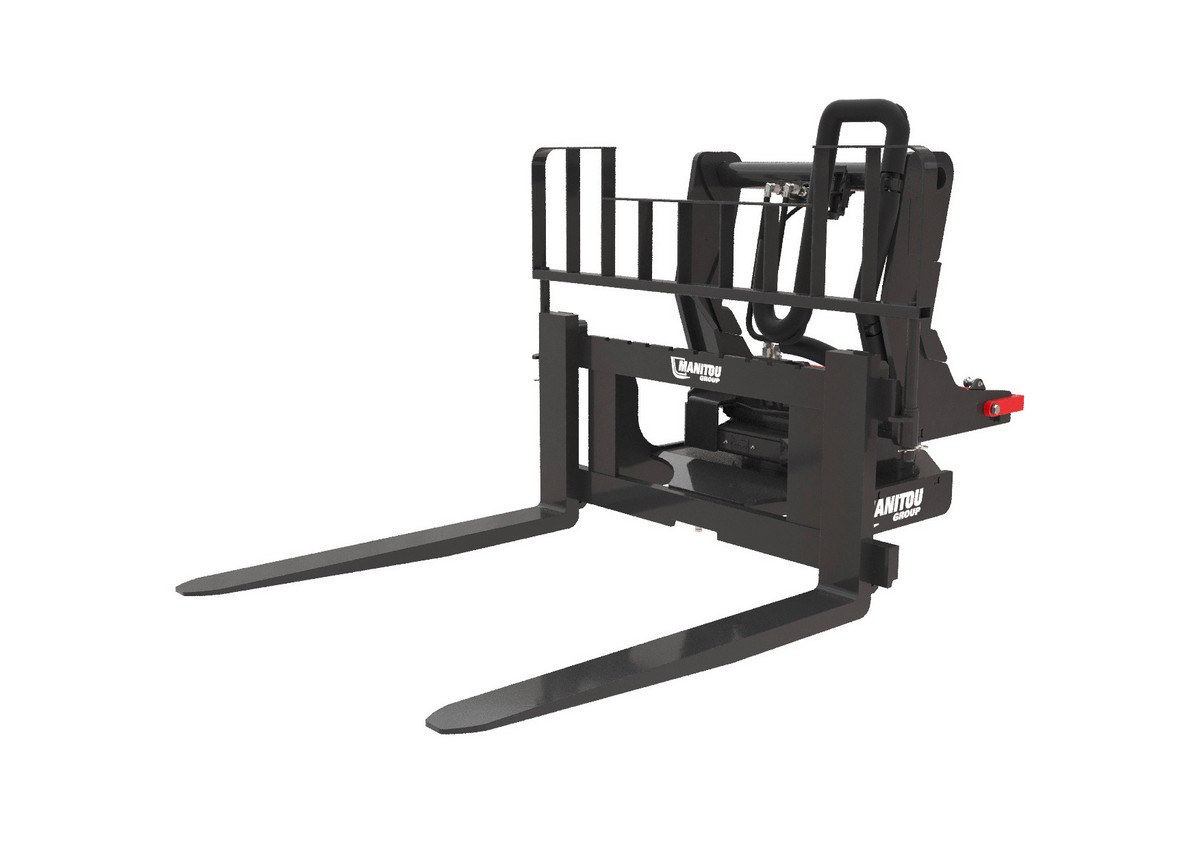

R-Evolution tilting fork carriage - Image 3

R-Evolution tilting fork carriage

Call for price


Download Technical Sheet ↓

Width: 1420 mm Overall weight: 680 kg
Overall length: 2208 mm Overall height: 1130 mm

The R-Evolution Tilting Fork Carriage enhances MRT performance with continuous 360° fork rotation, enabling precise load handling in any direction. It supports up to 5000 kg frontally with ±15° tilt and up to 2500 kg when rotated. Built with a sturdy 680 kg frame, 1420 mm width, 2208 mm length, and 1130 mm height, it ensures stability and control for demanding operations. Designed for heavy-duty use, it provides safe, efficient, and reliable handling, with mandatory road circulation kits required in Germany and Italy for compliance.

Categories: ,

TECHNICAL CHARACTERISTICS

  • Major increase of your MRT’s functionality thanks to a continuous 360° fork rotation.
  • 2 capacities: Up to 5000 kg / 11025 lb frontal (+/- 15°) and up to 2500 kg / 5513 lb rotated.
  • Note: road circulation kit mandatory in Germany and Italy on MRT Vision+.

CUSTOMER BENEFITS

  • Easy handling of long loads in narrow spaces.
  • Space saving: better pallet management= less storage space used.
  • Reduce machine movements & maneuvers = Fuel consumption savings.
  • Safety: constant monitoring of the load’s weight, angle & position; adaptive overload control according to the load’s position; no forward tilting if rotation > 120° and boom lifted over 3 m / 10 ft high.
  • Cost saving: limits machine movements & maneuvers = lower fuel consumption.
  • Space saving: better pallet management= less storage space used.

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
