Rib handling clamp

Rib handling clamp
Rib handling clamp - Image 2

Rib handling clamp

Call for price


Download Technical Sheet ↓

Capacity: 4000 kg Overall weight: 790 kg
Maximum opening: 480 mm Minimum opening: 16 mm

The Rib Handling Clamp is engineered for heavy-duty material handling with a 4000 kg capacity, ensuring safe and efficient transport of structural components. Its 45° hydraulic arm movement and 65° manual head rotation provide precise positioning, while the wide clamp opening up to 480 mm accommodates various rib sizes. Designed for durability, the 790 kg frame delivers stability and reliability. Compatible with MRT Vision and Vision+ machines, it supports seamless operation and easy integration for professional construction and industrial tasks.

Categories: ,

TECHNICAL CHARACTERISTICS

  • Capacity 4000 kg / 8820 lb.
  • 45° hydraulic arm movement.
  • 65°/65° manual head rotation.
  • Wide hydraulic clamp opening: up to 480 mm / 19 in.
  • MRT Vision/ Vision+: no machine equipment required.
  • MRT Vision/ Vision+: adaptation plug required to use an older model on the machines. Contact the spare part department.

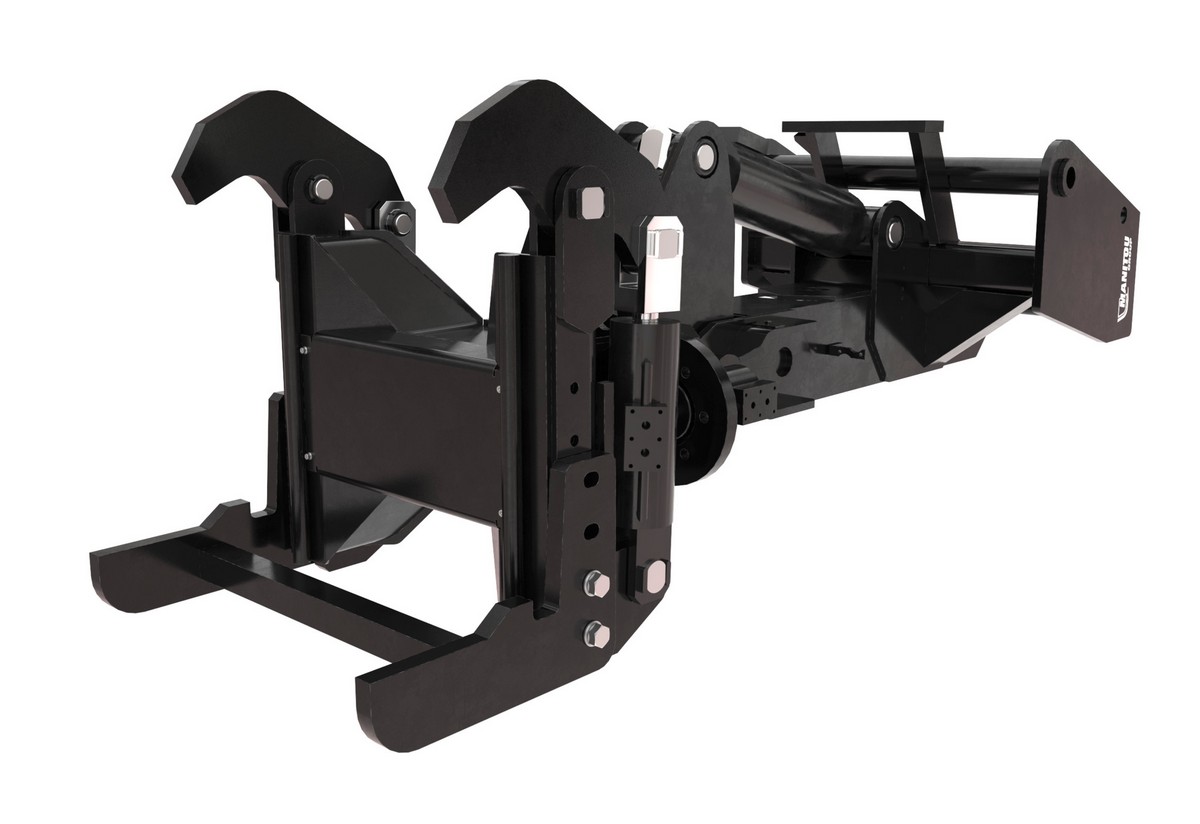

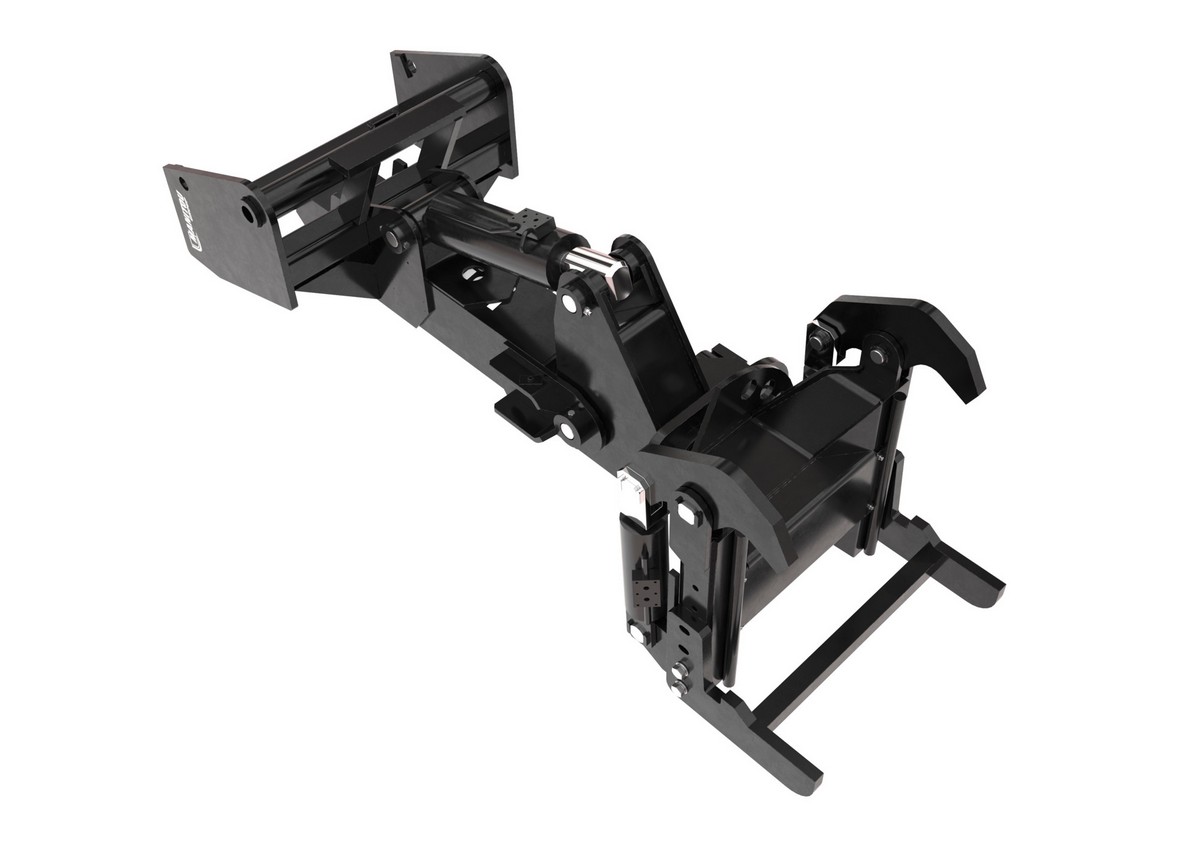

  • [The 3D picture at the top of this page is the reference CLR 4000 – 52721819].

CUSTOMER BENEFITS

  • THE clamp for all rib handlings & placements.
  • Efficient & accurate rib placement.
  • Safety: prevents from suspending ribs on forks or hooks.
  • To be controled from the machine’s cab or with a remote control.
  • Note: rib placement with a vertical attachment only. Ribs can be grabbed on the ground using the machine’s titling.

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
