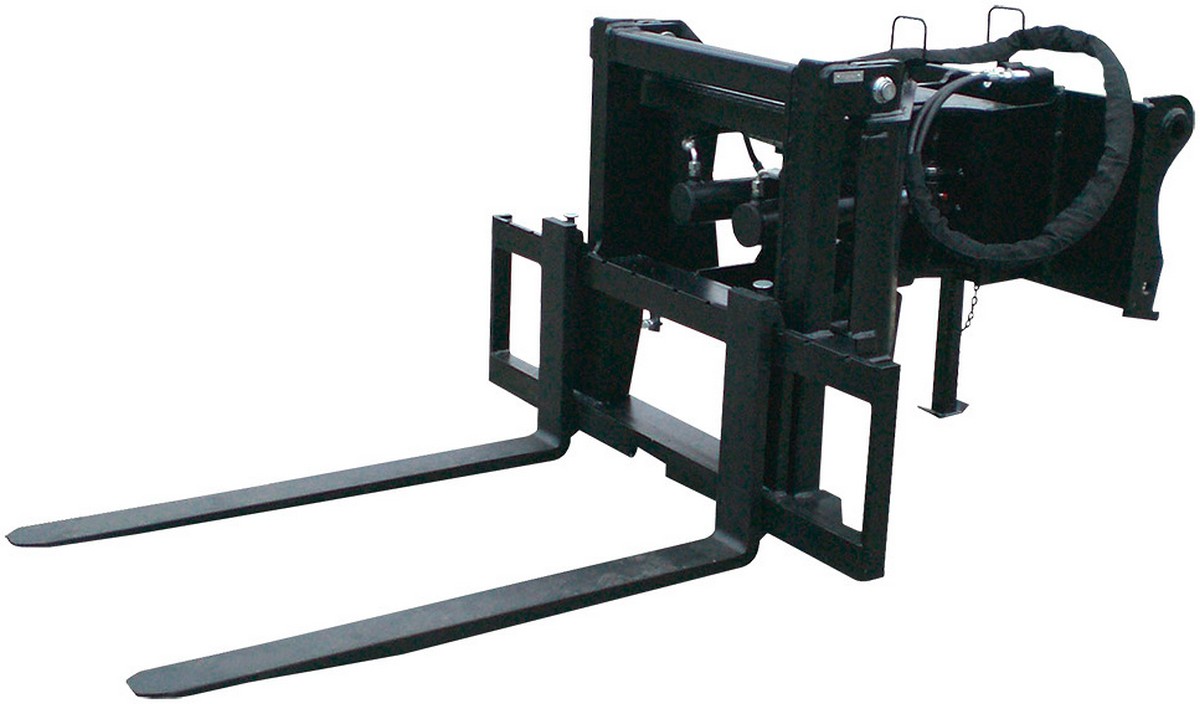

Tilting & Slewing Forks Carriage

Tilting & Slewing Forks Carriage

Tilting & Slewing Forks Carriage

Call for price


Download Technical Sheet ↓

Capacity: from 1000 kg to 1500 kg Width: 1360 mm
Overall weight: from 631 kg to 662 kg Overall length: 2432 mm

The Tilting & Slewing Forks Carriage is engineered for precise handling of loads from 1000 to 1500 kg. Featuring FEM category forks and 90°/90° hydraulic rotation with dual cylinders, it ensures accurate alignment and smooth operation. Built using reliable Manitou components, it delivers stable performance in both straight and rotated positions. With a width of 1360 mm, overall length of 2432 mm, and weight between 631 kg and 662 kg, this carriage provides durability, safety, and efficient handling for construction and industrial applications. Road circulation kit required in Italy.

Categories: ,

TECHNICAL CHARACTERISTICS

  • FEM cat forks. 2.
  • 90°/90° hydraulic rotation.
  • Use of reliable Manitou components.
  • Rotation with 2 cylinders for more precision.
  • Straight and turned capacity 1500 kg / 3308 lb.
  • Note: Road circulation kit mandatory in Italy. Contact your dealer

CUSTOMER BENEFITS

  • Easier handling of long loads in constrained spaces.
  • Reduced machine movements and manoeuvres – less fuel consumption.
  • Recommended for the placement of sandwich panels on roofs (in combination with the cavage of the machine’s carriage).

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
