Wrapped Bale Clamp

Wrapped Bale Clamp
Wrapped Bale Clamp - Image 2
Wrapped Bale Clamp - Image 3

Wrapped Bale Clamp

Call for price


Download Technical Sheet ↓

Capacity: from 800 kg to 1500 kg Width: 1587 mm
Overall weight: from 227 kg to 251 kg Overall height: 810 mm

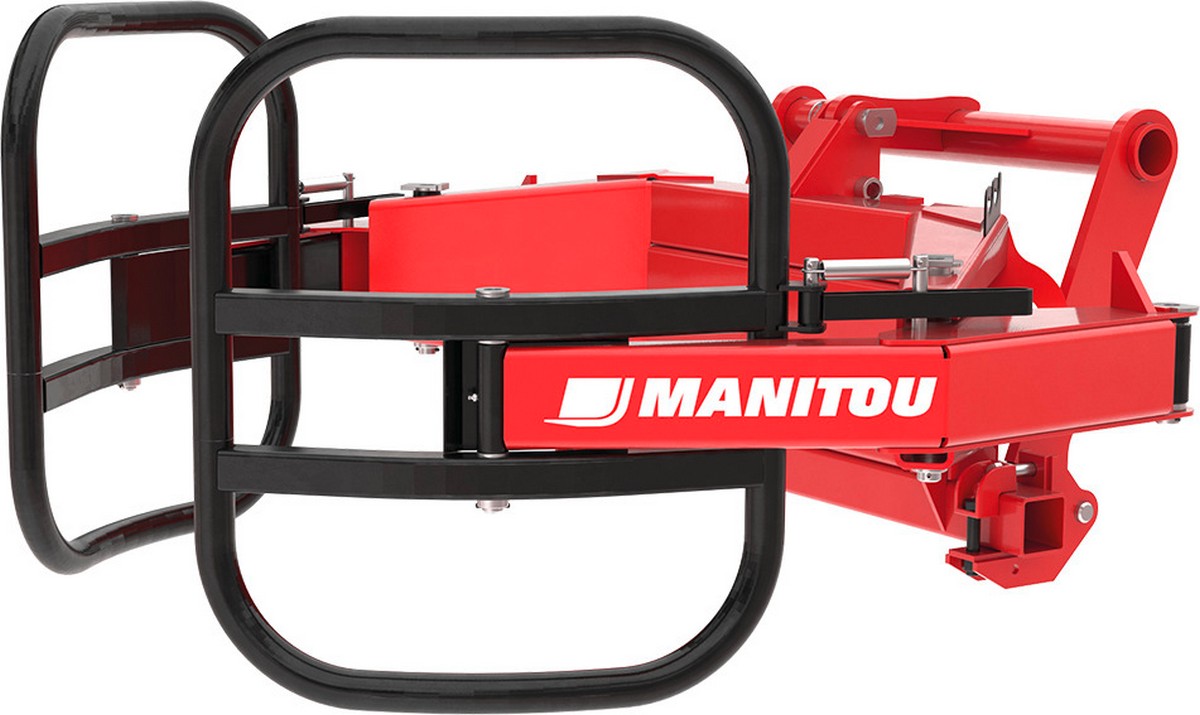

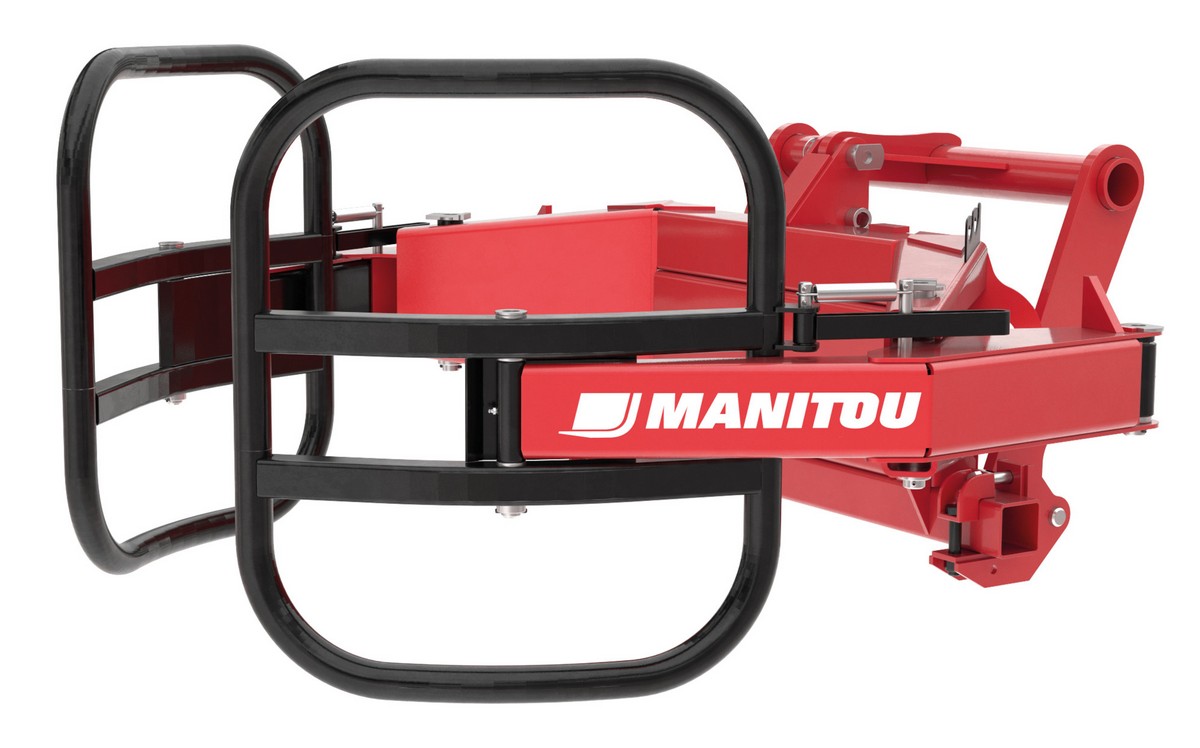

The Wrapped Bale Clamp is designed for reliable handling of wrapped bales with capacities from 800 to 1500 kg. Its welded monobloc chassis and self-lubricated anti-wear ring ensure durability and long-term performance. Capable of handling bales from 0.85 m to 1.7 m in diameter, it provides secure grip while minimizing damage. Lightweight yet robust, with a width of 1587 mm and height of 810 mm, it delivers precise control, safety, and efficiency for daily farm operations handling a variety of bale sizes.

Categories: ,

TECHNICAL CHARACTERISTICS

  • Self-lubricated anti-wear ring that improves the longevity of the attachment.
  • Excellent lifting capacity from 800 kg / 1764 lb up to 1000 kg / 2205 lb.
  • Welded monobloc chassis.
  • CLBW 800: handles wrapped bale with Ø from 0,85 m / 3 ft to 1,45 m / 5 ft.
  • CLBW 1500: handles wrapped bale with Ø from 1 m / 3 ft to 1,7 m / 6 ft.

CUSTOMER BENEFITS

  • Easy to use and competitive attachment.
  • Powerful double effect cylinder allows the manipulation of very heavy bales.
  • Rounded and articulated clamp designed to fit the shape of every bale.
  • Smooth structure that avoids any perforation of plastic film.

COMPATIBILITY

Compatibility depends on machine model, series and configuration.
Please review the official technical documentation before purchase.
