Manitou 180 ATJ CR

Manitou 180 ATJ CR
Manitou 180 ATJ CR - Image 2
Manitou 180 ATJ CR - Image 3
Manitou 180 ATJ CR - Image 4
Manitou 180 ATJ CR - Image 5

Manitou 180 ATJ CR

Call for price


Download Technical Sheet ↓

Working height: 18.18 m Maximum outreach: 10.51 m
Overhang: 7.42 m Platform capacity: 230 kg

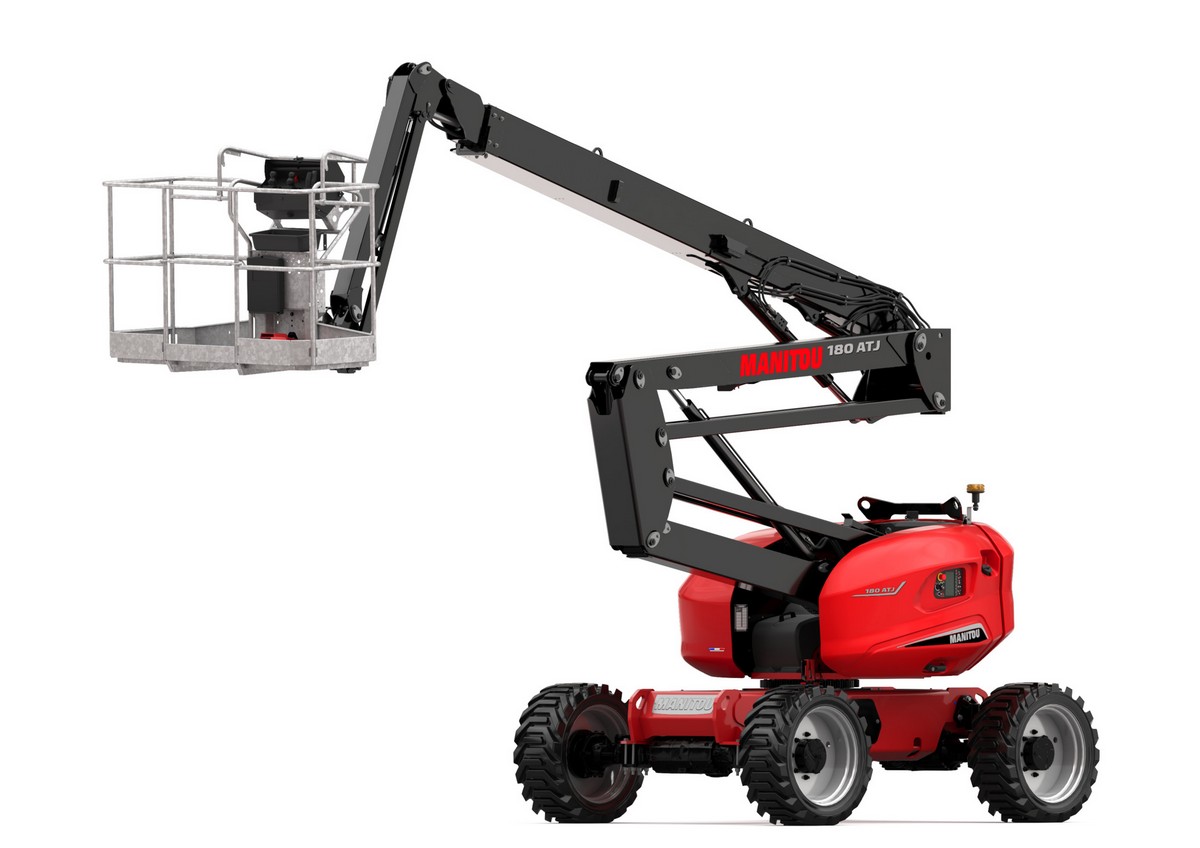

The Manitou 180 ATJ CR is a robust diesel articulated boom lift built for safe and efficient outdoor work at height. Offering an 18.18 m working height, 10.51 m outreach, and 230 kg platform capacity, it ensures precise positioning even in hard-to-reach areas. Its articulated telescopic boom and all-terrain capability provide excellent stability on uneven or muddy ground, delivering reliability and performance in demanding environments.

Category:

Technical Sheet – 180 ATJ CR

Powertrain: Diesel

Max. Capacity 230 kg
Max. Lifting Height 16.18 m
Maximum Outreach 10.51 m
Turret Rotation 360 °
Hydraulic Flow 54 l
Max. Travel Speed 5 km/h
Operating Weight 7430 kg
Standard Tires Foam-filled
Stabilizers Type Oscillating front axle
Transmission 4 wheel drive
Tank Capacities Fuel: 52 l
Engine Brand Kubota – D1105-E4B
Engine Power (Hp / kW) 24.80 Hp / 18.50 kW
Engine Norm / Emission Stage IIIA, Stage V
