Manitou 180 ATJ E

Manitou 180 ATJ E
Manitou 180 ATJ E - Image 2
Manitou 180 ATJ E - Image 3
Manitou 180 ATJ E - Image 4
Manitou 180 ATJ E - Image 5

Manitou 180 ATJ E

Call for price


Download Technical Sheet ↓

Working height: 18.19 m Maximum outreach: 10.33 m
Overhang: 7.43 m Platform capacity: 250 kg

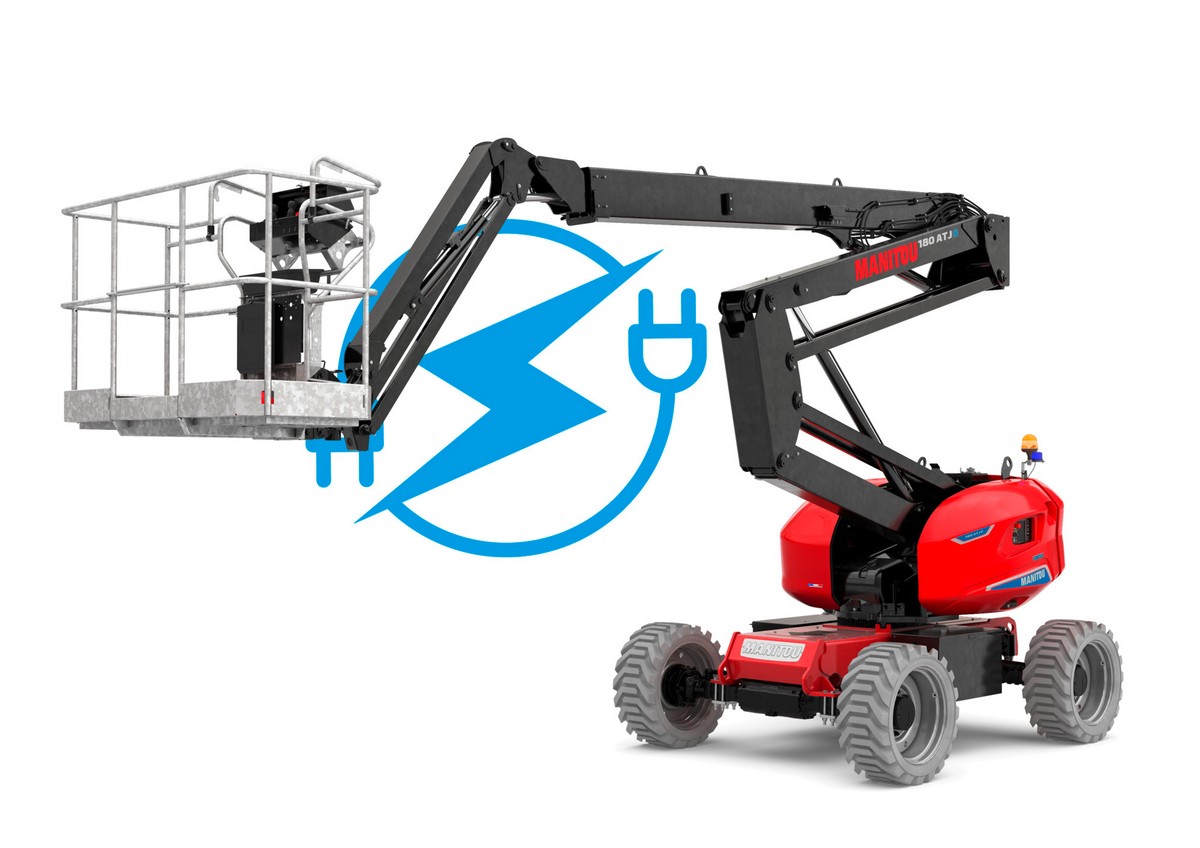

The Manitou 180 ATJ e is a 100% electric articulated boom lift designed for powerful, zero-emission performance. With an 18.19 m working height, 10.33 m outreach, and 250 kg platform capacity, it ensures safe access for demanding tasks. Its 4-wheel drive and steering, high ground clearance, and oscillating axle provide stability on rough terrain, while silent electric operation makes it ideal for both outdoor and indoor applications.

Categories: ,

Technical Sheet – 180 ATJ E

Powertrain: Electric

Max. Capacity 250 kg
Max. Lifting Height 16.19 m
Maximum Outreach 10.33 m
Turret Rotation 350 °
Hydraulic Flow 24 l
Max. Travel Speed 5.30 km/h
Operating Weight 7810 kg
Standard Tires Foam Filled Non Marking
Stabilizers Type Oscillating front axle
Transmission 4 wheel drive
Drive Motor Power (kW) N/A
Battery Technology Lead acid batteries
Battery Energy (kWh) 23 kWh
Battery Nominal Voltage (V) 48 V
