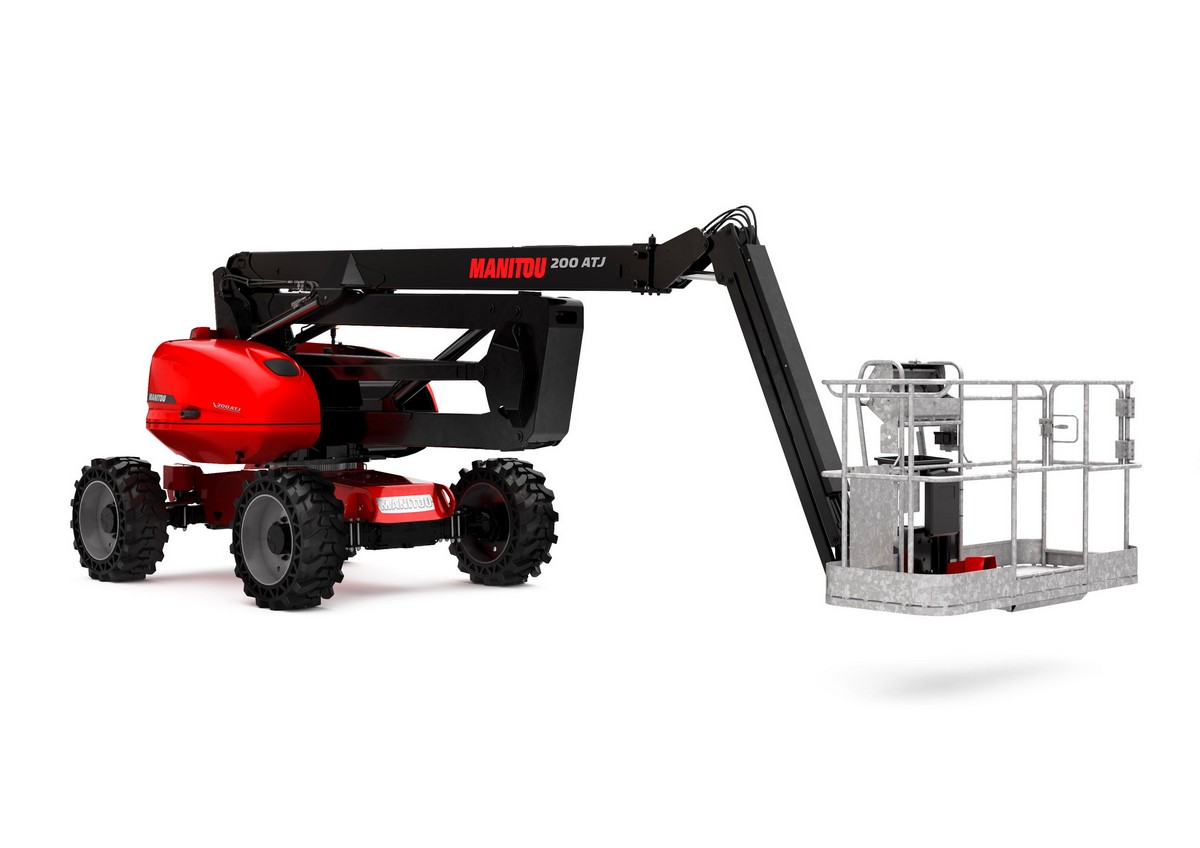

Manitou 200 ATJ ST5

Manitou 200 ATJ ST5
Manitou 200 ATJ ST5 - Image 2

Manitou 200 ATJ ST5

Call for price


Download Technical Sheet ↓

Working height: 20.37 m Maximum outreach: 11.99 m
Overhang: 7.97 m Platform capacity: 230 kg

The Manitou 200 ATJ ST5 is a diesel articulated boom lift engineered for demanding outdoor applications. With a 20.37 m working height, 11.99 m outreach, and 230 kg platform capacity, it provides safe and precise access to elevated areas. Its robust all-terrain chassis ensures stability on uneven ground, while the articulated telescopic boom allows efficient positioning with minimal repositioning, maximizing productivity on site.

Category:

Technical Sheet – 200 ATJ ST5

Powertrain: Diesel

Max. Capacity 230 kg
Max. Lifting Height 18.37 m
Maximum Outreach 11.99 m
Turret Rotation 355 °
Hydraulic Flow 80 l
Max. Travel Speed 4.70 km/h
Operating Weight 10050 kg
Standard Tires Cured-on solid tires
Stabilizers Type Oscillating front axle
Transmission 4 wheel drive
Tank Capacities Fuel: 78.50 l
Engine Brand Yanmar – 3TNV88C-KMU
Engine Power (Hp / kW) 34 Hp / 25.50 kW
Engine Norm / Emission Stage V
