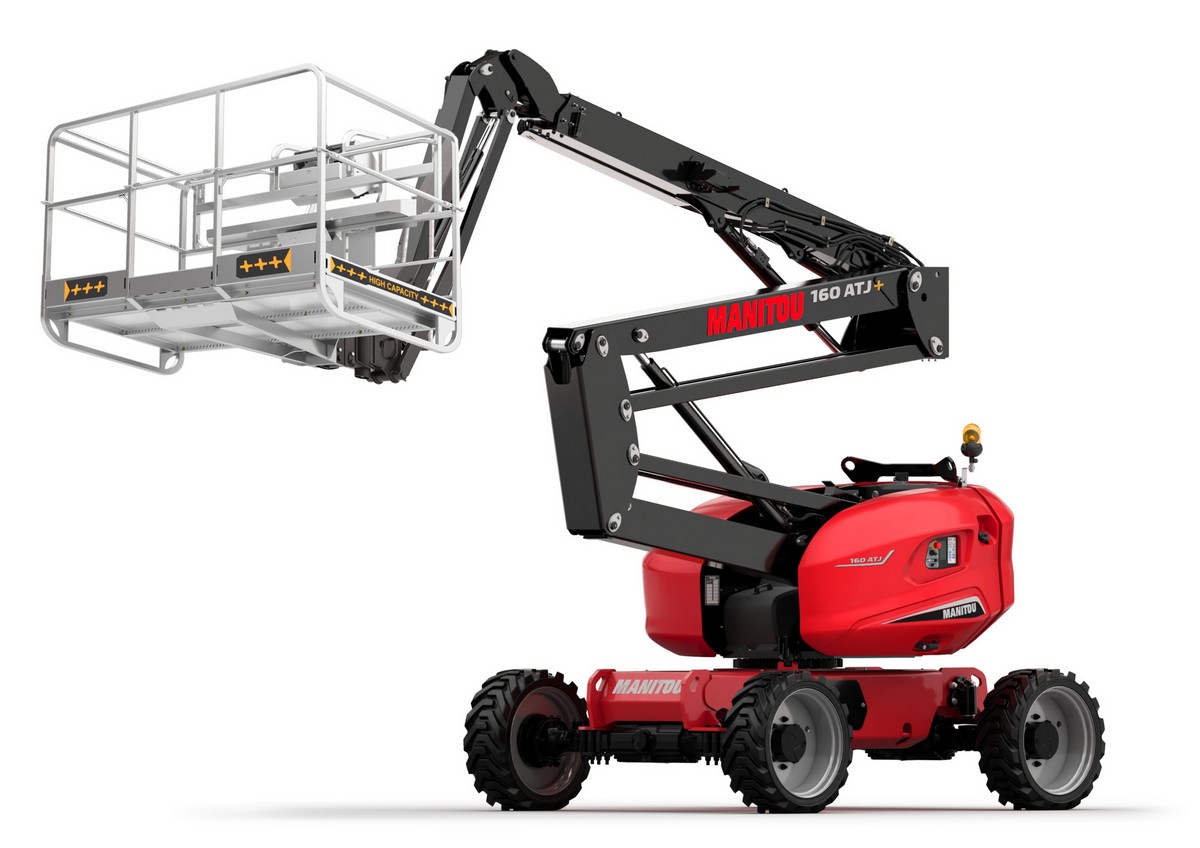

Manitou 160 ATJ+

Manitou 160 ATJ+

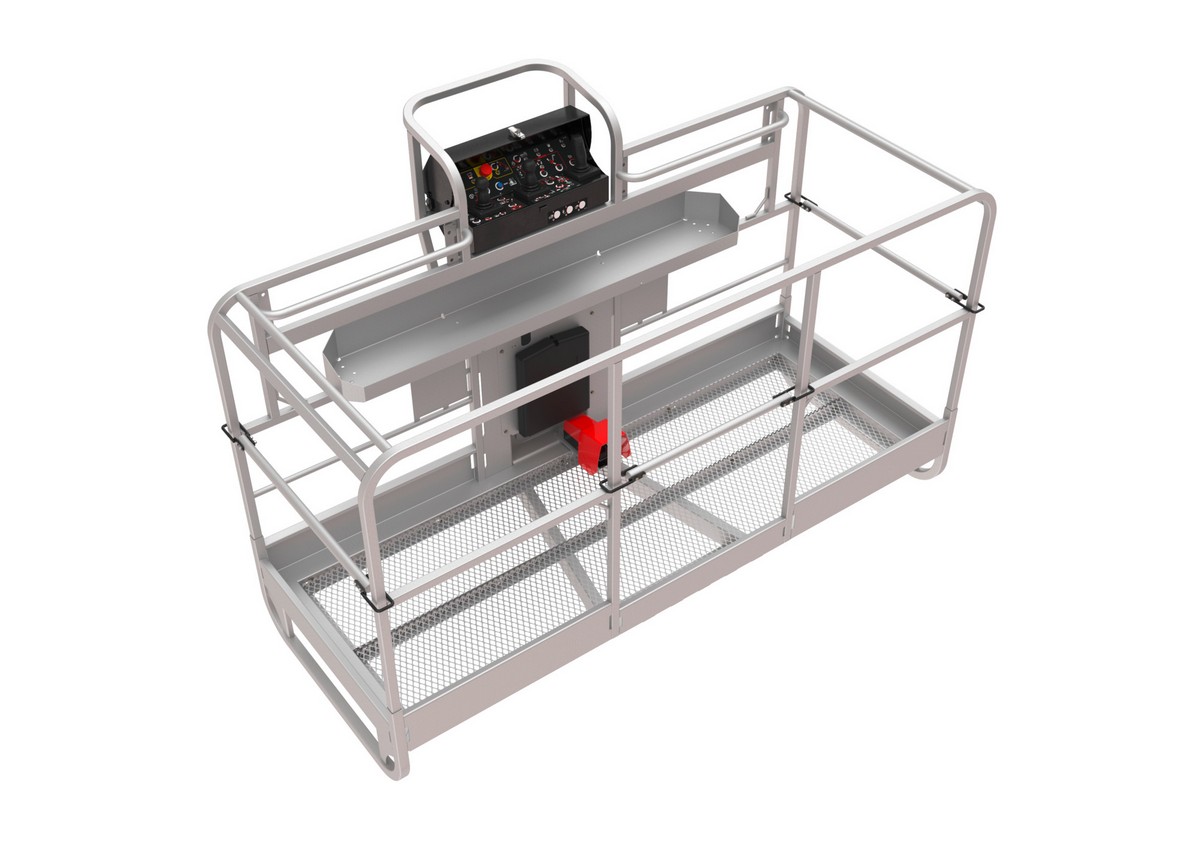

Manitou 160 ATJ+ - Image 2

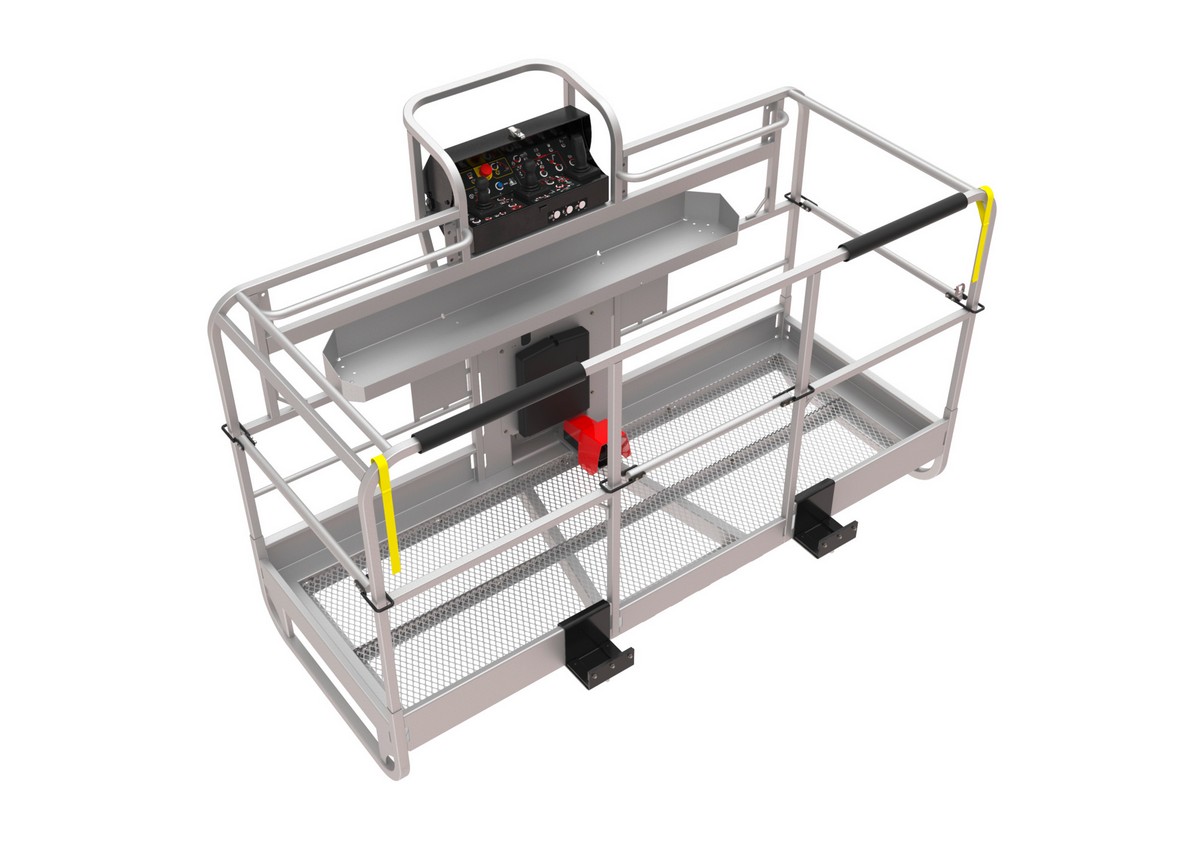

Manitou 160 ATJ+ - Image 3

Manitou 160 ATJ+

Call for price


Download Technical Sheet ↓

Working height: 16.21 m Maximum outreach: 8.52 m
Overhang: 7.39 m Platform capacity: 408 kg

The Manitou 160 ATJ+ is a high-capacity diesel boom lift designed for demanding outdoor applications. With a 16.21 m working height, 8.52 m outreach, and an impressive 408 kg platform capacity, it safely accommodates up to three operators. Built for all-terrain performance, it operates efficiently on uneven and rough ground. Intuitive controls and advanced safety systems ensure precision, productivity, and reliability on construction and maintenance sites.

Category:

Technical Sheet – 160 ATJ+

Powertrain: Diesel

Max. Capacity 408 kg
Maximum Outreach 8.52 m
Turret Rotation 350 °
Max. Travel Speed 5 km/h
Operating Weight 7500 kg
Standard Tires 914 x 370 mm
Tank Capacities Fuel: 52 l
Engine Brand Kubota – D1105-E4B
Engine Power (Hp / kW) 24.80 Hp / 18.50 kW
Engine Norm / Emission Stage IIIA, Stage V

Reviews

There are no reviews yet.

Be the first to review “Manitou 160 ATJ+”
