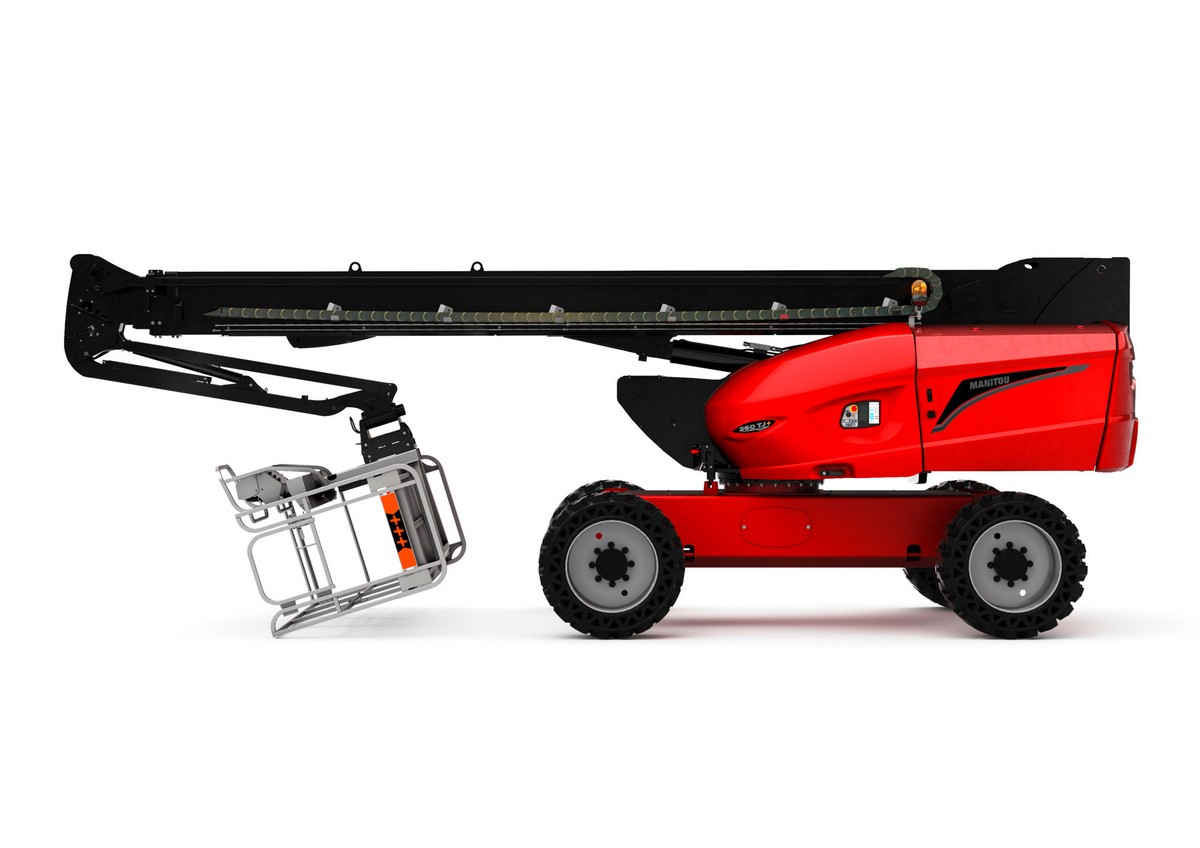

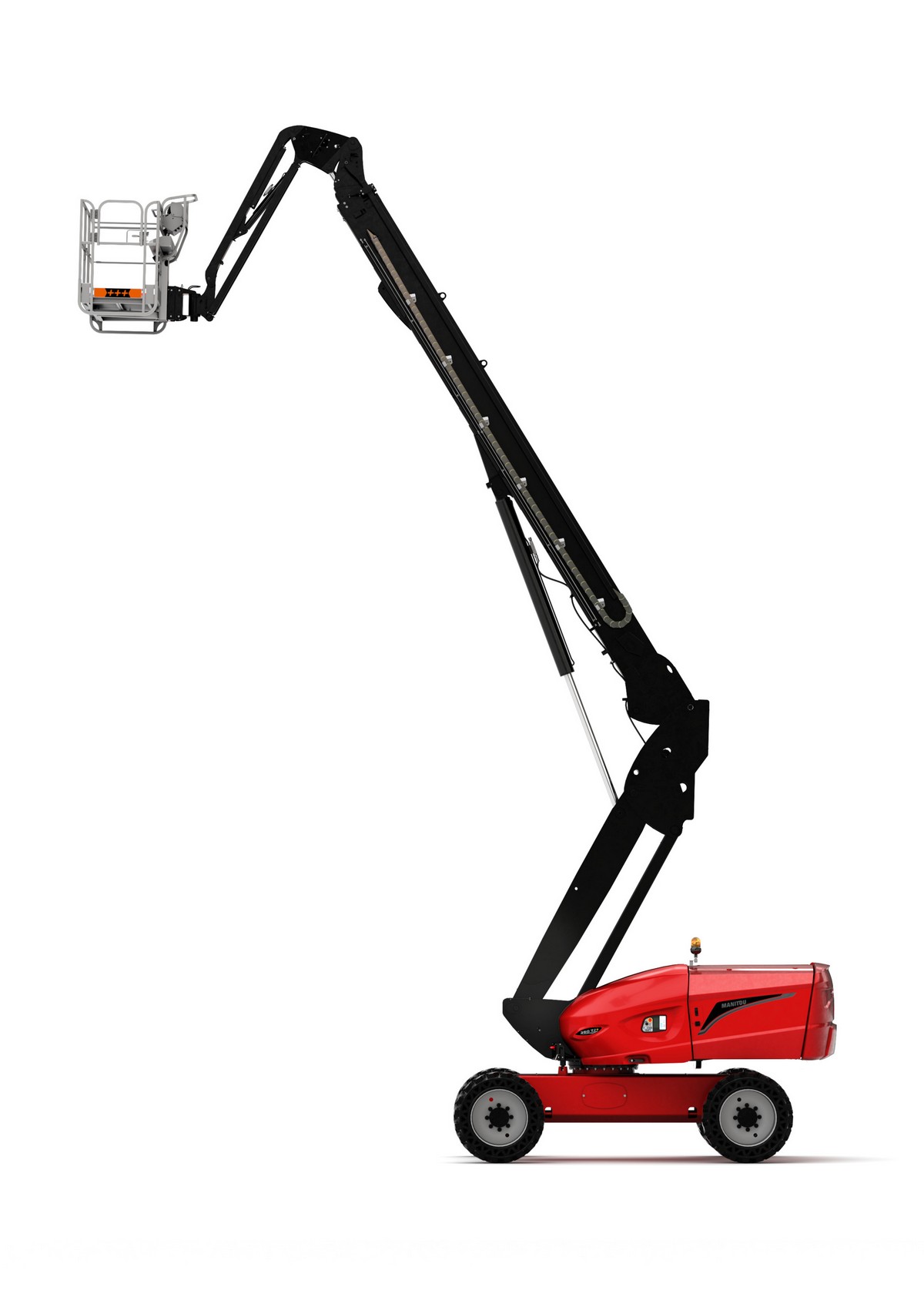

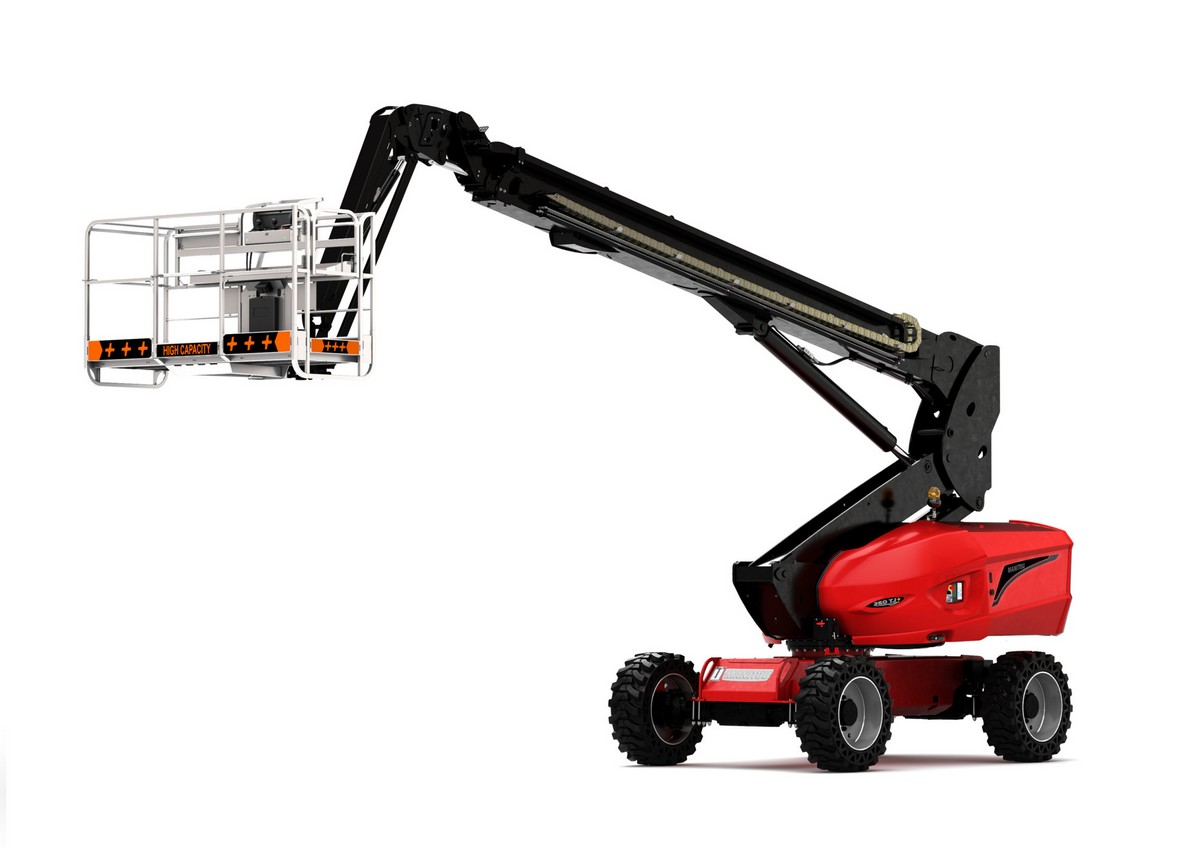

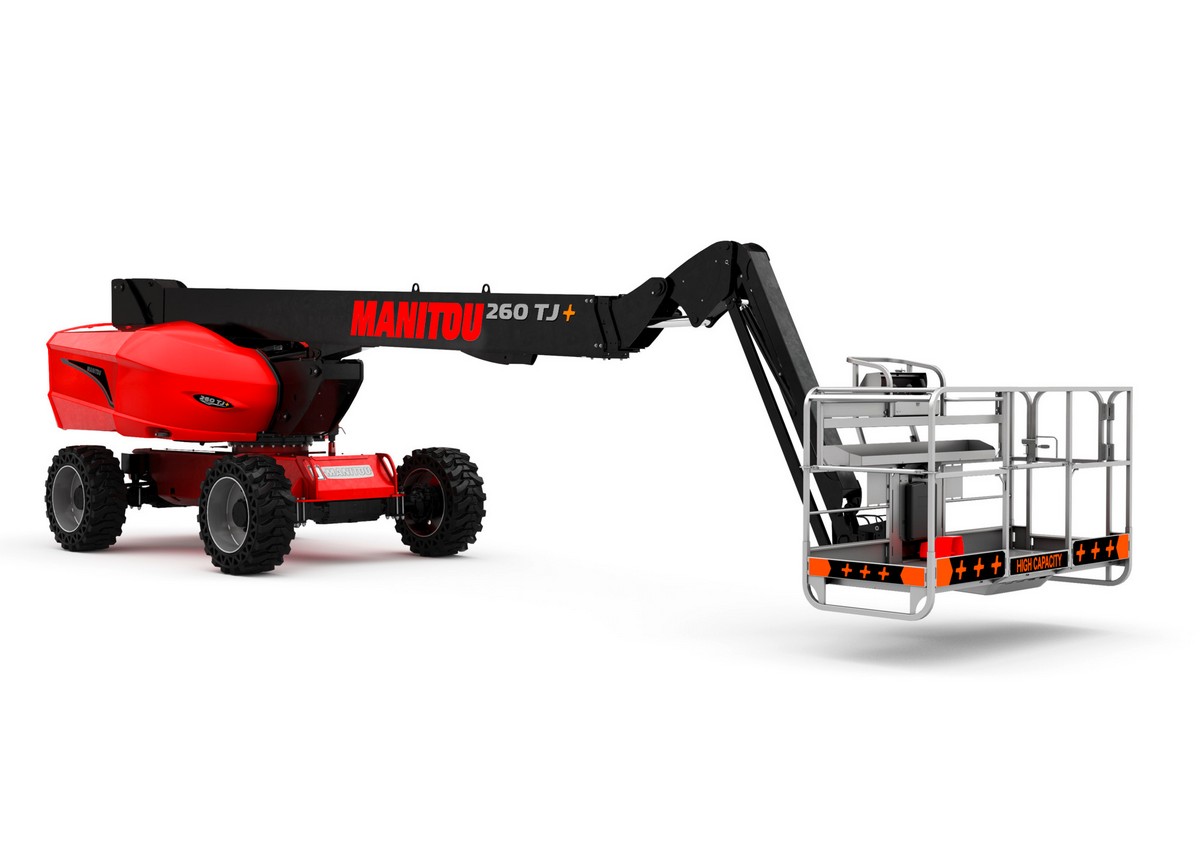

Manitou 260 TJ+ ST5

Manitou 260 TJ+ ST5
Manitou 260 TJ+ ST5 - Image 2
Manitou 260 TJ+ ST5 - Image 3
Manitou 260 TJ+ ST5 - Image 4
Manitou 260 TJ+ ST5 - Image 5

Manitou 260 TJ+ ST5

Call for price


Download Technical Sheet ↓

Working height: 25.89 m Maximum outreach: 19.70 m

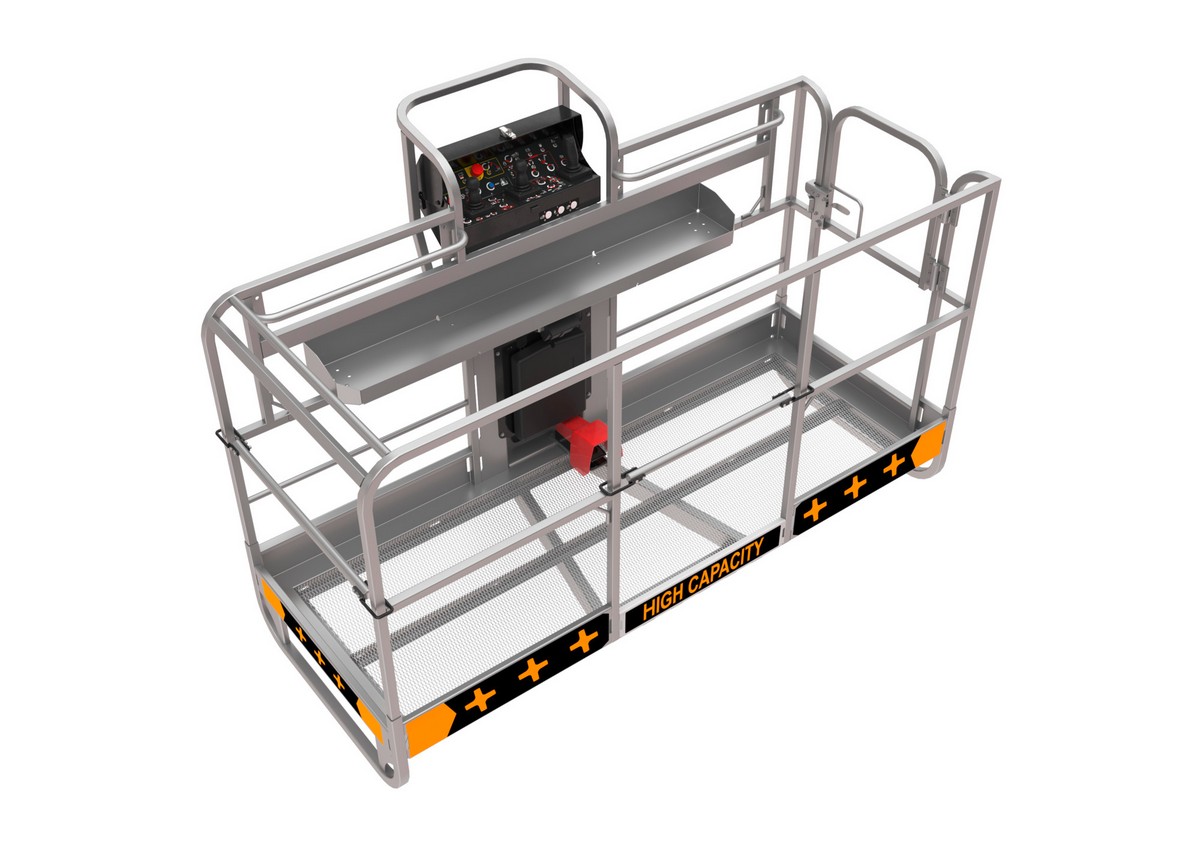

Steering wheels (front): 2 Platform capacity: 408 kg

The Manitou 260 TJ+ ST5 is a high-performance all-terrain telescopic boom lift designed for maximum reach and productivity. With a 25.89 m working height and 19.70 m outreach, it provides exceptional access for demanding tasks. The 408 kg platform capacity safely accommodates up to three operators. Built for tough environments, it combines robust construction, stability, and efficiency for construction and industrial applications.

Category:

Technical Sheet – 260 TJ+ ST5

Powertrain: Diesel

Max. Capacity 408 kg
Max. Lifting Height 23.89 m
Maximum Outreach 19.70 m
Turret Rotation 360 °
Hydraulic Flow 94 l
Max. Travel Speed 4.50 km/h
Operating Weight 16710 kg
Standard Tires Solid tires
Stabilizers Type Oscillating front axle
Transmission 4 wheel drive
Tank Capacities Fuel: 76 l
Engine Brand Yanmar – 4TNV88C
Engine Power (Hp / kW) 46 Hp / 34.30 kW
Engine Norm / Emission Stage V
