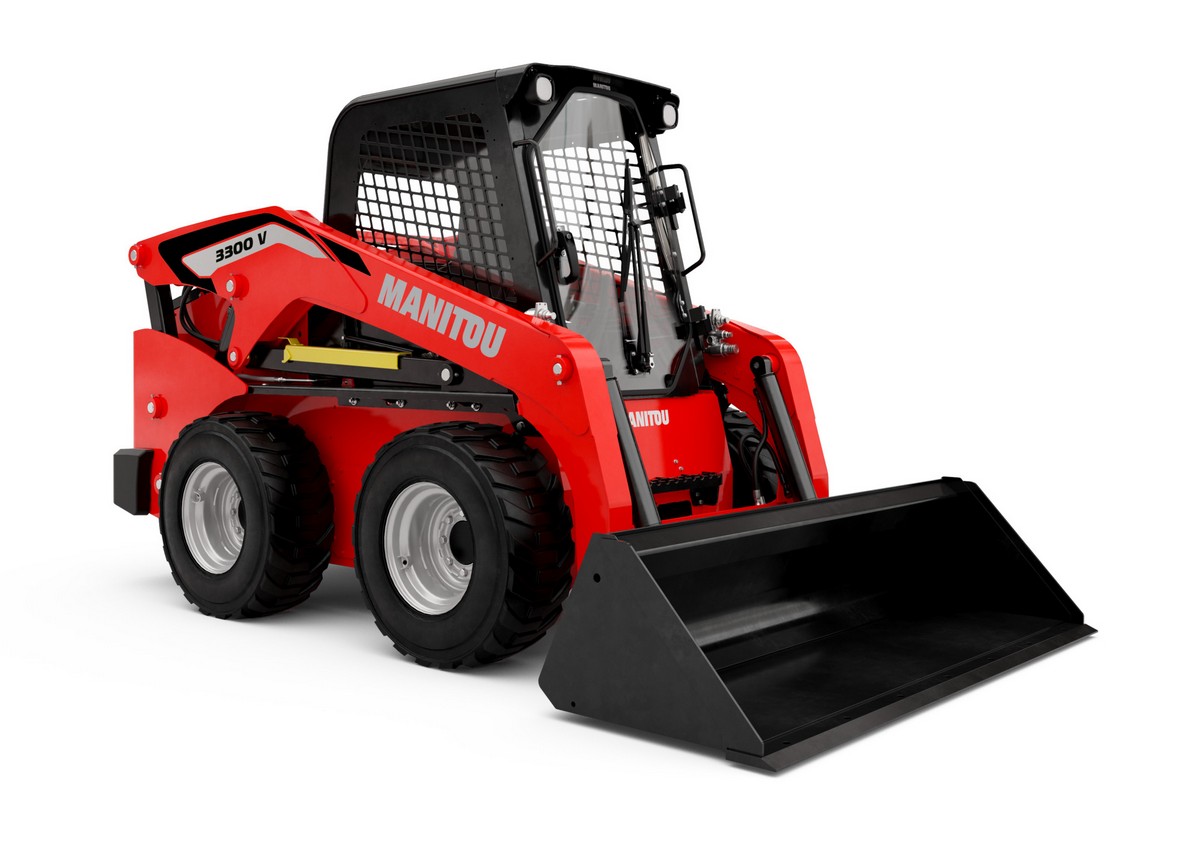

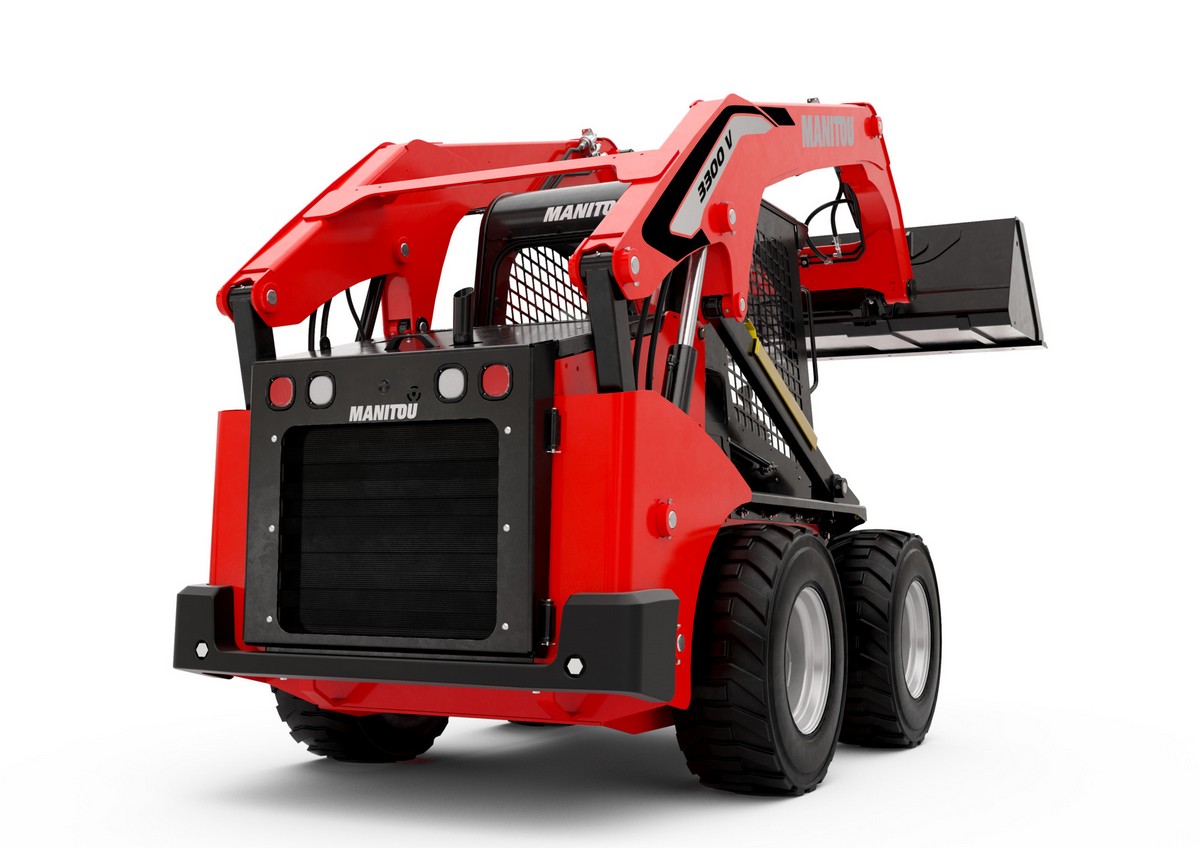

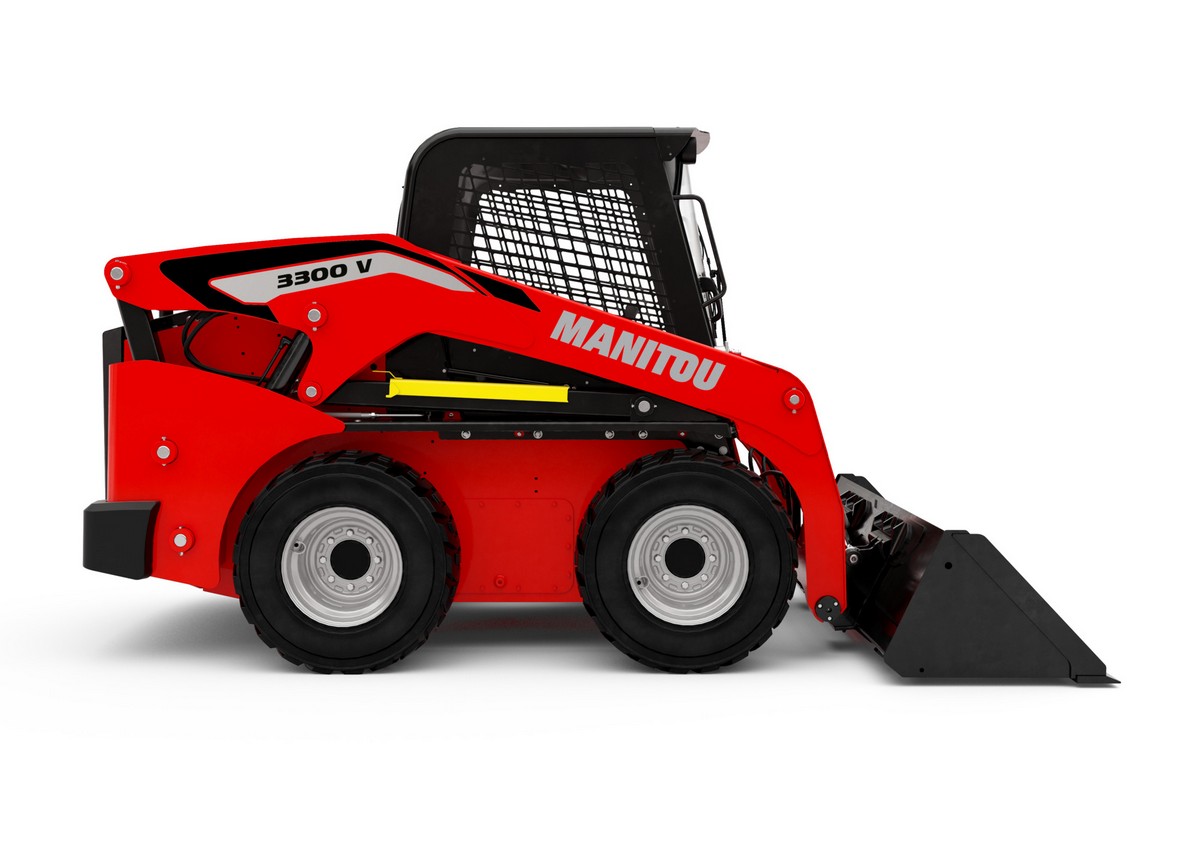

Manitou 3300V NXT2

Manitou 3300V NXT2
Manitou 3300V NXT2 - Image 2
Manitou 3300V NXT2 - Image 3
Manitou 3300V NXT2 - Image 4
Manitou 3300V NXT2 - Image 5

Manitou 3300V NXT2

Call for price


Download Technical Sheet ↓

Rated Operating Capacity: 1497 kg Overall Operating Height – Fully Raised: 4369 mm
Dump reach – Full height: 813 mm Overall length with bucket: 3874 mm

The 3300V NXT2 compact loader delivers outstanding lifting power with a rated operating capacity of 1,497 kg and a maximum working height of 4,369 mm. Its 813 mm dump reach ensures efficient truck loading, while the 3,874 mm overall length provides stability and control. Powered by a reliable Yanmar engine, it is built for grading, excavation and heavy-duty loading on uneven terrain, offering excellent visibility and operator comfort.

Category:

Technical Sheet – 3300V NXT2

Powertrain: Diesel

Max. Capacity 1497 kg
Max. Lifting Height 3332 mm
Hydraulic Flow 89.10 l/min
Max. Travel Speed 13 km/h
Operating Weight 4087 kg
Standard Tires 14.00 x 17.5 HD
Transmission Hydrostatic
Tank Capacities Fuel: 92.70 l
Engine Brand Yanmar
Engine Power (Hp / kW) 72 Hp / 52.70 kW
Engine Norm / Emission Stage V

ROPS-FOPS Level 2 cab certification ensures operator protection in case of machine rollover (ROPS) and against falling heavy objects on construction sites (FOPS Level 2).
