Technical Sheet – 3600VT
Powertrain: Diesel
| Max. Capacity | 2332 kg |
| Hydraulic Flow | 151.40 l/min |
| Max. Travel Speed | 14.80 km/h |
| Operating Weight | 5516 kg |
| Tank Capacities | Fuel: 143.80 l |
| Engine Brand | Deutz |
| Engine Power (Hp / kW) | 114 Hp / 85 kW |

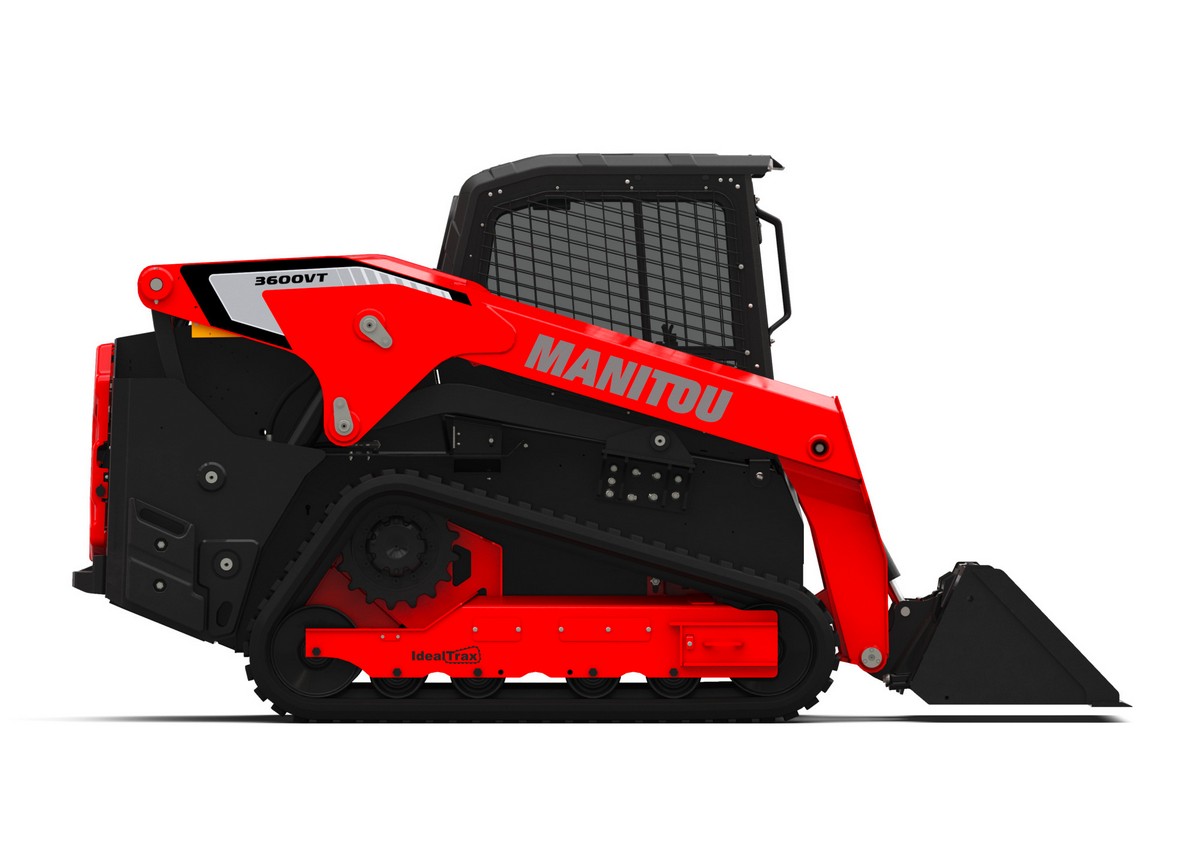

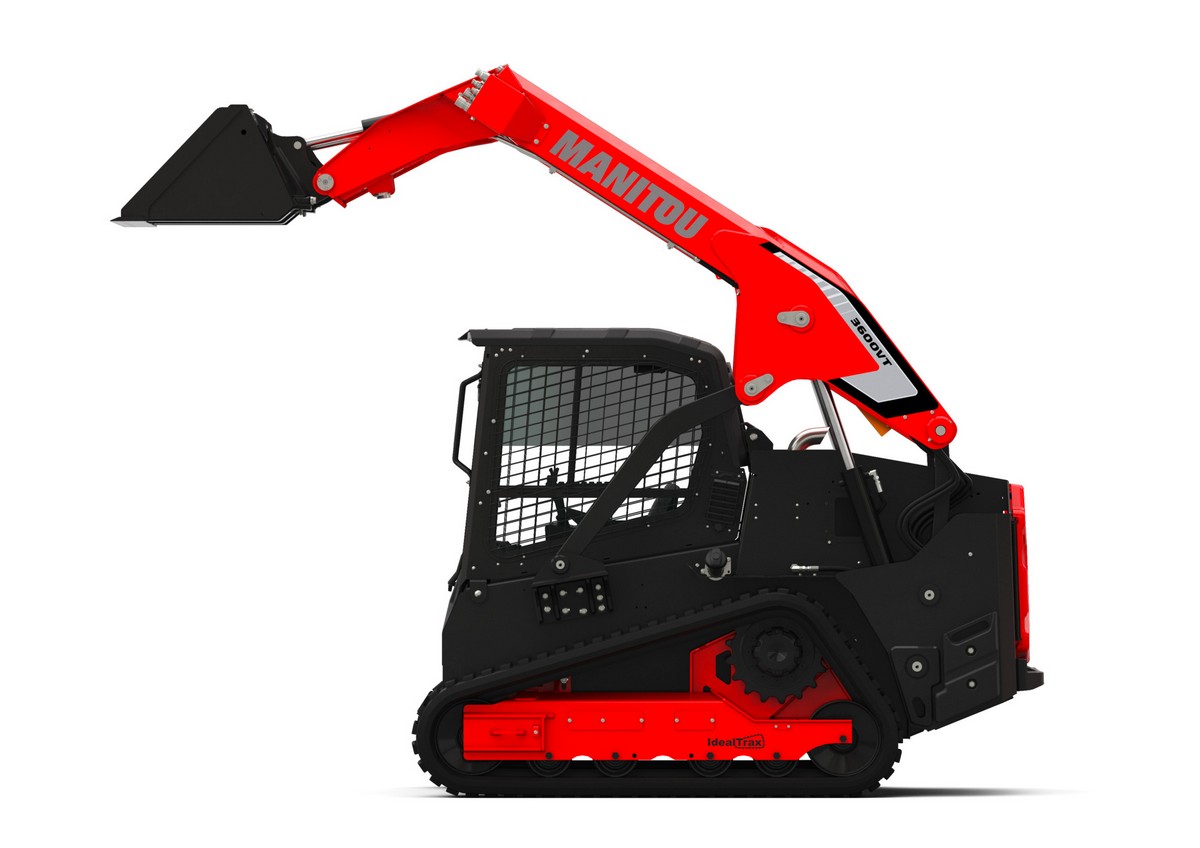

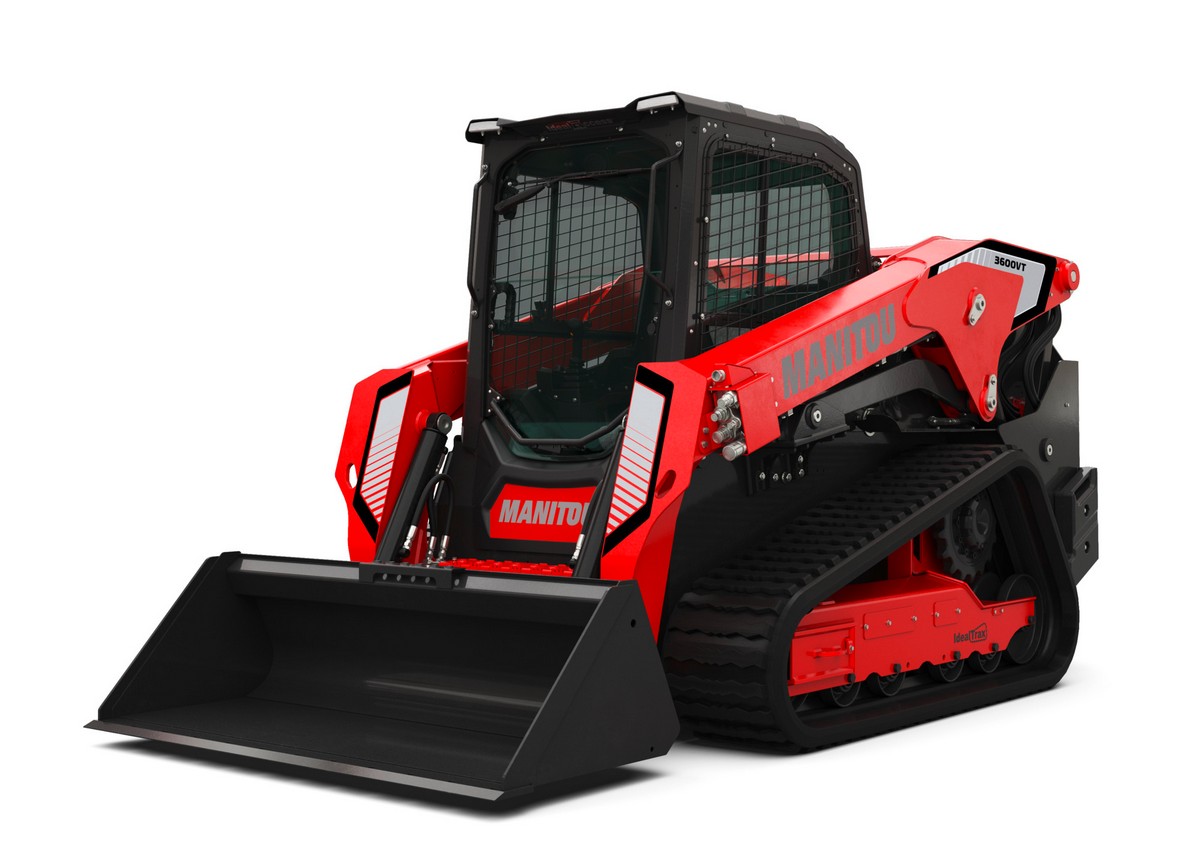

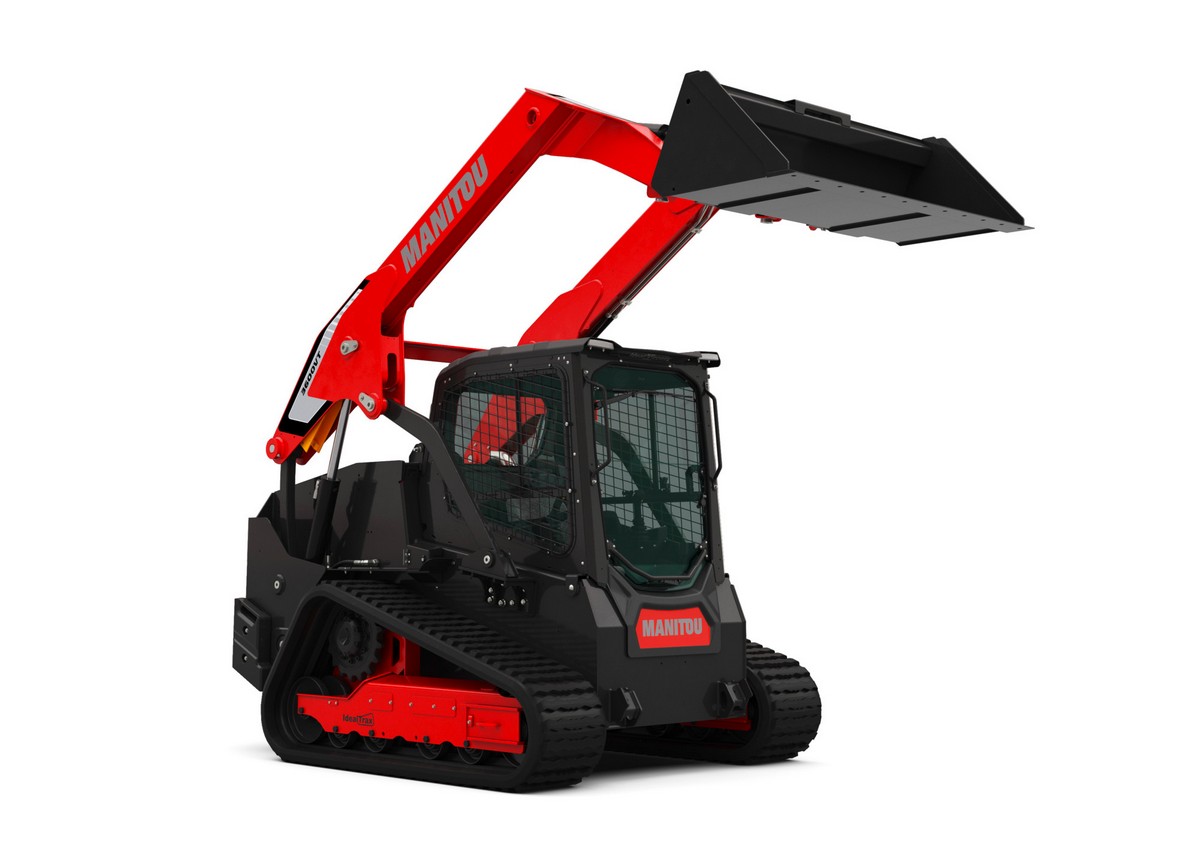

Manitou 3600VT
| Overall Operating Height – Fully Raised: 4422 mm | Overall length with bucket: 3968 mm |
| Overall width less bucket: 2032 mm | Engine power (kW): 85 kW |
The 3600VT compact track loader delivers outstanding performance with a maximum operating height of 4,422 mm and a powerful 85 kW engine. Its 3,968 mm length and 2,032 mm width provide exceptional stability and traction on demanding terrain. Built for heavy-duty construction and agricultural tasks, it offers strong lifting capability, precise control and a spacious cab for operator comfort, while easy maintenance access helps reduce downtime.
