Manitou ME 420

Manitou ME 420

Manitou ME 420

Call for price


Download Technical Sheet ↓

Max. lifting height: 6500 mm Max. capacity: 2000 kg
Turning radius: 2090 mm Load center of gravity: 500 mm

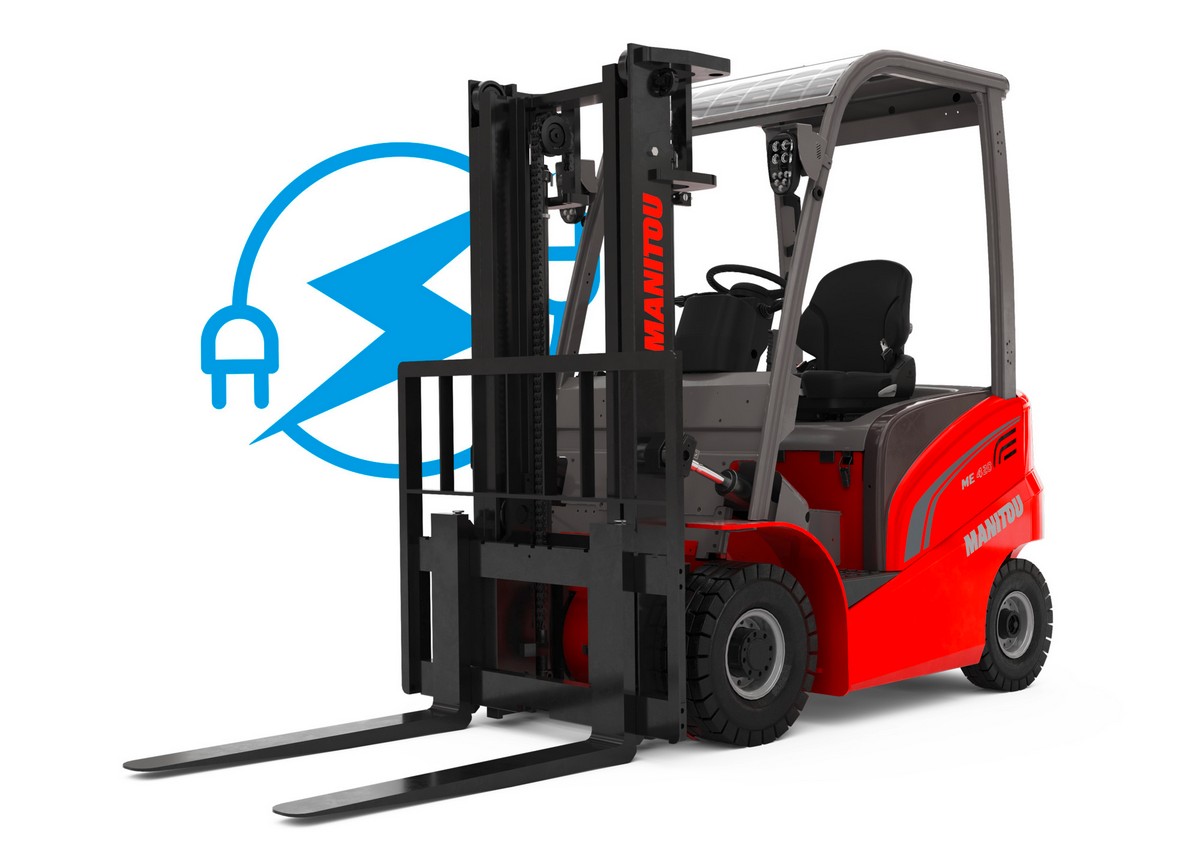

The ME 420 electric forklift delivers strong and consistent performance with a 2,000 kg lifting capacity and up to 6.5 m lift height. Designed for warehouses, production facilities and logistics platforms, it combines durability with smooth maneuverability, supported by a 2,090 mm turning radius. The ergonomic cab enhances operator comfort and safety, while customizable options allow you to adapt the ME 420 to your specific operational requirements.

Categories: ,

Technical Sheet – ME 420

Powertrain: Electric

Max. Capacity 2000 kg
Max. Lifting Height 6500 mm
Hydraulic Flow 35 l/min
Max. Travel Speed 14 km/h
Operating Weight 4000 kg
Standard Tires Solid tires
Transmission Electronic
Drive Motor Power (kW) 11 kW
Battery Technology Lead
Battery Nominal Voltage (V) 48 V
